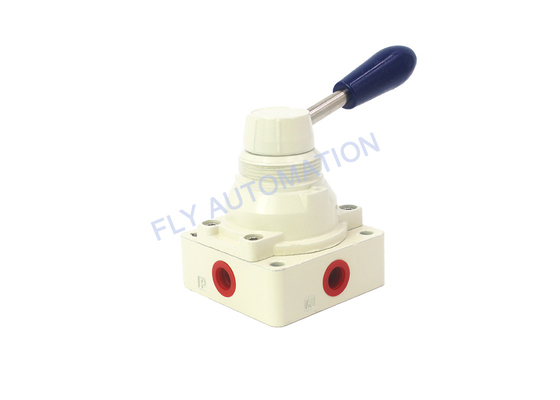

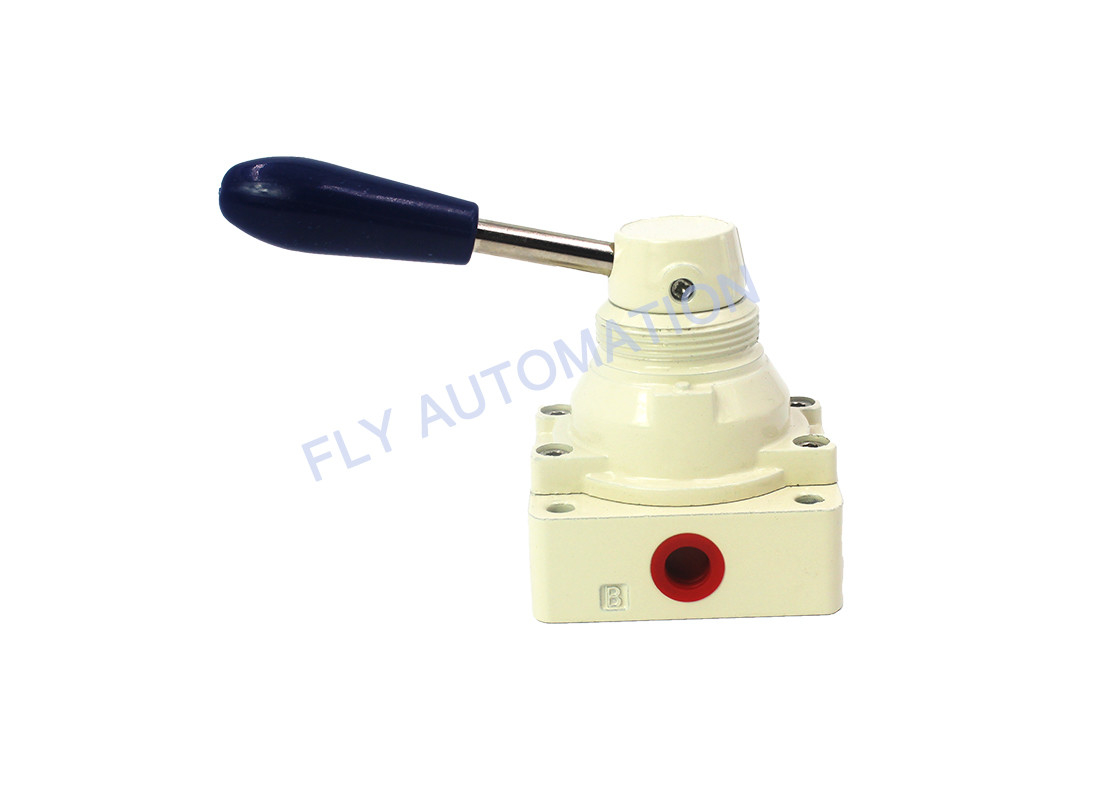

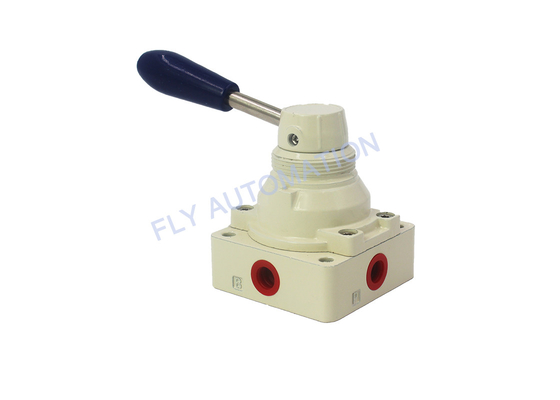

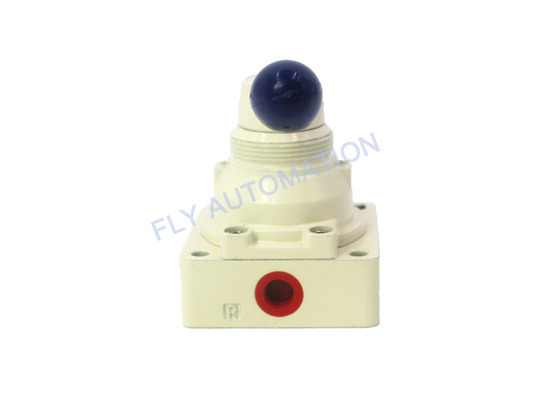

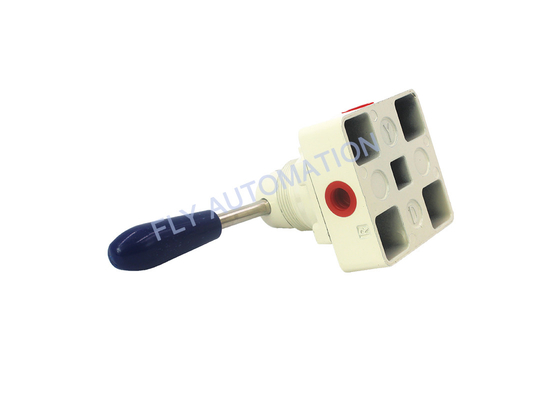

AIRTAC 4HV230-08 1/4'' PT Air Flow Control 3 Position 4 Way Air Flow Control Pneumatic Air Hand Lever Valve
4 port 3 position only has closed center type
The panel installation can be attached with installing nut
Specification
Model 4HV 2XX-06 2XX-08 3XX-08 3XX-10 4XX-15 4XX-20
Fluid Air
Operating Manual control direct acting type
Port Size 1/8" 1/4" 1/4" 3/8" 1/2" 3/4"
Orifice Size 14.0mm²
Cv=0.78 16.0mm²
Cv=0.89 30.0mm²
Cv=1.67 33.0mm²
Cv=1.83 88.0mm²
Cv=4.89 95.0mm²
Cv=5.27
Valve Type 4/2 Way 4/3 Way
Lubrication Not Required
Pressure Range 0~1.0MPa(0~145psi)
Proof Pressure 1.5MPa(215psi)
Temperature —20~70
Operating angle 90degree(4/3 45degree)
Material Body Aluminum alloy
◊ XX means 10 or 30
◊ PT thread ,NPT thread,and G thread are available |
Description
1. Airtac hand lever valve for pneumatic directional control.
2. 4-port (4-way), 3-position, 2-position, detented spool valve style, body ported or optional manifold mounting.
3. Large effective circulating area leads to little pressure loss
4. The direction-change turns lightly with good hand feeling and exact orientation.
5. Panel and body installation are optional. The panel installation can be attached with installing nut.
6. Internal hole adopts special processing technology which has little attrition friction, long service life.
7. No need to add oil for lubrication.
8. Panel-mounting makes it convenient to install and apply.
