Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
Place of Origin: | CHINA |
Brand Name: | AIRWOLF |
Certification: | CE |
Model Number: | 2W250-25 |
Minimum Order Quantity: | 1 PCS |
---|---|
Price: | Negotiation |
Packaging Details: | Plastic bags, boxes, cartons, Pallets or As customer's requirement |
Delivery Time: | 1-7 work days |
Payment Terms: | Western Union, T/T, L/C, Paypal, Credit card |
Supply Ability: | 2000 pieces per 10 working days |
Material: | Brass | Medium: | Air Water |
---|---|---|---|
Type: | Normally Closed | Size: | 1inch |
Highlight: | 2/2 Way Water Solenoid Valves,DC24V Water Solenoid Valves,2W250-25 |

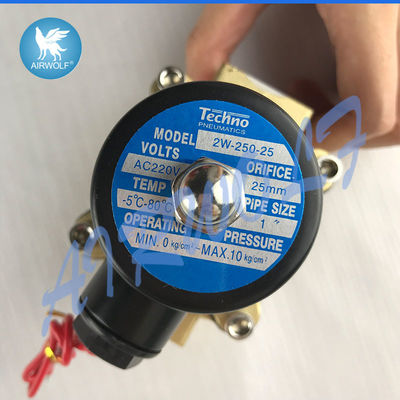

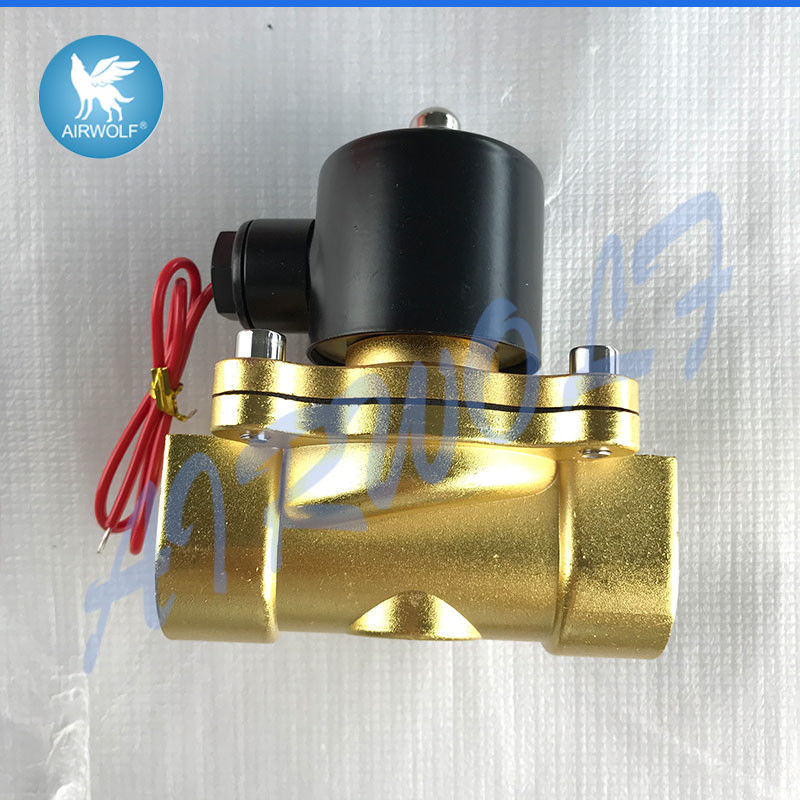

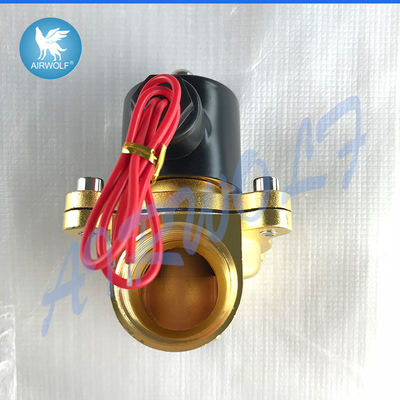

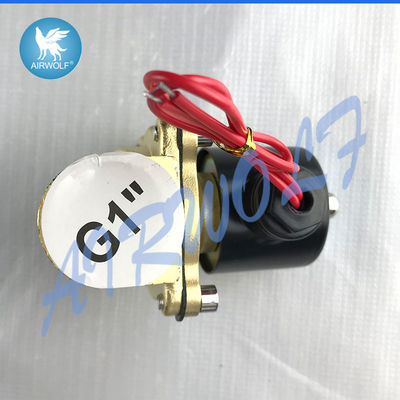

2W250-25 2/2 Way AC220vDC24V Direct Acting Air Water Solenoid Valve
2W series small oriffice Fluid Control Valve, also known zero-pressure solenoid valve, the initial state for normally closed,normally open only available for below 3/8", thread size range from 1/8" to 3/8", Din connector type and flying leads type,anti-explosion and anti-water coil are available. With the stalbe quality and wide application, 2W valve is popular with customers, especially in the water treatment system, the 2W valve is used widely.
2W Series 2/2 way Direct Acting Solenoid Valve | ||||||||||||
Model | 2W160-10 | 2W160-15 | 2W200-20 | 2W250-25 | 2W350-35 | 2W400-40 | 2W500-50 | |||||
Medium | Air,Water,Oil,Gas | |||||||||||
Operation | Direct Acting | |||||||||||
Type | Normal Close | |||||||||||
Orifice Size(mm) | 16mm | 20mm | 25mm | 35mm | 40mm | 50mm | ||||||
CV Value | 4.8 | 7.6 | 12 | 24 | 29 | 48 | ||||||
Port Size | G3/8" | G1/2" | G3/4" | G1 " | G1 1/4" | G1 1/2" | G2" | |||||
Operation Fluid Viscosity | Below 20 CST | |||||||||||
Operating Pressure | Air,0~0.7MPA Water,0~0.5MPA Oil,Gas:0~0.5Mpa | |||||||||||
Max Pressure Resistance | 1.0MPa | |||||||||||
Operating Temperature | NBR for -5~80°C and fluororubber for -5~80°C | |||||||||||
Voltage Range | ±10% | |||||||||||
Material of Body | Stainless Steel or Brass | |||||||||||
Material of Oil Seal | NBR,fluororubber |
Materials:
PARTS | MATERIAL |
Body | Cast Bronze/ Forge Brass/Zinc Alloy |
Coil | Special Copper Wire (H) |
Core | Stainless Steel |
Tube | Stainless Steel |
Spring | Stainless Steel |
Plug | NBR.fluororubber .Silicon, PTFE |
Diaphragm | NBR.fluororubber .Silicon |
