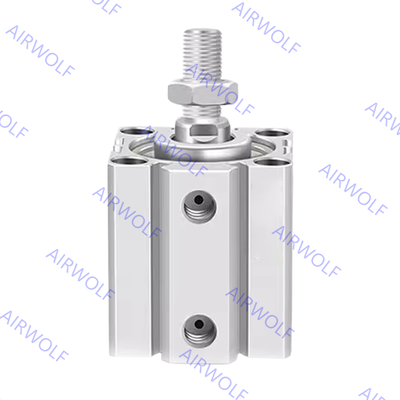

MCJA-11-25-15 MCJA-11-25-20 MCJA-11-25-25 MCJA-11-25-30 Mindman Double acting Compact Cylinder

quality MCJA-11-25-15 MCJA-11-25-20 MCJA-11-25-25 MCJA-11-25-30 Mindman Double acting Compact Cylinder factory
quality MCJA-11-25-15 MCJA-11-25-20 MCJA-11-25-25 MCJA-11-25-30 Mindman Double acting Compact Cylinder factory

Basic Properties

Place of Origin:Taiwan, China
Brand Name:Mindman, AIRWOLF or OEM
Certification:CE, ISO9001
Model Number:MCJA-11-25-15, MCJA-11-25-20, MCJA-11-25-25, MCJA-11-25-30

Trading Properties

Minimum Order Quantity:1 piece
Price:5-63USD
Standard Packaging:Boxes, Cartons, Pallets, Plastic bags
Delivery Time:1-7 work days
Payment Terms:T/T,Western Union,Paypal
Supply Ability:1000 pcs per week
Specifications
Item Code: MCJA-11-25-15, MCJA-11-25-20, MCJA-11-25-25, MCJA-11-25-30 Body Material: Aluminum Alloy
Piston Packing Material: NBR Working Pressure: 0.05~1MPa
Operating Temperature: -5~+60℃(No Freezing) Working Medium: Air
Bore Size: 25mm Function: Double Acting
Highlight

Mindman double acting compact cylinder

,

Pneumatic air cylinder with warranty

,

Compact cylinder MCJA-11-25 series
Product Description

MCJA-11-25-15 MCJA-11-25-20 MCJA-11-25-25 MCJA-11-25-30 Mindman Double acting Compact Cylinder

On the functional side, the series is designed for smooth, repeatable strokes with a wide usable speed window and stable output across low-to-moderate pressure ranges, and the double-acting versions can be specified for applications that need controlled advance and return force rather than spring return. The combination of a rigid anodized barrel, clean sensor integration, and a bore range that scales from small jig cylinders up to 100 mm means the same MCJA platform can serve both delicate positioning tasks and heavier clamping/push-off duties on the same machine.


Order Codes:

Item Code Piston (mm) Stroke (mm) Type
MCJA-11-25-15 25 15 Double acting
MCJA-11-25-20 25 20 Double acting
MCJA-11-25-25 25 25 Double acting
MCJA-11-25-30 25 30 Double acting


Specification:

Model MCJA
Acting type Double acting / Single acting Double acting
Tube I.D. (mm) 12 16 20 25 32 40 50 63 80 100
Port size M5×0.8 Rc1/8 Rc1/4 Rc3/8
Medium Air
Operatingperssurerange (MPa) Double acting 0.05~1 0.03~1 0.02~1
Single acting 0.2~1 0.15~1 0.1~1 —
Proof pressure 1.5 MPa
Ambient temperature -5°C~+60°C (No freezing)
Available speed range 50~500 mm/sec


Material:

MCJA-11-25-15 MCJA-11-25-20 MCJA-11-25-25 MCJA-11-25-30 Mindman Double acting Compact Cylinder

 MCJA-11-25-15 MCJA-11-25-20 MCJA-11-25-25 MCJA-11-25-30 Mindman Double acting Compact Cylinder

MCJA-11-25-15 MCJA-11-25-20 MCJA-11-25-25 MCJA-11-25-30 Mindman Double acting Compact Cylinder


Dimensions:

MCJA-11-25-15 MCJA-11-25-20 MCJA-11-25-25 MCJA-11-25-30 Mindman Double acting Compact Cylinder


Our Company:
Airwolf Automation is a world-renowned supply chain management company. A complete supply chain with 500,000 industrial parts can be supplied to 160 countries.
More than a thousand cooperative brands, super supply chain management ability, to ensure the fastest speed to meet your procurement needs.

Delivery:
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNT will be normal ways. If you require use of a courier, we can do it.

Q&A:
1. Q: Do you provide warranty for the goods?
A: Yes, we provide warranty for all the goods from us.
2. Q: Could seek best provide technology support?
A: We're in this field more than 10 years. If there's any problem, please contact with us,we'll provide suggestion from our engineer to help you solve problem.
3. Q: Does seek best keeps goods in stock or only trading?
A: We have large warehouse for goods. Keep lots of goods in warehouse, so could promise fast delivery.
4. Q:How about the terms of payment?
A:Generally through T/T and Paypal,Western Union also accept.
