Mindman MCJA-11-20-45 MCJA-11-20-50 MCJA-11-25-5 MCJA-11-25-10 Double acting Compact Cylinder

quality Mindman MCJA-11-20-45 MCJA-11-20-50 MCJA-11-25-5 MCJA-11-25-10 Double acting Compact Cylinder factory
quality Mindman MCJA-11-20-45 MCJA-11-20-50 MCJA-11-25-5 MCJA-11-25-10 Double acting Compact Cylinder factory

Basic Properties

Place of Origin:Taiwan, China
Brand Name:Mindman, AIRWOLF or OEM
Certification:CE, ISO9001
Model Number:MCJA-11-20-45, MCJA-11-20-50, MCJA-11-25-5, MCJA-11-25-10

Trading Properties

Minimum Order Quantity:1 piece
Price:5-63USD
Standard Packaging:Boxes, Cartons, Pallets, Plastic bags
Delivery Time:1-7 work days
Payment Terms:T/T,Western Union,Paypal
Supply Ability:1000 pcs per week
Specifications
Item Code: MCJA-11-20-45, MCJA-11-20-50, MCJA-11-25-5, MCJA-11-25-10 Body Material: Aluminum Alloy
Piston Packing Material: NBR Working Pressure: 0.05~1MPa
Operating Temperature: -5~+60℃(No Freezing) Working Medium: Air
Bore Size: 20, 25mm Function: Double Acting
Highlight

double acting compact cylinder

,

pneumatic air cylinder with warranty

,

compact cylinder MCJA series
Product Description

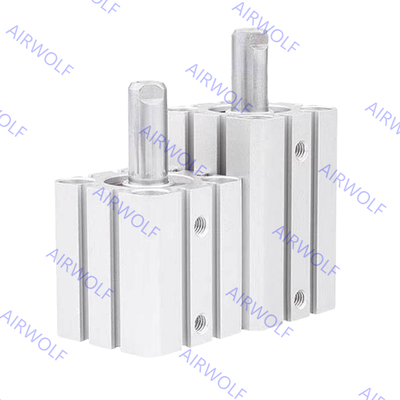

Mindman MCJA-11-20-45 MCJA-11-20-50 MCJA-11-25-5 MCJA-11-25-10 Double acting Compact Cylinder

Built from carefully selected aluminum alloy with hard-anodized treatment, the MCJA body resists wear and corrosion in continuous-duty pneumatic systems, while the extruded profile integrates a peripheral sensor groove that lets proximity switches mount flush and adjust position without external brackets. Installation relies on countersunk-hole tooth mounting, so the cylinder sits directly against the fixture without extra foot brackets, cutting parts count and keeping the envelope tight around the actuator itself.


Order Codes:

Item Code Piston (mm) Stroke (mm) Type
MCJA-11-20-45 20 45 Double acting
MCJA-11-20-50 20 50 Double acting
MCJA-11-25-5 25 5 Double acting
MCJA-11-25-10 25 10 Double acting


Specification:

Model MCJA
Acting type Double acting / Single acting Double acting
Tube I.D. (mm) 12 16 20 25 32 40 50 63 80 100
Port size M5×0.8 Rc1/8 Rc1/4 Rc3/8
Medium Air
Operatingperssurerange (MPa) Double acting 0.05~1 0.03~1 0.02~1
Single acting 0.2~1 0.15~1 0.1~1 —
Proof pressure 1.5 MPa
Ambient temperature -5°C~+60°C (No freezing)
Available speed range 50~500 mm/sec


Material:

Mindman MCJA-11-20-45 MCJA-11-20-50 MCJA-11-25-5 MCJA-11-25-10 Double acting Compact Cylinder

 Mindman MCJA-11-20-45 MCJA-11-20-50 MCJA-11-25-5 MCJA-11-25-10 Double acting Compact Cylinder

Mindman MCJA-11-20-45 MCJA-11-20-50 MCJA-11-25-5 MCJA-11-25-10 Double acting Compact Cylinder


Dimensions:

Mindman MCJA-11-20-45 MCJA-11-20-50 MCJA-11-25-5 MCJA-11-25-10 Double acting Compact Cylinder
