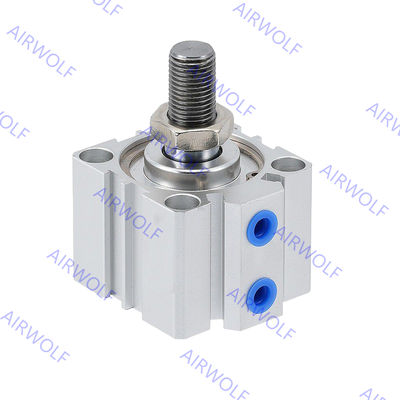

Mindman MCJA-11-20-5 MCJA-11-20-10 MCJA-11-20-15 MCJA-11-20-20 Double acting Compact Cylinder

quality Mindman MCJA-11-20-5 MCJA-11-20-10 MCJA-11-20-15 MCJA-11-20-20 Double acting Compact Cylinder factory
quality Mindman MCJA-11-20-5 MCJA-11-20-10 MCJA-11-20-15 MCJA-11-20-20 Double acting Compact Cylinder factory

Basic Properties

Place of Origin:Taiwan, China
Brand Name:Mindman, AIRWOLF or OEM
Certification:CE, ISO9001
Model Number:MCJA-11-20-5, MCJA-11-20-10, MCJA-11-20-15, MCJA-11-20-20

Trading Properties

Minimum Order Quantity:1 piece
Price:5-63USD
Standard Packaging:Boxes, Cartons, Pallets, Plastic bags
Delivery Time:1-7 work days
Payment Terms:T/T,Western Union,Paypal
Supply Ability:1000 pcs per week
Specifications
Item Code: MCJA-11-20-5, MCJA-11-20-10, MCJA-11-20-15, MCJA-11-20-20 Body Material: Aluminum Alloy
Piston Packing Material: NBR Working Pressure: 0.05~1MPa
Operating Temperature: -5~+60℃(No Freezing) Working Medium: Air
Bore Size: 20mm Function: Double Acting
Highlight

double acting compact cylinder

,

pneumatic air cylinder with warranty

,

Mindman MCJA compact cylinder
Product Description

Mindman MCJA-11-20-5 MCJA-11-20-10 MCJA-11-20-15 MCJA-11-20-20 Double acting Compact Cylinder

In practice the MCJA shows up most often in space-constrained automation—jig-and-fixture clamping, pick-and-place heads on compact assembly cells, packaging machines, electronic-component handlers, and any station where a robot wrist or linear module needs a short-stroke pusher or clamp that doesn't add bulk. Because the sensor groove and countersunk mounting are part of the extrusion itself, machine builders can drop the cylinder into a tight envelope, route the switch wiring along the body, and keep the surrounding mechanism simple—something that matters on high-density dial indexes, multi-head press stations, and benchtop automated workcells where every millimeter counts.


Order Codes:

Item Code Piston (mm) Stroke (mm) Type
MCJA-11-20-5 20 5 Double acting
MCJA-11-20-10 20 10 Double acting
MCJA-11-20-15 20 15 Double acting
MCJA-11-20-20 20 20 Double acting


Specification:

Model MCJA
Acting type Double acting / Single acting Double acting
Tube I.D. (mm) 12 16 20 25 32 40 50 63 80 100
Port size M5×0.8 Rc1/8 Rc1/4 Rc3/8
Medium Air
Operatingperssurerange (MPa) Double acting 0.05~1 0.03~1 0.02~1
Single acting 0.2~1 0.15~1 0.1~1 —
Proof pressure 1.5 MPa
Ambient temperature -5°C~+60°C (No freezing)
Available speed range 50~500 mm/sec


Material:

Mindman MCJA-11-20-5 MCJA-11-20-10 MCJA-11-20-15 MCJA-11-20-20 Double acting Compact Cylinder

 Mindman MCJA-11-20-5 MCJA-11-20-10 MCJA-11-20-15 MCJA-11-20-20 Double acting Compact Cylinder

Mindman MCJA-11-20-5 MCJA-11-20-10 MCJA-11-20-15 MCJA-11-20-20 Double acting Compact Cylinder


Dimensions:

Mindman MCJA-11-20-5 MCJA-11-20-10 MCJA-11-20-15 MCJA-11-20-20 Double acting Compact Cylinder
