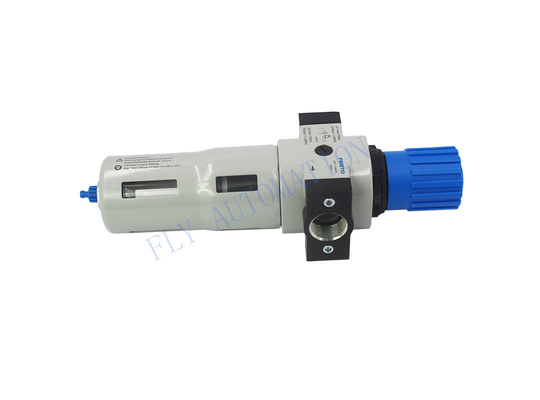

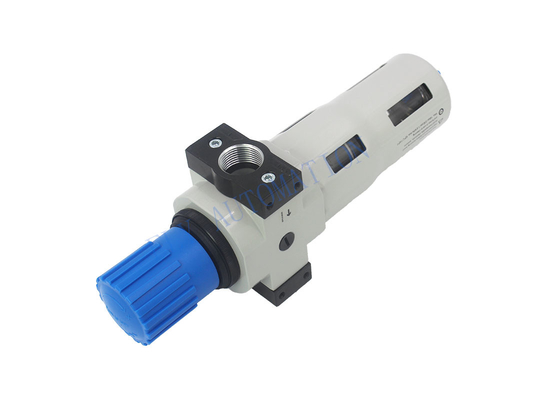

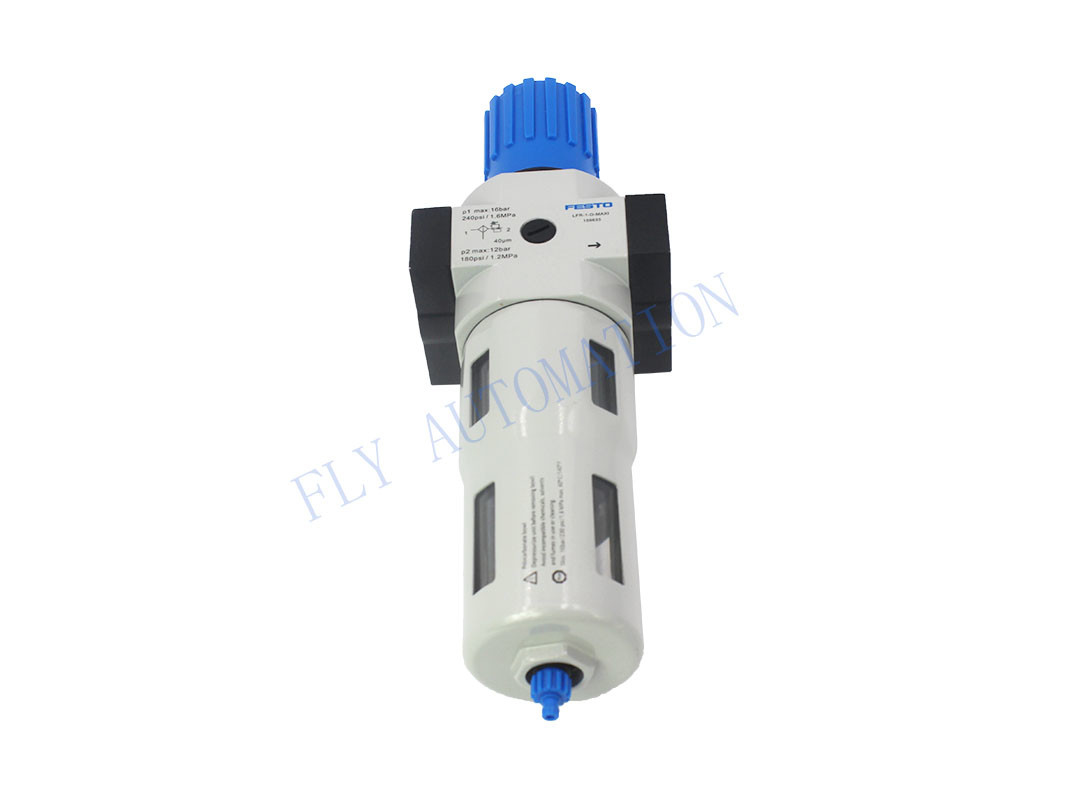

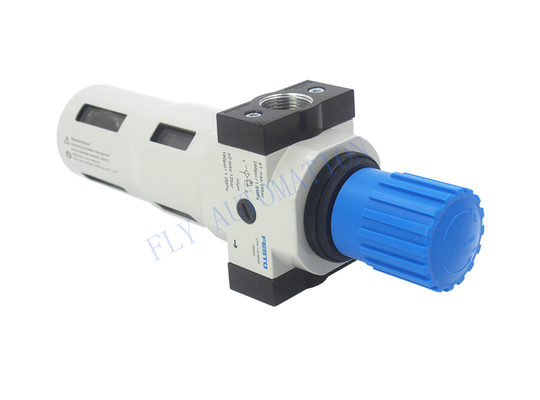

159633 Filter Regulator Manually Rotating FESTO LFR-1-D-MAXI

159633 Filter Regulator Manually Rotating FESTO LFR-1-D-MAXI

  • 159633 Filter Regulator Manually Rotating FESTO LFR-1-D-MAXI
  • 159633 Filter Regulator Manually Rotating FESTO LFR-1-D-MAXI
  • 159633 Filter Regulator Manually Rotating FESTO LFR-1-D-MAXI
  • 159633 Filter Regulator Manually Rotating FESTO LFR-1-D-MAXI
159633 Filter Regulator Manually Rotating FESTO LFR-1-D-MAXI
Product Details:
Place of Origin: EU
Brand Name: FESTO
Certification: ISO Standand
Model Number: LFR-1-D-MAXI
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: Plastic bags, boxes, cartons, Pallets or As customer's requirement
Delivery Time: 7-10 working Days
Payment Terms: T/T, Western Union, MoneyGram Paypal
Supply Ability: 1000 PCS Per Week
Contact Now
Detailed Product Description
Model: LFR-1-D-MAXI Pipe Size: G1''
Size: Maxi Series: D
Mounting Position: Vertical +/-5° Symbol: 991589
High Light:

G1'' FESTO Filter Regulator

,

Manually Rotating FESTO Filter Regulator

,

159633 Filter Regulator

FESTO LFR-1-D-MAXI 159633 Filter Regulator Manually Rotating

Filter Regulator LFR-1-D-MAXI 159633 FESTO Manually Rotating


Datasheet product reliability
The information in this "Product reliability data sheet" is based on products being used as intended. This includes complying with all specifications
in data sheets, catalogues, user documentation and the general operating conditions. The user alone is responsible for determining whether a
product is suitable for a particular application.

Feature Value
Size Maxi
Maxi
Series D
Actuator lock Rotary knob with detent
Mounting position Vertical +/-5°
Grade of filtration 40 µm
Condensate drain Manually rotating
Design Filter regulator with pressure gauge
Max. condensate volume 80 ml
Bowl guard Metal bowl guard
Symbol 991589
Pressure gauge (ANALOG) or Pressure display (DIGITAL) With pressure gauge
Operating pressure 1 bar ... 16 bar
Pressure regulation range 0.5 bar ... 12 bar
Max. pressure hysteresis 0.4 bar
Standard nominal flow rate 10000 l/min
Operating medium Compressed air to ISO 8573-1:2010 [-:9:-] Inert gases
Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC 2 - Moderate corrosion stress
Storage temperature -10 °C ... 60 °C
Air purity class at output Compressed air to ISO 8573-1:2010 [7:8:4] Inert gases
Media temperature -10 °C ... 60 °C
Ambient temperature -10 °C ... 60 °C
Product weight 1470 g
Type of mounting With accessories
Pneumatic connection, port 1 G1
Pneumatic connection, port 2 G1
Note on materials RoHS-compliant
Material housing Die-cast zinc
Material bowl PC

159633 Filter Regulator Manually Rotating FESTO LFR-1-D-MAXI159633 Filter Regulator Manually Rotating FESTO LFR-1-D-MAXI159633 Filter Regulator Manually Rotating FESTO LFR-1-D-MAXI
