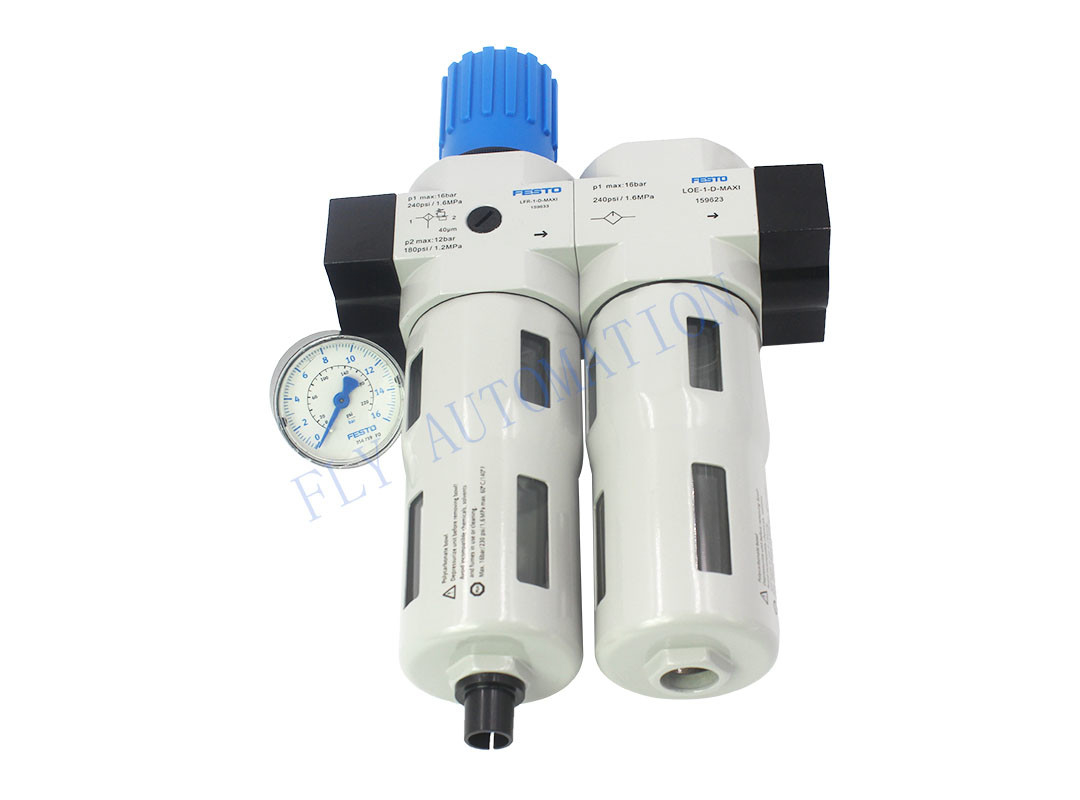

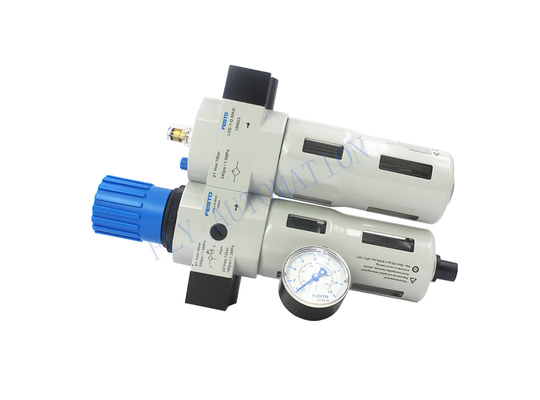

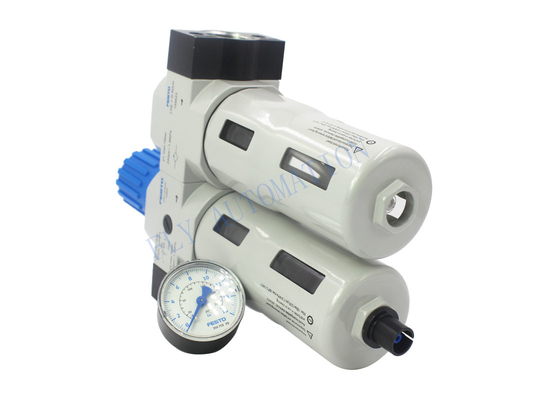

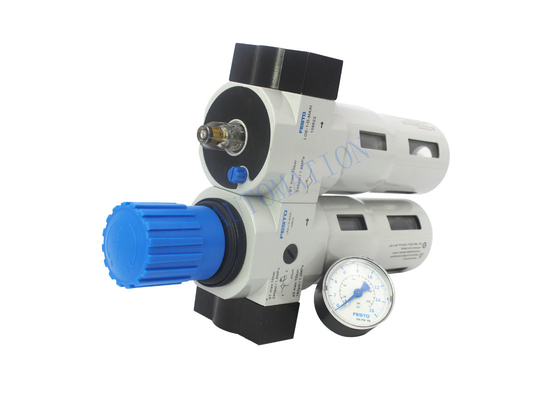

FESTO FRC-1-D-MAXI Service Units Air Source Processor FRC D Series

FESTO FRC-1-D-MAXI Service Units Air Source Processor FRC D Series

  • FESTO FRC-1-D-MAXI Service Units Air Source Processor FRC D Series
  • FESTO FRC-1-D-MAXI Service Units Air Source Processor FRC D Series
  • FESTO FRC-1-D-MAXI Service Units Air Source Processor FRC D Series
  • FESTO FRC-1-D-MAXI Service Units Air Source Processor FRC D Series
FESTO FRC-1-D-MAXI Service Units Air Source Processor FRC D Series
Product Details:
Place of Origin: EU
Brand Name: FESTO
Certification: ISO Standand
Model Number: FRC-1-D-MAXI
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: Plastic bags, boxes, cartons, Pallets or As customer's requirement
Delivery Time: 7-10 working Days
Payment Terms: T/T, Western Union, MoneyGram Paypal
Supply Ability: 1000 PCS Per Week
Contact Now
Detailed Product Description
Size: Maxi Series: D
Mounting Position: Vertical +/-5° Max. Condensate Volume: 80 Ml
Grade Of Filtration: 40 µm Product Weight: 2520 G
Media Temperature: -10 °C ... 60 °C Pneumatic Connection, Port 1/2: G1''
High Light:

80ml Volume Air Source Processor

,

FRC-1-D-MAXI Air Source Processor

,

FESTO FRC-1-D-MAXI

FESTO FRC-1-D-MAXI Service units Air Source Processor FRC D Series

Feature Value
Size Maxi
Maxi
Series D
Actuator lock Rotary knob with detent
Mounting position Vertical +/-5°
Condensate drain Manually rotating
Design Filter regulator with pressure gauge Proportional standard mist lubricator Proportional standard mist lubricator
Max. condensate volume 80 ml
Grade of filtration 40 µm
Bowl guard Metal bowl guard
Symbol 00991775
Pressure gauge (ANALOG) or Pressure display (DIGITAL) With pressure gauge
Operating pressure 1 bar ... 16 bar
Pressure regulation range 0.5 bar ... 12 bar
Max. pressure hysteresis 0.4 bar
Standard nominal flow rate 8500 l/min
Operating medium Compressed air to ISO 8573-1:2010 [-:9:-] Inert gases
Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC 2 - Moderate corrosion stress
Air purity class at output Compressed air to ISO 8573-1:2010 [7:8:-] Inert gases
Media temperature -10 °C ... 60 °C
Ambient temperature -10 °C ... 60 °C
Product weight 2520 g
Type of mounting In-line installation
With accessories
Pneumatic connection, port 1 G1
Pneumatic connection, port 2 G1
Note on materials RoHS-compliant
Material housing Die-cast zinc
Material bowl PC

FESTO FRC-1-D-MAXI Service Units Air Source Processor FRC D Series 0FESTO FRC-1-D-MAXI Service Units Air Source Processor FRC D Series 1FESTO FRC-1-D-MAXI Service Units Air Source Processor FRC D Series 2FESTO FRC-1-D-MAXI Service Units Air Source Processor FRC D Series 3
