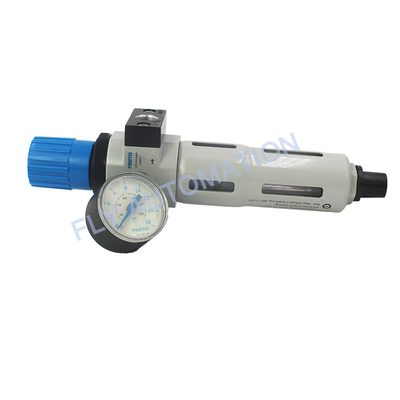

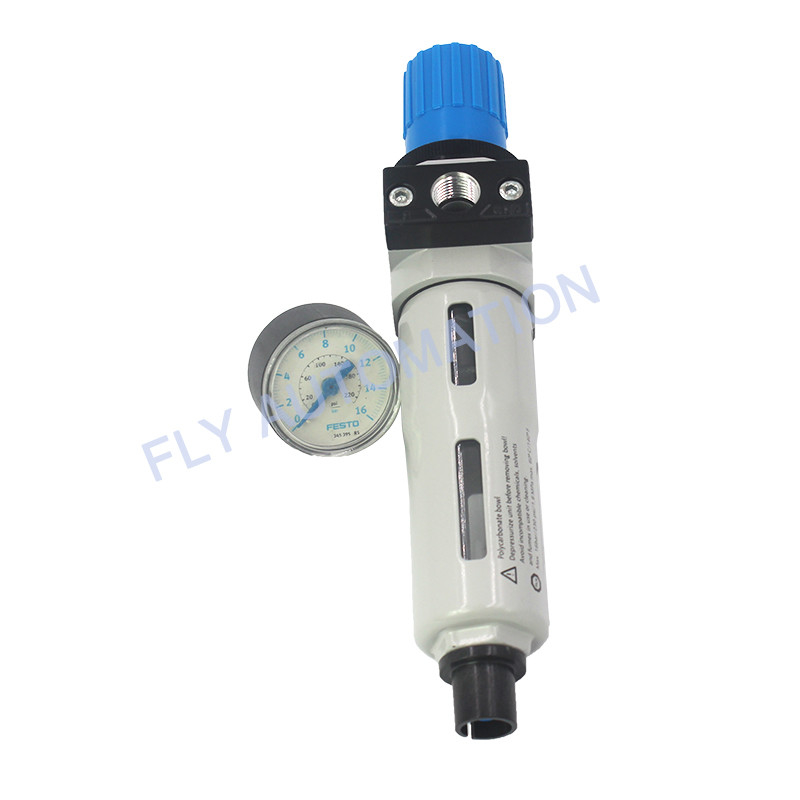

Pneumatic Air 40um Filter Pressure Regulator FESTO LFR-1/4-D-MINI

Pneumatic Air 40um Filter Pressure Regulator FESTO LFR-1/4-D-MINI

  • Pneumatic Air 40um Filter Pressure Regulator FESTO LFR-1/4-D-MINI
  • Pneumatic Air 40um Filter Pressure Regulator FESTO LFR-1/4-D-MINI
Pneumatic Air 40um Filter Pressure Regulator FESTO LFR-1/4-D-MINI
Product Details:
Place of Origin: EU
Brand Name: FESTO
Certification: ISO Standand
Model Number: LFR-1/4-D-MINI
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: Plastic bags, boxes, cartons, Pallets or As customer's requirement
Payment Terms: T/T, Western Union, MoneyGram Paypal
Supply Ability: 500 PCS Per Week
Contact Now
Detailed Product Description
Grade Of Filtration: 40 µm Size: Mini
Series: D Max. Condensate Volume: 22 Ml
Bowl Guard: Metal Bowl Guard Symbol: 991585
Pressure Regulation Range: 0.5 Bar ... 12 Bar Max. Pressure Hysteresis: 0.2 Bar
Standard Nominal Flow Rate: 1400 L/min Storage Temperature: -10 °C ... 60 °C
High Light:

40um Filter Pressure Regulator

,

Festo Filter Pressure Regulator

,

40um Air Filter Regulator

FESTO LFR-1/4-D-MINI Filter Pneumatic Air Filter Pressure Regulator



Feature Value
Size Mini
Series D
Actuator lock Rotary knob with detent
Mounting position Vertical +/-5°
Grade of filtration 40 µm
Condensate drain Manually rotating
Design Filter regulator with pressure gauge
Max. condensate volume 22 ml
Bowl guard Metal bowl guard
Symbol 991585
Pressure gauge (ANALOG) or Pressure display (DIGITAL) With pressure gauge
Operating pressure 1 bar ... 16 bar
Pressure regulation range 0.5 bar ... 12 bar
Max. pressure hysteresis 0.2 bar
Standard nominal flow rate 1400 l/min
Operating medium Compressed air to ISO 8573-1:2010 [-:9:-] Inert gases
Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC 2 - Moderate corrosion stress
Storage temperature -10 °C ... 60 °C
Air purity class at output Compressed air to ISO 8573-1:2010 [7:8:4] Inert gases
Media temperature -10 °C ... 60 °C
Ambient temperature -10 °C ... 60 °C
Product weight 460 g
Type of mounting Either:
In-line installation
With accessories
Pneumatic connection, port 1 G1/4
Pneumatic connection, port 2 G1/4
Note on materials RoHS-compliant
Material housing Die-cast zinc
Material bowl PC

Pneumatic Air 40um Filter Pressure Regulator FESTO LFR-1/4-D-MINI 0Pneumatic Air 40um Filter Pressure Regulator FESTO LFR-1/4-D-MINI 1Pneumatic Air 40um Filter Pressure Regulator FESTO LFR-1/4-D-MINI 2Pneumatic Air 40um Filter Pressure Regulator FESTO LFR-1/4-D-MINI 3Pneumatic Air 40um Filter Pressure Regulator FESTO LFR-1/4-D-MINI 4Pneumatic Air 40um Filter Pressure Regulator FESTO LFR-1/4-D-MINI 5
