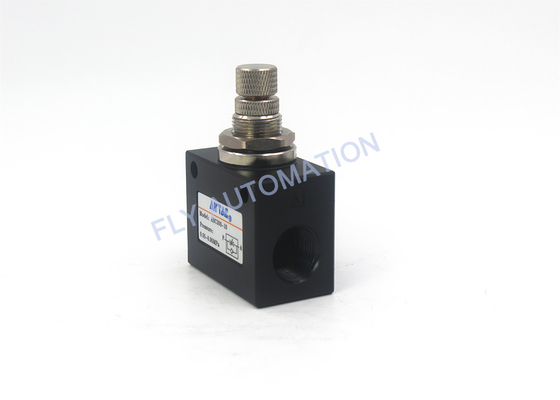

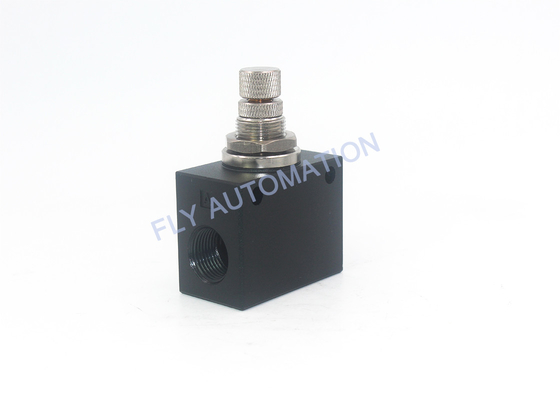

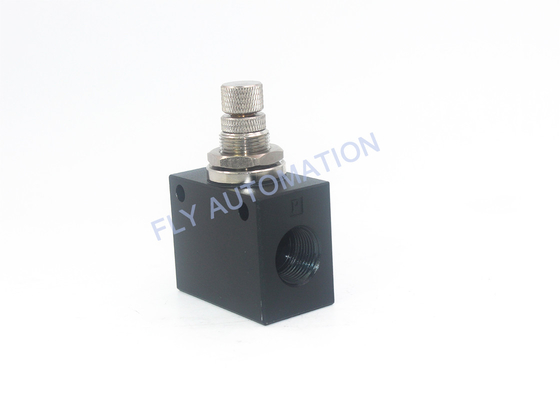

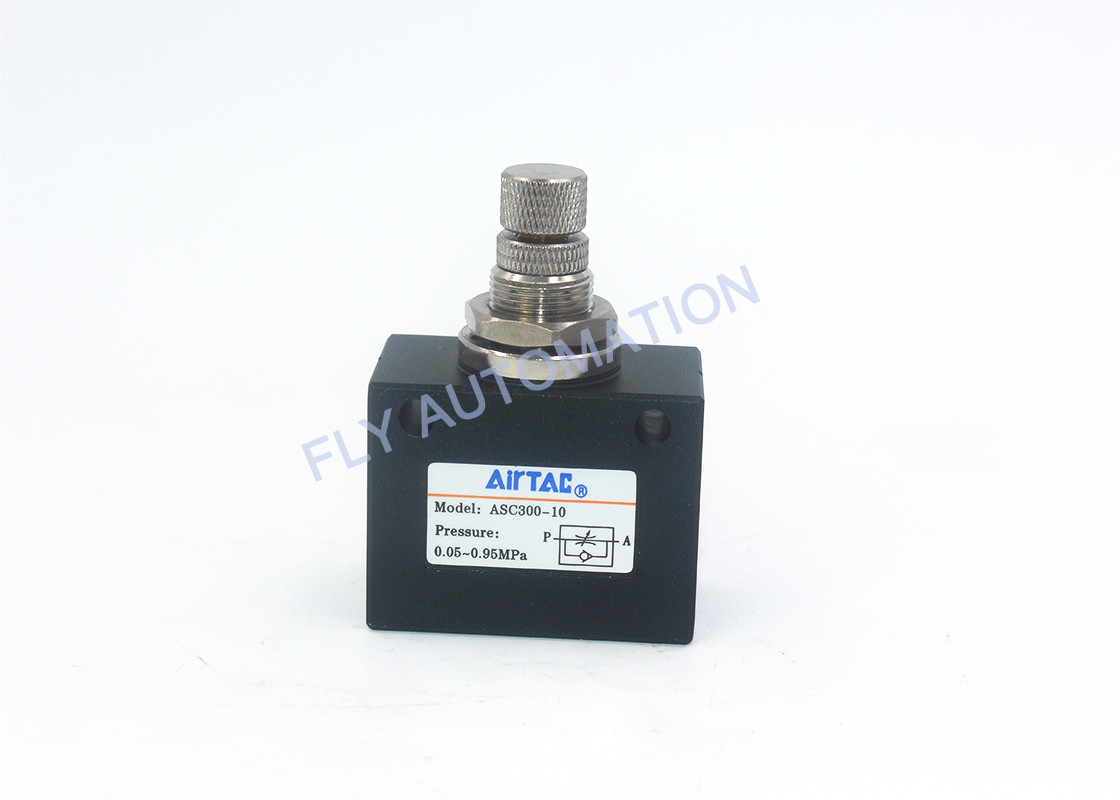

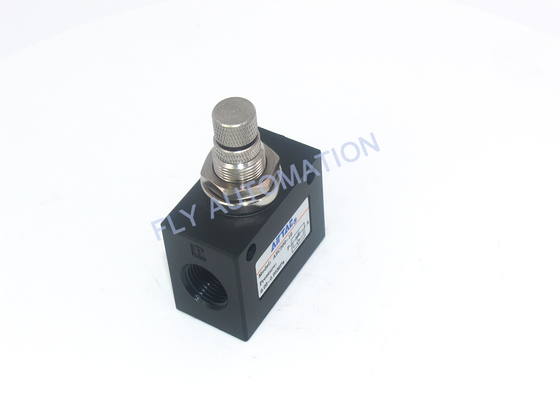

AIRTAC ASC300-10 ASC Pneumatic Air Flow Control Valve Gas Speed Solenoid Port 1

AIRTAC ASC300-10 ASC Pneumatic Air Flow Control Valve Gas Speed Solenoid Port 1

  • AIRTAC ASC300-10 ASC Pneumatic Air Flow Control Valve Gas Speed Solenoid Port 1
  • AIRTAC ASC300-10 ASC Pneumatic Air Flow Control Valve Gas Speed Solenoid Port 1
  • AIRTAC ASC300-10 ASC Pneumatic Air Flow Control Valve Gas Speed Solenoid Port 1
  • AIRTAC ASC300-10 ASC Pneumatic Air Flow Control Valve Gas Speed Solenoid Port 1
  • AIRTAC ASC300-10 ASC Pneumatic Air Flow Control Valve Gas Speed Solenoid Port 1
AIRTAC ASC300-10 ASC Pneumatic Air Flow Control Valve Gas Speed Solenoid Port 1
Product Details:
Place of Origin: China
Brand Name: AIRTAC
Certification: ISO Standand
Model Number: ASC300-10
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: Plastic bags, boxes, cartons, Pallets or As customer's requirement
Delivery Time: 7 working Days
Payment Terms: T/T, Western Union, MoneyGram Paypal
Supply Ability: 1000 PCS Per Week
Contact Now
Detailed Product Description
Model: ASC300-10 Fluid: Air (to Be Filtered By 40 U M Filter Element)
Port Size: 3/8" Pressure Range: 0.05~0.95MPa(7~135psi)
Proof Pressure: 1.5MPa(215psi) Temperature: -20~70℃
Material Body: Aluminum Alloy FlowlControl Flow: 200, 450,1250,1650(L/min) Free Flow 400 800 1500 2500
10: 3/8" Flow Direction: One Way
High Light:

AIRTAC Pneumatic Air Flow Control Valve

,

ASC300-10 Pneumatic Air Flow Control Valve

,

Port 1 Pneumatic Flow Control Valve

AIRTAC ASC300-10 ASC Gas Speed Control Solenoid Valves Port 1 Pneumatic Air Flow Control Valve



Product parameters

We also have other relevant products, If you need, please contact me !



1. Small and compact structure.

2. Allows air to exhaust and cut off air flow.The adjustment screw is both sensitive andprecise.

3. Can be mounted in various position to facilitate installation and application.


1. Before installing, be sure the valve hasn't been damaged via transportation.

2. Its suggested to use the medium lubricated by 40um filter element. Be aware of the flowdirection and port

    size.

3. Please notice whether the installation condition accords with technical requirements (suchas "working

    pressure" and "scope of application temperature"), then the equipment can beinstalled and used.

4. Take measure to avoid vibration and frozen.

5. Before using the fittings and tubes make sure they are clean. When connecting to fittings,be sure the PTFE

    Thread seal tape is used correctly.

6. To keep the dust away, Never forget to install dirt-proof boot in air intake and outlet duringdismounting.



Specification
Model: ASC100-06 AsC200-o8 AsC300-10 Asc300-15
Fluid: Air (to be filtered by 40 u m filter element)
Port size [Note1] 1/8" 1/4"" 3/8" 1/2"
Pressure range: 0.05~0.95MPa(7~135psi)
Proof pressure: 1.5MPa(215psi)
Temperature: -20~70℃
Material body: Aluminum alloy
FlowlControl flow: 200, 450,1250,1650(L/min) Free flow 400 800 1500 2500
[Note1]PT thread, G thread and NPT thread are available.

Product feature
1. Small and compact structure.
2. Allows air to exhaust and cut off air flow.The adjustment screw is bothsensitive and precise.
3. Can be mounted in various position to facilitate installation and application.

Port size:
06: 1/8"
08: 1/4"
10: 3/8"
15: 1/2"



Product model selection
A. ASC-06 (PT1/8) 1 point
B. ASC-08 (PT1/4) 2 points
C.ASC-10 (PT3/8) 3 points
D. ASC100-06 (PT1/8) 1 point
R.ASC200-08 (PT1/4) 2 points
F.ASC300-10 (PT3/8) 3 points
G.ASC300-15 (PT1/2) 4 points



AIRTAC ASC300-10 ASC Pneumatic Air Flow Control Valve Gas Speed Solenoid Port 1 0



AIRTAC ASC300-10 ASC Pneumatic Air Flow Control Valve Gas Speed Solenoid Port 1 1

AIRTAC ASC300-10 ASC Pneumatic Air Flow Control Valve Gas Speed Solenoid Port 1 2

Description:

Used to control the air direction of air system, to control the movement speed of air cylinder.
The one-way vavle will close when in forward flow and the baffler will regulate flow,while in reverse flow.
Used in various fields, such as vehicle assembly line, electronics, air system, machine tool.
