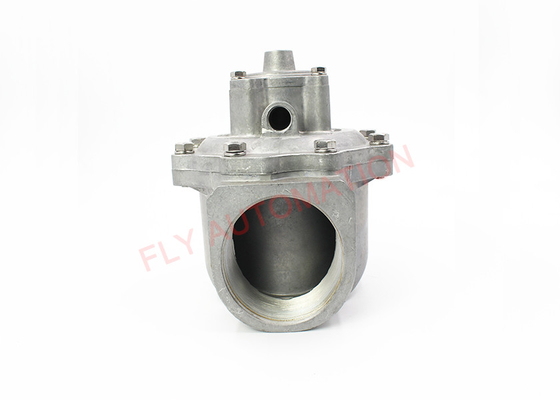

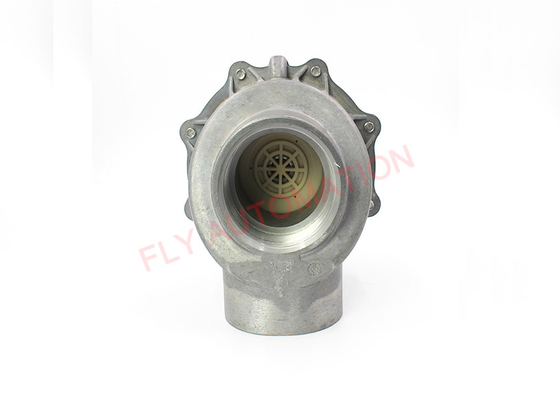

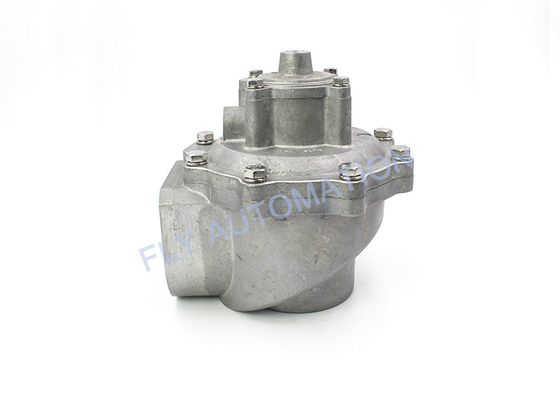

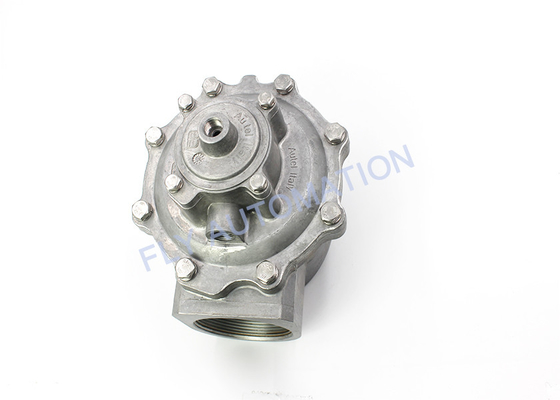

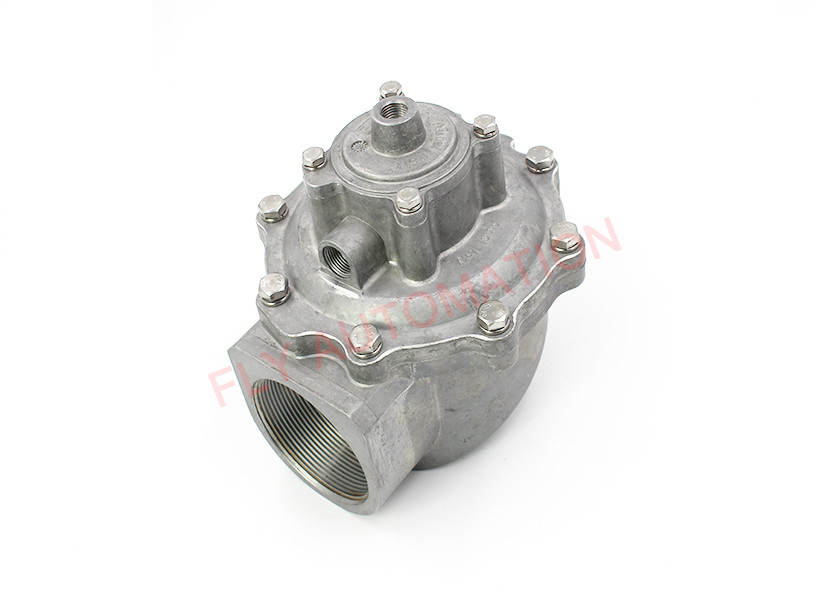

AE2460B 2 1/2" Pulse Jet Valves M/D 60 M/D 20 Screwed Connection For Dust Collector

AE2460B 2 1/2" Pulse Jet Valves M/D 60 M/D 20 Screwed Connection For Dust Collector

  • AE2460B 2 1/2" Pulse Jet Valves M/D 60 M/D 20 Screwed Connection For Dust Collector
  • AE2460B 2 1/2" Pulse Jet Valves M/D 60 M/D 20 Screwed Connection For Dust Collector
  • AE2460B 2 1/2" Pulse Jet Valves M/D 60 M/D 20 Screwed Connection For Dust Collector
  • AE2460B 2 1/2" Pulse Jet Valves M/D 60 M/D 20 Screwed Connection For Dust Collector
  • AE2460B 2 1/2" Pulse Jet Valves M/D 60 M/D 20 Screwed Connection For Dust Collector
AE2460B 2 1/2" Pulse Jet Valves M/D 60 M/D 20 Screwed Connection For Dust Collector
Product Details:
Place of Origin: CHINA
Brand Name: AUTEL
Certification: Standard
Model Number: AE2460B
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD 65.5 -110 per each
Packaging Details: Box 24*17*17 cm , Carton 52*38*32 cm
Delivery Time: Within 10 workings after payment
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 500 pcs per month
Contact Now
Detailed Product Description
Type: Right Angle ,Screw Connection Media: Compressed Filtered Air
Standard: For Compressor Air Diaphragm Life: Over One Million Cycles
Pressure Range: 0.15~0.8 MPa Body Material: Die Cast Aluminum
Power: Pneumatic Port Size: 2 1/2“
Structure: Diaphragm Standard Temperature Range: -40 °C To +100°C
High Range Temparature: -20 °C To +200°C Diaphragm Material: TPE
High Light:

pulse jet valve for dust collector

,

screwed connection pulse jet valves

,

ae2460b pulse jet valves

AUTEL AE2460B 2 1/2“ PULSE JET VALVE M/D 60 M/D 20 Screwed Connection



Description
High perform ance diaphragm valve with threaded ports. Available with
integral pilot or as remotely piloted valve. Outlet at 90° to inlet.



1. The pulse valves are especially designed for dust collector service
applications, combining high flow, long life and extremely fast opening and
closing to produce reliable and economical operation
2. The high flow, angle type bodies in combination with the special main
diaphragm assemblies give the unique operating features required for dust
collector service applications
3. Integral compression fittings for fast, easy, secure installation
4. Valves can be supplied according to A TEX Directive 94/9/EC for
non-electrical equipment by using suffix GD
5. The components satisfy all relevant EC directives





VALVE TECHNICAL FEATURES

Features   Values
Out   2 1/2“ Air
In   2 1/2" Filtered Air
Working Pressure   1.5-8 bar
Standard Temperature Range
-40 °C to +100°C
High Range Temparature   ‘-20 °C to +200°C
Flow Rate KV   114 m^3/h
Weight   3.28 kg
Protection Level   IP65
Air quality classes (ISO 8573-1) For Solid 2
For Water withT > +3°C 4
For Water with -20°C< T< +3°C 3
For Water with -40°C<T< -20°C 2
For Oil 1



Dimensions: (mm)

AE2460B 2 1/2" Pulse Jet Valves M/D 60 M/D 20 Screwed Connection For Dust Collector 0



Part List:

AE2460B 2 1/2" Pulse Jet Valves M/D 60 M/D 20 Screwed Connection For Dust Collector 1

No. Description Material
1 Screw M6 SS
2 Washer SS
3 Cover 3/4" Die Cast Aluminum
4 Diaphragm 3/4" TPE
5 Screw M8 SS
6 Washer SS
7 Cover 2 1/2“ Die Cast Aluminum
8 Spring SS
9 Spring Spring
11 Body 2 1/2" Screw Die Cast Aluminum
10a STD Diaphragm 2 1/2” TPE
10b HT Diaphragm 2 1/2“Kit VITON+PTFE
E Optional Fitting Nickeled Brass

AE2460B 2 1/2" Pulse Jet Valves M/D 60 M/D 20 Screwed Connection For Dust Collector 2

AE2460B 2 1/2" Pulse Jet Valves M/D 60 M/D 20 Screwed Connection For Dust Collector 3



After-Sales Clause:



One year quality guarantee Policy
We will check the goods quality before shipment. If there are some unexpected problems
happen, we hope to solve the problems with buyer through friendly in the following ways:
1, If it is quality problem, buyer can submit argue within 15days after receiving the goods,
buyer must provide photos or video and other evidence to seller for identify.
2, Man-made damaged, buyers take full responsibility.
3, Product quality processing program:
1) The buyer return the products for bad quality reasons for one year (not included those
damages coursed by shipping or Man-made damaged ). A 15% restocking fee is
assessed for any products returned in "used" condition. And then we will send a new
product to buyer and pay for the resend shipping cost.
2) If the goods (total price including shipping is less than 10USD) has quality problems, we
will resend a new product in buyer next order; if buyer don't plan to make a new order in
the near term, buyer can pay the resend shipping cost and ask to resend a new product. If
there is an issue with the products, please contact us– we will solve it as soon as we get
your email.
