Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
Place of Origin: | China, USA |
Brand Name: | or OEM |
Certification: | ce |
Model Number: | G353A046 |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | price negotiable |
Packaging Details: | Boxes, Cantons, Plastic bags |
Delivery Time: | within 1-30 working days after payment |
Payment Terms: | T/T in advance,Western Union,Paypal,Credit card |
Supply Ability: | 2000 pcs |
Body: | Aluminium | Springs: | Stainless Steel |
---|---|---|---|
Diaphragms: | CR (chloroprene) | Differential Pressure (PS): | 0,35 - 8,5 Bar [1 Bar = 100kPa] |
Ambient Temperature Range: | -20 To +85°C | ||

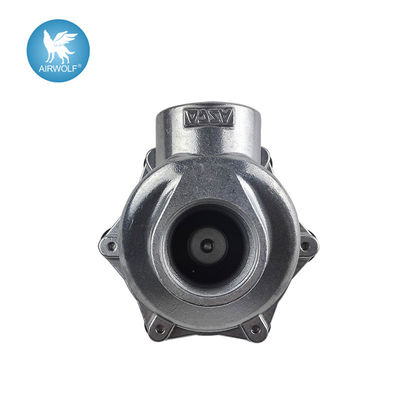

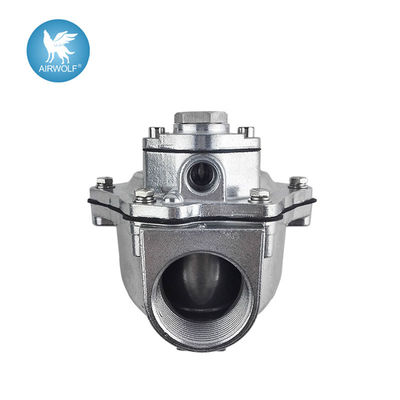

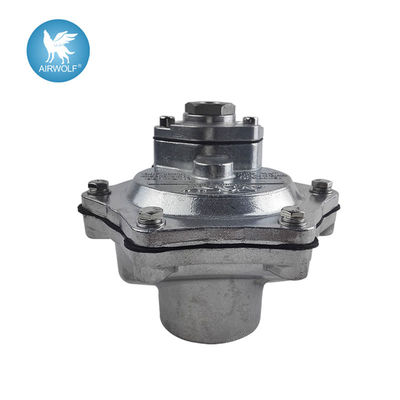

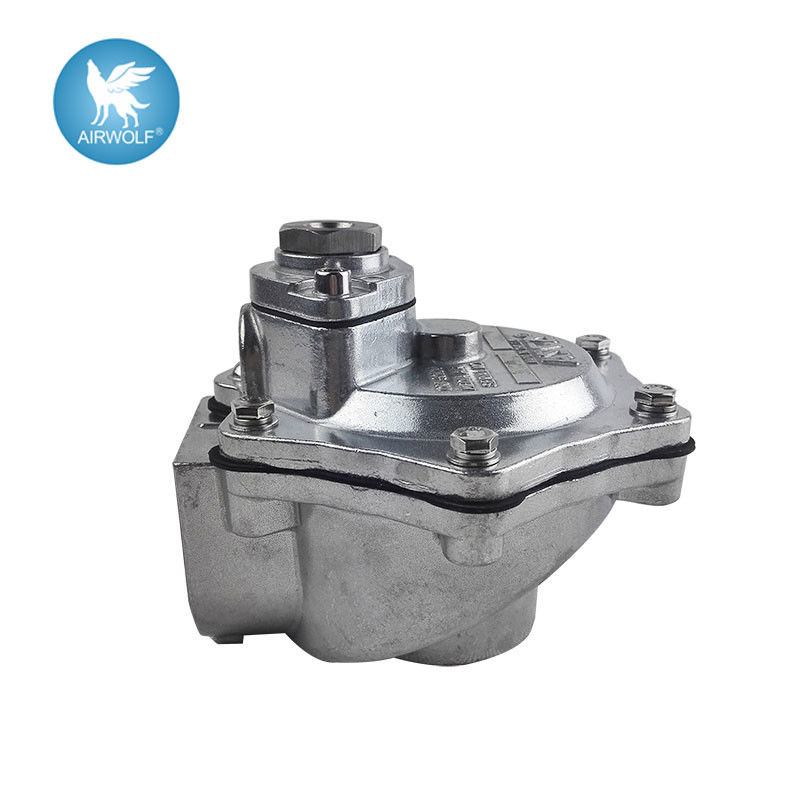

High Light: | G353A046 Pulse Jet Valves,1 1/2" Pulse Jet Valves,dual stage Pulse Jet Valves |
FEATURES
• The pulse valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and
closing to produce reliable and economical operation
• The high flow, angle type bodies in combination with the special main diaphragm assemblies give the unique operating features required for dust
collector service applications
• Integral compression fittings for fast, easy, secure installation
• Valves can be supplied according to ATEX Directive 94/9/EC for non-electrical equipment by using suffix GD
• The components satisfy all relevant EC directives
Body Aluminum
Spring Stainless Steel
Diaphragm TPE(thermoplastic polyester elastomer) or CR(chloroprene)
GENERAl
Differential pressure (PS) 0,35 - 8,5 bar [1 bar = 100kPa]
Ambient temperature range -20 to +85°C
Specifications:
pipe size | orifice size | flow coefficient Kv | operating pressure differential (bar) | catalogue number | OPTION FPM | |||
mln. | max. (PS) | |||||||
air | ||||||||
(mm) | (m3/h) | (l/min) | -/= | standard | ATEX II2G/D | |||
G - Threaded pipe connection | ||||||||
1 1/2 | 52 | 46 | 768 | 0,35 | 8,5 | G353A046 | G353A046 GD | V |
2 | 66 | 77 | 1290 | 0,35 | 8,5 | G353A048 | G353A048 GD | V |
2 1/2 | 66 | 92 | 1540 | 0,35 | 8,5 | G353A049 | G353A049 GD | V |
3 | 76 | 170 | 2833 | 1,0 | 6,0 | G353-058 | G353-058 GD | V |
catalogue number | A | B | C | D | E | F | G | H | weight | |
G353A046 (GD) | 30 | G | 1/8" | 71 | 130 | 136 | G3/8" | 90 | 120 | 1,10 |
G353A048 (GD) | 30 | G | 1/4" | 95 | 168 | 165 | G3/4" | 121 | 166 | 2,60 |
G353A049 (GD) | 30 | G | 1/4" | 95 | 168 | 165 | G3/4" | 121 | 166 | 2,30 |
G353-058 (GD) | 48 | G | 1/4" | 143 | 240 | 192 | G1/2" | 121 | 214 | 3,70 |
G353A063 (GD) | 30 | G | 1/8" | 87 | 177 | 136 | G3/8" | 96 | 183 | 1,43 |
After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
Warranty
All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.
