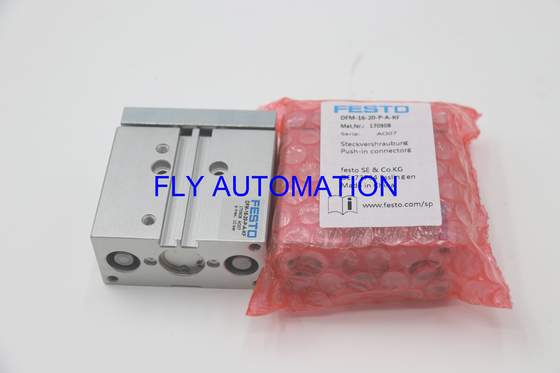

Wrought Aluminium Alloy Guided Cylinder DFM-16-20-P-A-KF 170908 GTIN4052568013448

Wrought Aluminium Alloy Guided Cylinder DFM-16-20-P-A-KF 170908 GTIN4052568013448

  • Wrought Aluminium Alloy Guided Cylinder DFM-16-20-P-A-KF 170908 GTIN4052568013448
  • Wrought Aluminium Alloy Guided Cylinder DFM-16-20-P-A-KF 170908 GTIN4052568013448
  • Wrought Aluminium Alloy Guided Cylinder DFM-16-20-P-A-KF 170908 GTIN4052568013448
Wrought Aluminium Alloy Guided Cylinder DFM-16-20-P-A-KF 170908 GTIN4052568013448
Product Details:
Place of Origin: China
Brand Name: FESTO
Model Number: DFM-16-20-P-A-KF
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: EXW USD150-200
Packaging Details: Plastic bag, Carton
Delivery Time: 5-7working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 100 pcs per month
Contact Now
Detailed Product Description
Type: DFM-16-20-P-A-KF Part No: 170908
Brand: FESTO Stroke: 20 Mm
Piston Diameter: 16 Mm Weight: 478 G
Highlight:

16mm Guide Cylinder

,

170908 Guide Cylinder

,

Wrought Aluminium Alloy Pneumatic Air Cylinders

FESTO Guided drive DFM-16-20-P-A-KF 170908 GTIN4052568013448

About product

1.Drive and guide unit in a single housing.

2.Minimal space requirement.

3.Minimal mounting time.

4.Choice of compressed air supply ports.

5.Wide range of mounting options.

6.Good protection against torsion.

7.High rigidity.

8.Maintenance-free.



Technical Data

Stroke 20 mm
Piston diameter 16 mm
Operating mode, drive unit Yoke
Cushioning Elastic cushioning rings/plates at both ends
Mounting position optional
Guide Recirculating ball bearing guide
Design Guidance
Position detection Via proximity switch
Symbol 00991737
Operating pressure 0.2 MPa ... 1 MPa
Operating pressure 2 bar ... 10 bar
Max. speed 0.8 m/s
Mode of operation Double-acting
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Corrosion resistance class CRC 0 - No corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Ambient temperature -5°C-60°C
Moving mass 229 g
Product weight 484 g
Centre of gravity of moving mass as a function of stroke 16.5 mm
Pneumatic connection M5
Note on materials RoHS-compliant
Material cover Wrought aluminium alloy
Material seals NBR
Material housing Wrought aluminium alloy
Material piston rod High-alloy stainless steel



Use in conveyor systems

Wrought Aluminium Alloy Guided Cylinder DFM-16-20-P-A-KF 170908 GTIN4052568013448



There are many models. Please hurry to me!
