| Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
 |
| Place of Origin: | China |
| Brand Name: | FESTO |
| Model Number: | DSNU-25-25-P-A |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD40-50 |
| Packaging Details: | plastic bag, carton，OPP bag |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 100 pcs per month |
| Part No: | 19219 | Type: | DSNU-25-25-P-A |
|---|---|---|---|
| Brand: | FESTO | Ambient Temperature: | -20°C-80°C |
| Weight: | 270 G | Color: | White |
| High Light: | Pneumatic Festo ISO Cylinder,19219 Pneumatic Air Cylinders,Wrought Aluminium Alloy Festo ISO Cylinder |
||

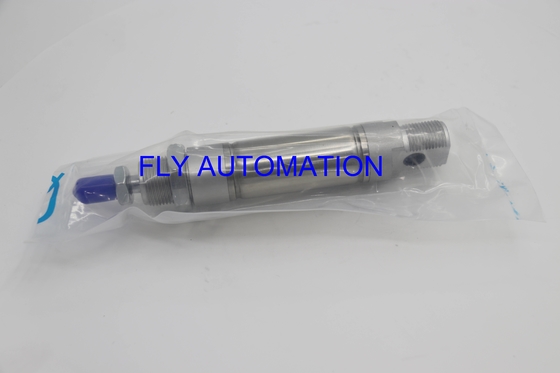

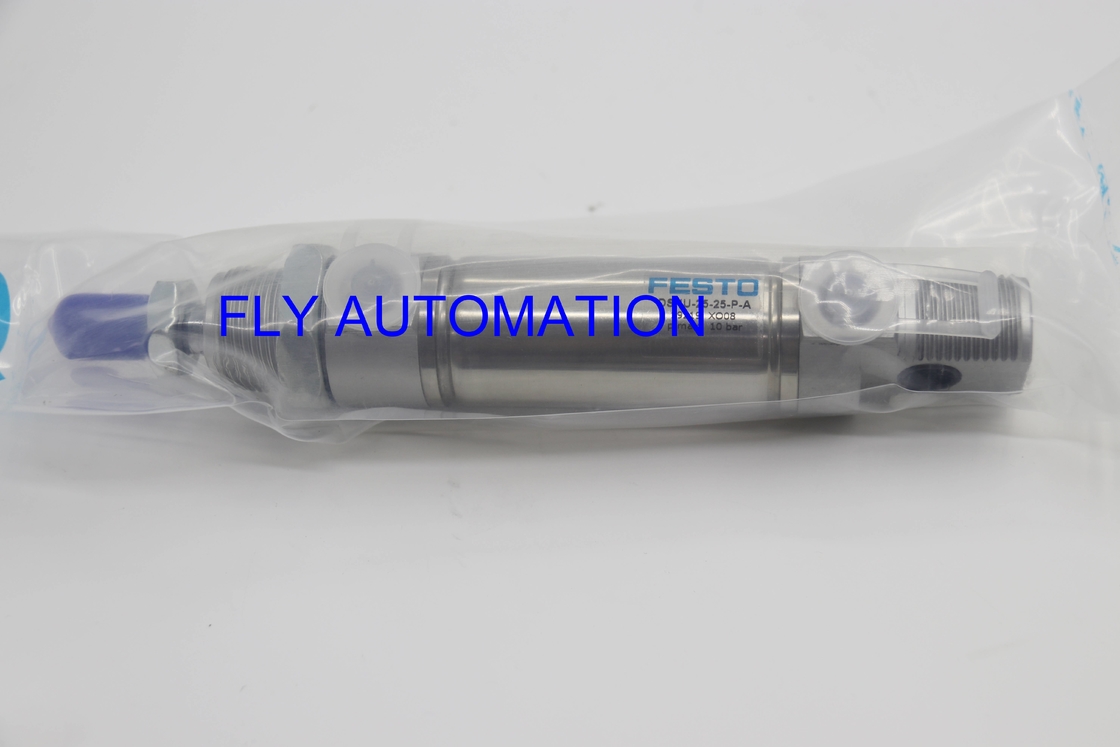

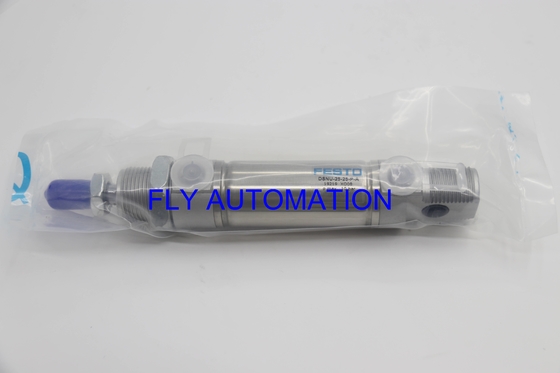

About product
1.Good running performance and long service life.
2.Cylinder barrel made of stainless steel.
3.Bearing and end caps made of wrought aluminium alloy.
4.Color:white.
5.Extensive range of accessories makes it possible to install the cylinder virtually anywhere.
Technical Data
| Stroke | 25 mm |
| Piston diameter | 25 mm |
| Piston rod thread | M10x1.25 |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Conforms to standard | CETOP RP 52 P ISO 6432 |
| Piston-rod end | Male thread |
| Design | Piston Piston rod Cylinder barrel |
| Position detection | Via proximity switch |
| Symbol | 00991217 |
| Variants | Piston rod at one end |
| Operating pressure | 0.1 MPa ... 1 MPa |
| Operating pressure | 1 bar ... 10 bar |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -20°C-80°C |
| Basic weight for 0 mm stroke | 238 g |
| Additional weight per 10 mm stroke | 11 g |
| Type of mounting | With accessories |
| Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant |
| Material cover | Wrought aluminium alloy Colourless anodised |
| Material seals | NBR TPE-U(PU) |
| Material piston rod | High-alloy stainless steel |
| Material cylinder barrel | High-alloy stainless steel |
General technical data
With the Festo Core Range, we have selected the most important products and functions from our broad product catalogue, and added the quickest delivery.
The Core Range offers you the best value for your automation tasks.
There are so many type ,please call me immediately!
