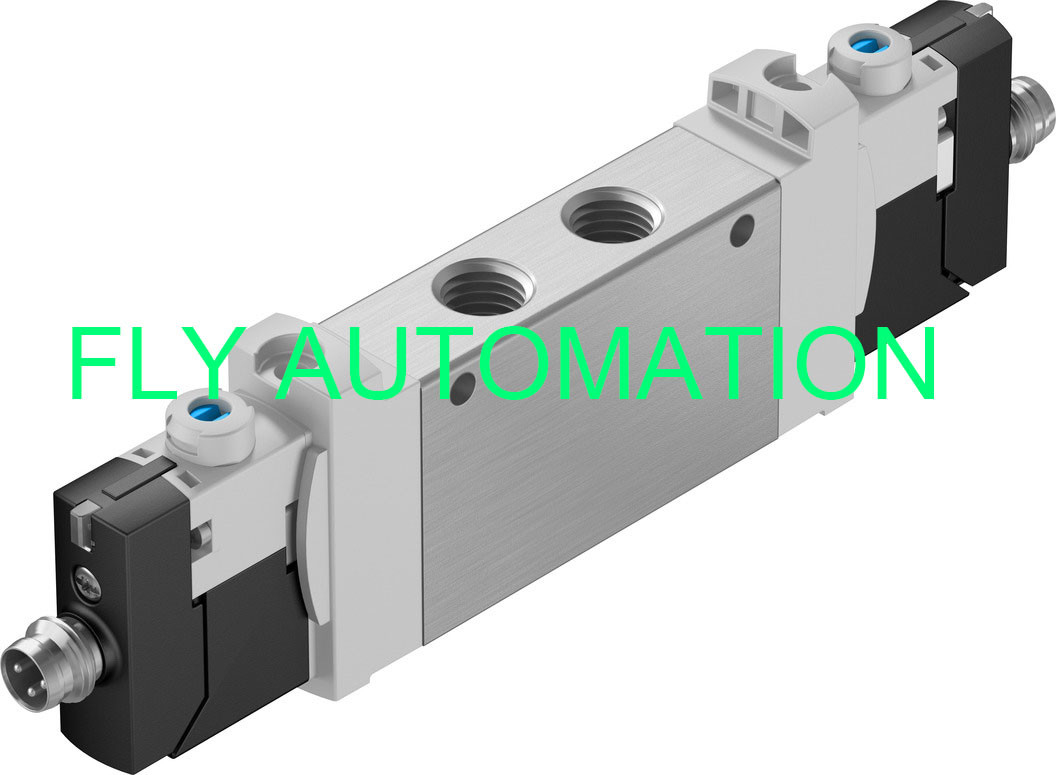

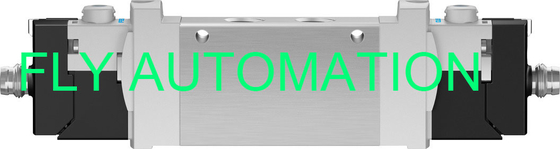

VUVG-LK14-T32C-AT-G18-1R8L-S G1/8 Pneumatic Solenoid Valves 8042566

Product Details:

Place of Origin:	China
Brand Name:	FESTO
Model Number:	VUVG-LK14-T32C-AT-G18-1R8L-S

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	EXW USD40-60
Packaging Details:	Plastic bag, Carton
Delivery Time:	7-10 working days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	100 pcs per month

Contact Now

Detailed Product Description

Order No:	8042566	Model:	VUVG-LK14-T32C-AT-G18-1R8L-S
Brand:	FESTO	Product Weight:	75 G
Duty Cycle:	100%	Media Temperature:	-5°C-50°C
Highlight:	G1/8 Pneumatic Solenoid Valves , Pneumatic Spring Solenoid Air Valve , 8042566 Air Operated Solenoid Valve

FESTO Solenoid valve VUVG-LK14-T32C-AT-G18-1R8L-S 8042566 GTIN 4052568286927 Pneumatic Solenoid Valves

Advantage

Innovative	Piston spool with sealing ring
Flexible	Valve manifold assembly with pressure zones
Reliable	Sturdy and durable metal components
Easy to install	Easy mounting, captive screws and seal

Technical Data

Valve function	2x3/2-way, monostable, closed
Type of actuation	Electric
Valve size	14 mm
Standard nominal flow rate	570 l/min
pneumatic working port	G1/8
Operating voltage	24V DC
Design	Piston slide with sealing ring
Type of reset	Pneumatic spring
Approval	c UL us - Recognized (OL)
Certificate issuing authority	UL MH19482
Degree of protection	IP65
Exhaust-air function	With flow control option
Sealing principle	Soft
Mounting position	optional
Manual override	Detenting Non-detenting
Type of piloting	Pilot actuated
Pilot air supply	Internal
Flow direction	Non-reversible
Symbol	00992904
lap	Positive overlap
Signal status display	LED
Max. switching frequency	2 Hz
Switching time off	20 ms
Switching time on	13 ms
Duty cycle	100%
Characteristic coil data	24 V DC: 0.8 W
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Corrosion resistance class CRC	0 - No corrosion stress
LABS (PWIS) conformity	VDMA24364 zone III
Media temperature	-5°C-50°C
Pilot medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature	-5°C-50°C
Product weight	75 g
Electrical connection	3-pin M8x1 A-encoded to EN 61076-2-104 Plugs
Type of mounting	On manifold rail With through-hole
Pneumatic connection, port 2	G1/8
Pneumatic connection, port 4	G1/8
Note on materials	RoHS-compliant
Material seals	HNBR NBR
Material housing	Wrought aluminium alloy

Other size as follow

Type	Order no	Price
VUVG-LK14-T32C-AT-G18-1R8L-S	8042566	USD40-60
VUVG-LK14-M52-AT-G18-1R8L-S	8042567	USD40-60
VUVG-LK14-B52-T-G18-1R8L-S	8042568	USD40-60
VUVG-LK14-T32C-AT-G18-1H2L-S	8042562	USD40-60
VUVG-LK14-M52-AT-G18-1H2L-S	8042563	USD40-60
VUVG-LK14-B52-T-G18-1H2L-S	8042564	USD40-60
VUVG-LK14-T32C-AT-G18-1H2L-F1A	8173205	USD40-60
VUVG-LK14-M52-AT-G18-1H2L-F1A	8173206	USD40-60
VUVG-LK14-B52-T-G18-1H2L-F1A	8173207	USD40-60
