| Place of Origin: | China |
| Brand Name: | FESTO |
| Model Number: | VUVG-L14-M52-AT-G18-1P3 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD50-60 |
| Packaging Details: | Plastic bag, Carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 100 pcs per month |
| Model: | VUVG-L14-M52-AT-G18-1P3 | Order No: | 566499 |
|---|---|---|---|
| Brand: | FESTO | Product Weight: | 78 G |
| Material Housing: | Wrought Aluminium Alloy | Valve Function: | 5/2-way, Monostable |
| High Light: | Wrought Aluminium Alloy Festo Solenoid Valve,Festo Solenoid Valve 566499,14mm Air Operated Solenoid Valve |
||
About product
1.Pneumatic spring return.
2.Internal pilot air supply.
3.Sturdy and durable metal components.
4.Choice of quick push-in connectors.
5.Piston spool with sealing cartridge (VUVG-L, VUVG-B).
Technical Data
| Valve function | 5/2-way, monostable |
| Type of actuation | Electric |
| Valve size | 14 mm |
| Standard nominal flow rate | 700 l/min ... 780 l/min |
| pneumatic working port | G1/8 |
| Operating voltage | 24V DC |
| Design | Piston gate valve |
| Type of reset | Pneumatic spring |
| Approval | RCM trademark c UL us - Recognized (OL) |
| Degree of protection | IP40 IP65 With plug socket |
| Nominal size | 5.6 mm |
| Exhaust-air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | optional |
| Manual override | Detenting Non-detenting Covered |
| Type of piloting | Pilot actuated |
| Pilot air supply | Internal |

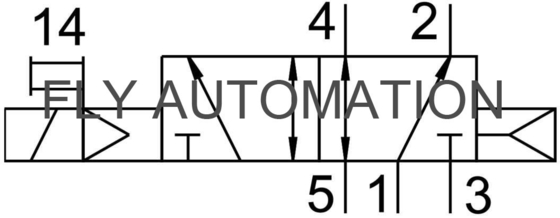

| Symbol | 00992908 |
| lap | Positive overlap |
| Suitability for vacuum | no |
| Switching time off | 22 ms |
| Switching time on | 14 ms |
| Duty cycle | 100% |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | -5°C-60°C |
| Ambient temperature | -5°C-60°C |
| Product weight | 78 g |
| Electrical connection | Via electrical sub-base |
| Type of mounting | Either: On manifold rail With through-hole |
| Pneumatic connection, port 1 | G1/8 |
| Pneumatic connection, port 2 | G1/8 |
| Pneumatic connection, port 3 | G1/8 |
| Pneumatic connection, port 4 | G1/8 |
| Pneumatic connection, port 5 | G1/8 |
| Note on materials | RoHS-compliant |
| Material seals | HNBR NBR |
| Material housing | Wrought aluminium alloy |
Another size as below
| Type | Order no | Price |
| VUVG-L14-T32-AT-G18-P3 | 566496 | USD50-60 |
| VUVG-L14-32U-AT-G18-1P3 | 566497 | USD50-60 |
| VUVG-L14-T32H-AT-G18-1P3 | 566498 | USD50-60 |
| VUVG-L14-T32C-MT-G18-1P3 | 574368 | USD50-60 |
| VUVG-L14-T32U-MT-G18-1P3 | 574369 | USD50-60 |
| VUVG-L14-T32H-MT-G18-1P3 | 574370 | USD50-60 |
| VUVG-L14-T32C-AZT-G18-1P3 | 566505 | USD50-60 |
| VUVG-L14-T32U-AZT-G18-1P3 | 566506 | USD50-60 |
| VUVG-L14-T32H-AZTG18-1P3 | 566507 | USD50-60 |
| VUVG-L14-T32C-MZT-G18-1P3 | 574372 | USD50-60 |
| VUVG-L14-T32U-MZT-G18-1P3 | 574373 | USD50-60 |
| VUVG-L14-T32H-MZT-G18-1P3 | 574374 | USD50-60 |
| VUVG-L14-M52-AT-G18-1P3 | 566499 | USD50-60 |
| VUVG-L14-M52-MT-G18-1P3 | 574371 | USD50-60 |
| VUVG-L14-M52-AZT-G18-1P3 | 566508 | USD50-60 |
| VUVG-L14-M52-MZT-G18-1P3 | 574375 | USD50-60 |
| VUVG-L14-B52-T-G18-1P3 | 566500 | USD50-60 |
| VUVG-L14-B52-ZT-G18-1P3 | 566509 | USD50-60 |
Datasheet
There are so many products, welcome to enquire!
