Place of Origin: | China |
Brand Name: | FESTO |

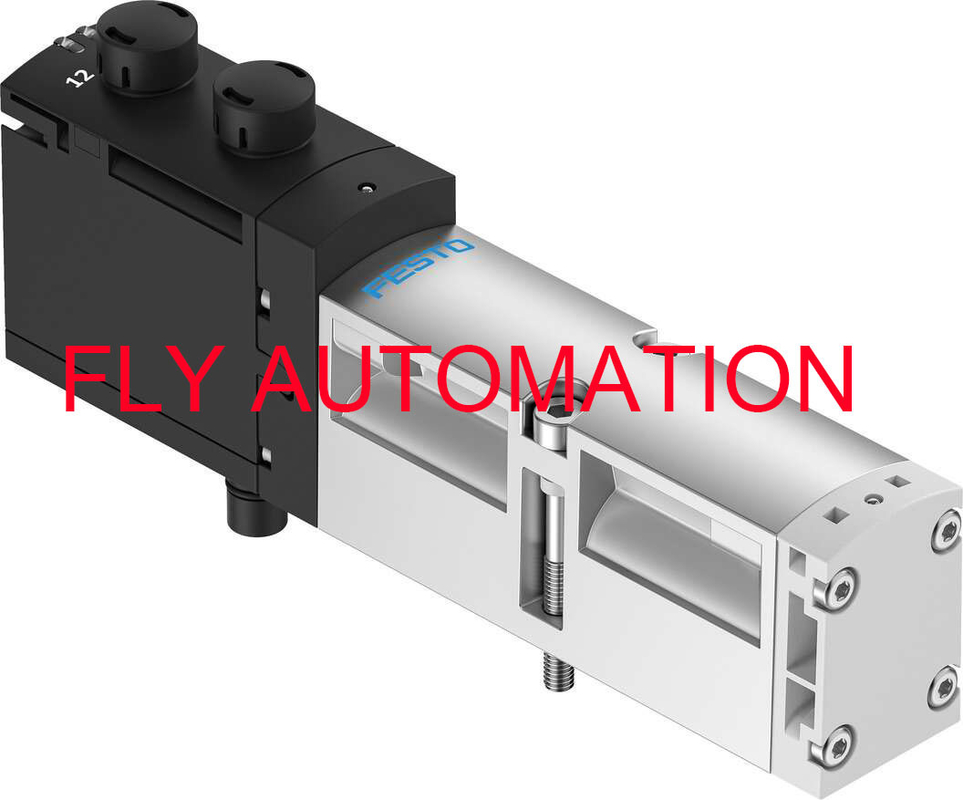

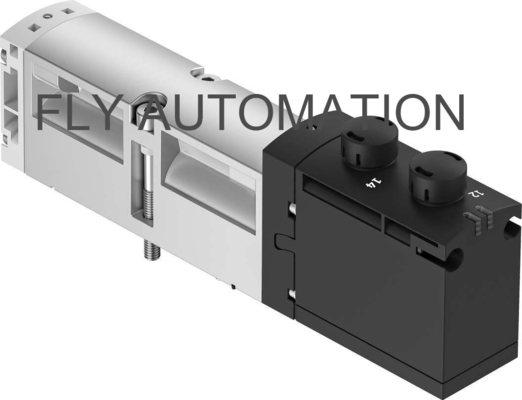

Model Number: | VSVA-B-B52-ZD-A1-1T1L |
Minimum Order Quantity: | 1pc |
---|---|
Price: | EXW USD50-60 |
Packaging Details: | Plastic bag, Carton |
Delivery Time: | 5-7 working days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 200 pcs per month |
Order No: | 539156 | Model: | VSVA-B-B52-ZD-A1-1T1L |
---|---|---|---|
Brand: | FESTO | Weight: | 276g |
Construction Width: | 26 Mm | Operating Voltage: | 24V DC |
High Light: | 26mm Pneumatic Solenoid Valves,LED Display Festo Solenoid Valve,5/2 Double Solenoid Air Valve |
About product
1.Standardised from the multi-pin plug to the fieldbus connection and control block.
2.Modular system offering a range of configuration options.
3.Conversions and extensions are possible at any time.
4.For valve terminal VTSA/VTSA-F.
5.Robust metal housing.
Technical Data
Valve function | 5/2 double solenoid |
Type of actuation | Electric |
Construction width | 26 mm |
Standard nominal flow rate | 1100 l/min |
Operating voltage | 24V DC |
Design | Piston gate valve |
Approval | c UL us - Recognized (OL) |
Degree of protection | IP65 NEMA 4 |
Sealing principle | Soft |
Mounting position | optional |
Manual override | Detenting Non-detenting Covered |
Type of piloting | Pilot actuated |
Pilot air supply | External Internal |
Flow direction | optional |
Symbol | 00992941 |
lap | Positive overlap |
Signal status display | LED |
Flow rate of valve | 1400 l/min |
Flow rate of valve on individual sub-base | 1200 l/min |
Switching time reversal | 18 ms |
Duty cycle | 100% |
Max. current consumption | 72 mA |
Nominal operating voltage DC | 24 V |
Characteristic coil data | 24 V DC: 1.6 W |
Immunity to surge | 2.5 kV |
Pollution degree | 3 |
Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
Corrosion resistance class CRC | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Pilot medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -5°C-50°C |
Product weight | 276 g |
Electrical connection | Plug-in To ISO 15407-2 |
Type of mounting | On sub-base |
Pilot air port 12/14 | Sub-base size 26 mm to ISO 15407-2 |
Pneumatic connection, port 1 | Sub-base size 26 mm to ISO 15407-2 |
Pneumatic connection, port 2 | Sub-base size 26 mm to ISO 15407-2 |
Pneumatic connection, port 3 | Sub-base size 26 mm to ISO 15407-2 |
Pneumatic connection, port 4 | Sub-base size 26 mm to ISO 15407-2 |
Pneumatic connection, port 5 | Sub-base size 26 mm to ISO 15407-2 |
Note on materials | RoHS-compliant |
Material seals | FPM HNBR NBR |
Material housing | Die-cast aluminium PA |
Material screws | Galvanised steel |
Another size as below
Type | Order no | Price |
VSVA-B-T22C-AZD-A1-1T1L | 561149 | USD50-60 |
VSVA-B-T22CV-AZD-A1-1T1L | 561153 | USD50-60 |
VSVA-B-T32U-AZD-A1-1T1L | 539152 | USD50-60 |
VSVA-B-T32C-AZD-A1-1T1L | 539150 | USD50-60 |
VSVA-B-T32H-AZD-A1-1T1L | 539154 | USD50-60 |
VSVA-B-T32F-AZD-A1-1T1L | 539153 | USD50-60 |
VSVA-B-T32N-AZD-A1-1T1L | 539151 | USD50-60 |
VSVA-B-T32W-AZD-A1-1T1L | 539155 | USD50-60 |
VSVA-B-M52-AZD-A1-1T1L | 539158 | USD50-60 |
VSVA-B-M52-MZD-A1-1T1L | 539159 | USD50-60 |
VSVA-B-B52-ZD-A1-1T1L | 539156 | USD50-60 |
VSVA-B-D52-ZD-A1-1T1L | 539157 | USD50-60 |
VSVA-B-P53U-ZD-A1-1T1L | 539160 | USD50-60 |
VSVA-B-P53C-ZD-A1-1T1L | 539162 | USD50-60 |
VSVA-B-P53E-ZD-A1-1T1L | 539161 | USD50-60 |
VSVA-B-P53ED-ZD-A1-1T1L | 560727 | USD50-60 |
VSVA-B-P53EP-ZD-A1-1T1L | 8026638 | USD50-60 |
VSVA-B-P53AD-ZD-A1-1T1L | 560728 | USD50-60 |
VSVA-B-P53BD-ZD-A1-1T1L | 8031816 | USD50-60 |
VSVA-B-M52-MZD-A1-1T1L-APX-0.5 | 570850 | USD50-60 |
VSVA-B-M52-MZD-A1-1T1L-APP | 560724 | USD50-60 |
There are so many products, welcome to enquire!
