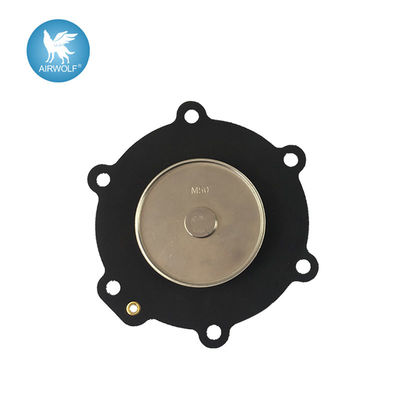

Turbo M50 M25 Pulse valve Nitrile membrane For G2" pulse dust collector

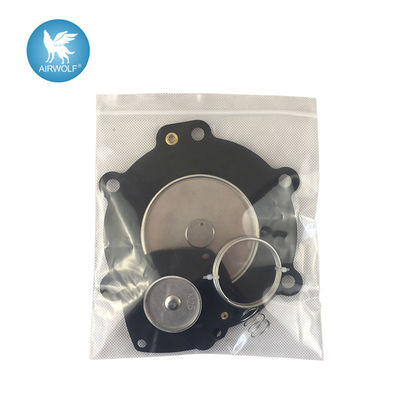

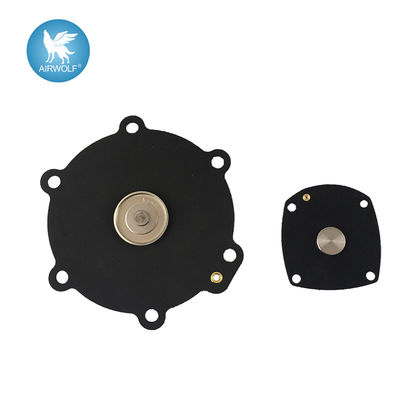

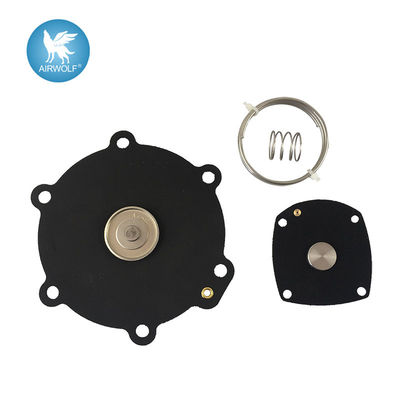

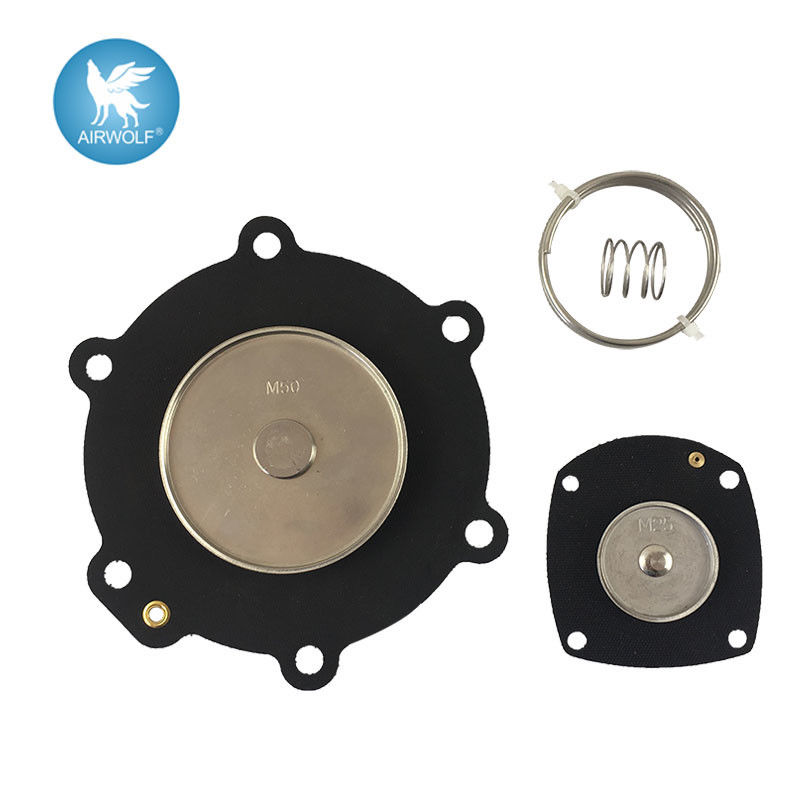

The diaphragms are repair kits for the Turbo pusle valves: FP55, FM55 , SQP50, SQM50, SQP60,SQM60
| Ordering Code |
Fitted Valve Code |
Valve port
size |
Material |
| M20,M25 |
FP20 ,FM20, FP25 ,
FM25 ,DP20, DM20,
DP25, DM25, EP20,
EM20, EP25, EM25,
SQP20, SQM20, SQP25,
SQM25, FDP20, FDM20,
FDP25, FDM25, |
3/4", 1" |
Nitrile/Buna |
| M40 and M25 |
FP40, FM40 , DP40,
DM40 , EP40, EM40 |
1 1/2" |
Nitrile/Buna |
| M50 and M25 |
FP55, FM55 , SQP50,
SQM50, SQP60,SQM60 |
2" |
Nitrile/Buna |
| M75 and M25 |
FP65, FM65 , SQP75-IN,
SQM75-IN, SQP100-IN,
SQM100-IN |
3" |
Nitrile/Buna
|
Picture:
Description
It's a normal closed double diaphragm dust removal pulse valve. These valves, used for cleaning filter elements in air filtration systems, are specifically designed for flat surfaces like square header tanks and flanged tank. Like traditional model, with threaded and coupling connection, activating divided into two types:
Integrated: Electronic control type
Remote: Air control type
A full range of accessory items are available including pilots, coils, diaphragm, spring.
Advantages:
1. Small resistance, good circulation, expanding the scope of use of gas pressure.
2. Super Long Life.
Materials:
Valve body: Aluminium Alloy
Pilot: Brass
Coil: Plastic
Seats & Seals: TPE
Turbo has a complete range of pulse valves for dust collector filters able to meet all customers technical requirement.
Turbo pulse valves are design , with a flexible and long life diaphragm for a fast opening and closing operation.
Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.
Competitive Advantage
| Our product features |
Our Services Guarantee: |
| 1) Competitive price |
1) Prompt respond (Reply with 24 hours) |
| 2) Good quality |
2) Free Samples (Customer pay for the delivery cost) |
| 3) Professional Packaging |
3) Registration support. |
| 4) Produce according to Customers’ instruction |
4) Photos/videos are available during production. |
| 5) None delay shipment |
5) Loading inspection, and send loading photos before shipment. |
After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
Warranty
All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
Introduction
Electromagnetic pulse valve refers to the gas through the valve in instantaneous once a electrical signal received. Just like pulse phenomena, it has the change of the short fluctuation. Therefore it is calls the pulse valve. The Industry standard definition of electromagnetic pulse valve for electromagnetic pilot valve and pulse valve together, diaphragm valve controlled by electrical signals.
Working principle
Electrical pulse controller send input signals so that the electromagnetic armature attracts the moving bar. Unclose the balancing hole to release the pressure gas in the back cavity of diaphragm quickly; the pressure gas in the front cavity holds up the diaphragm to open the passage and the valve starts cleaning.
The pulse signal disappears and the spring of the armature works immediately to resume the moving bar so as to close the balancing hole. The pressure gas in the back cavity of the diaphragm and the spring work together to close the passage the valve stops cleaning.
The damping hole in the diaphragm functions to damp the airflow when the moving bar of armature holds up for balancing and to transit the air to the back cavity as soon as the balancing hole is shut to close the passage and stop cleaning.
