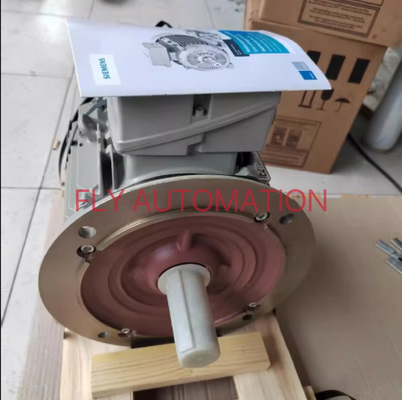

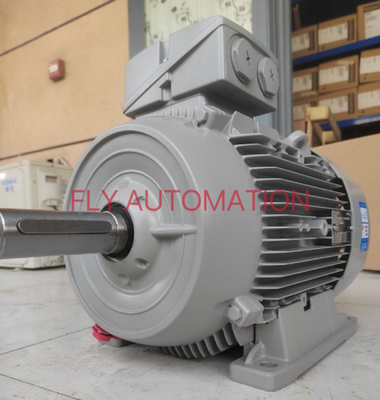

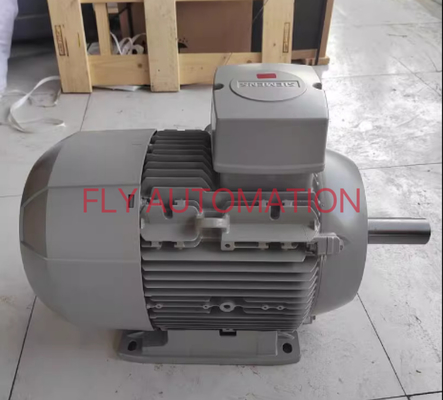

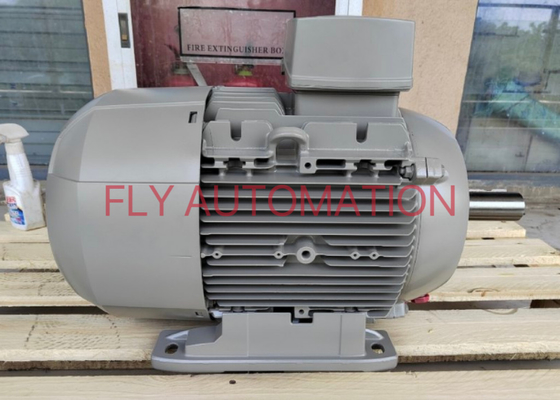

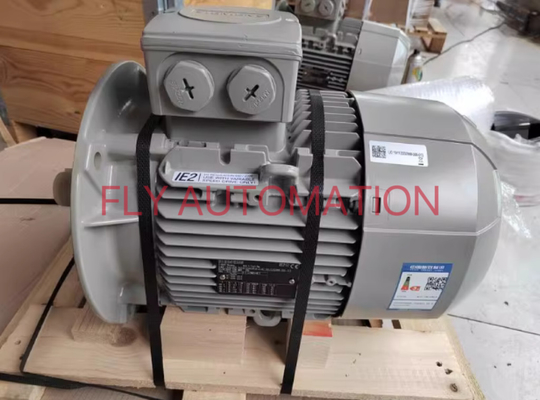

Three Phase Squirrel Cage Motors SIMOTICS 1LE1001-1CB23-4AA4-Z

Product Details:

Place of Origin:	CHINA
Brand Name:	SIEMENS
Model Number:	1LE1001-1CB23-4AA4-Z

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	EXW USD2000-2200
Packaging Details:	carton
Delivery Time:	8-15 work days
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	100PCS Every month

Contact Now

Detailed Product Description

Material:

Aluminium Enclosure

Protection Level:

IP55

Exhaust Method:

Exhaust Method

Installation Method:

Foot Mounted

Highlight:

Three Phase Squirrel Cage Motors

Simotics Squirrel Cage Motors

Squirrel Cage Low Voltage Motor

SIEMENS Three-phase Squirrel-Cage-Motors SIMOTICS 1LE1001-1CB23-4AA4-Z

Name: Three Phase Squirrel Cage Motors SIMOTICS 1LE1001-1CB23-4AA4-Z
Brand: FLY AUTOMATION
SKU: 1LE1001-1CB23-4AA4-Z
Price: 2,100.00 USD
Availability: InStock

Three Phase Squirrel Cage Motors SIMOTICS 1LE1001-1CB23-4AA4-Z

SIMOTICS GP motor type: 1AV2132B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) aluminum enclosure High Efficiency IE2, in EEA: minimum efficiency according to (EU) 2019/1781 is IE3 (as of 01.07.2021) 4-pole * size 132M, * 7.5 kW (50 Hz) 8.6 kW (60 Hz) standard color RAL 7030, if no order code is specified for selecting another color. 3 AC 50 Hz 400 VD/690 VY * 3 AC 60 Hz 460 VD IM B 3, without motor protection Terminal box at top.

Mechanical data
Sound level (SPL / SWL) at 50Hz\|60Hz	64 / 76 dB(A) 2) 3)	68 / 80 dB(A) 2) 3)
Moment of inertia	0.0280 kg m²
Bearing DE \| NDE	6208 2Z C3	6208 2Z C3
bearing lifetime
L10mh FRad min for coupling operation	40000 h	32000 h
Regreasing device	Without
Type of bearing	Preloaded bearing DE
Condensate drainage holes	Without
External earthing terminal	Without
Vibration severity grade	A
Thermal class	F
Duty type	S1
Direction of rotation	bidirectional
Frame material	aluminum
Net weight of the motor (IM B3)	49KG
Coating (paint finish)	Standard paint finish C2
Color, paint shade	RAL7030
Motor protection	(A) without (Standard)
Method of cooling	IC411 - self ventilated, surface cooled
Terminal box
Terminal box position	top
Material of terminal box	Aluminium
Type of terminal box	TB1 H00
Contact screw thread	M4
Max. cross-sectional area	6 mm²
Cable diameter from ... to …	11 mm - 21 mm
Cable entry	2xM32x1,5
Cable gland	2 plugs
