Place of Origin: | China |
Brand Name: | FLY |
Certification: | ISO Standand |
Model Number: | TAC-4P |
Minimum Order Quantity: | 10 PC |
---|---|
Price: | Negotiation |
Packaging Details: | Plastic bags, boxes, cartons, Pallets or As customer's requirement |
Delivery Time: | 7-10 working Days |
Payment Terms: | T/T, Western Union, MoneyGram Paypal |
Supply Ability: | 5000 PCS Per Week |
Model: | TAC-4P | Suggested Pressure: | 0-1.0MPa |
---|---|---|---|
Maximum Pressure: | 1.5MPa | Mass: | 66 G |
Flow Coefficient: | 0.12 Cv | Effective Area: | 2.5 Mm² |

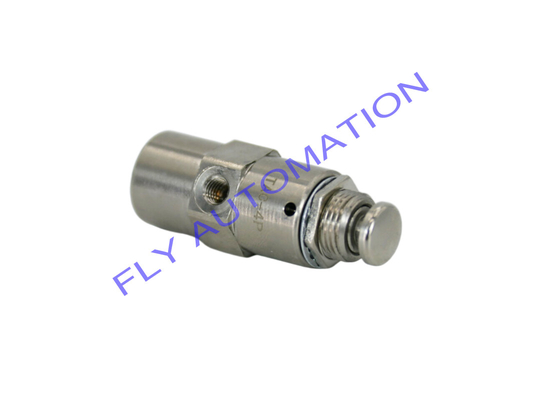

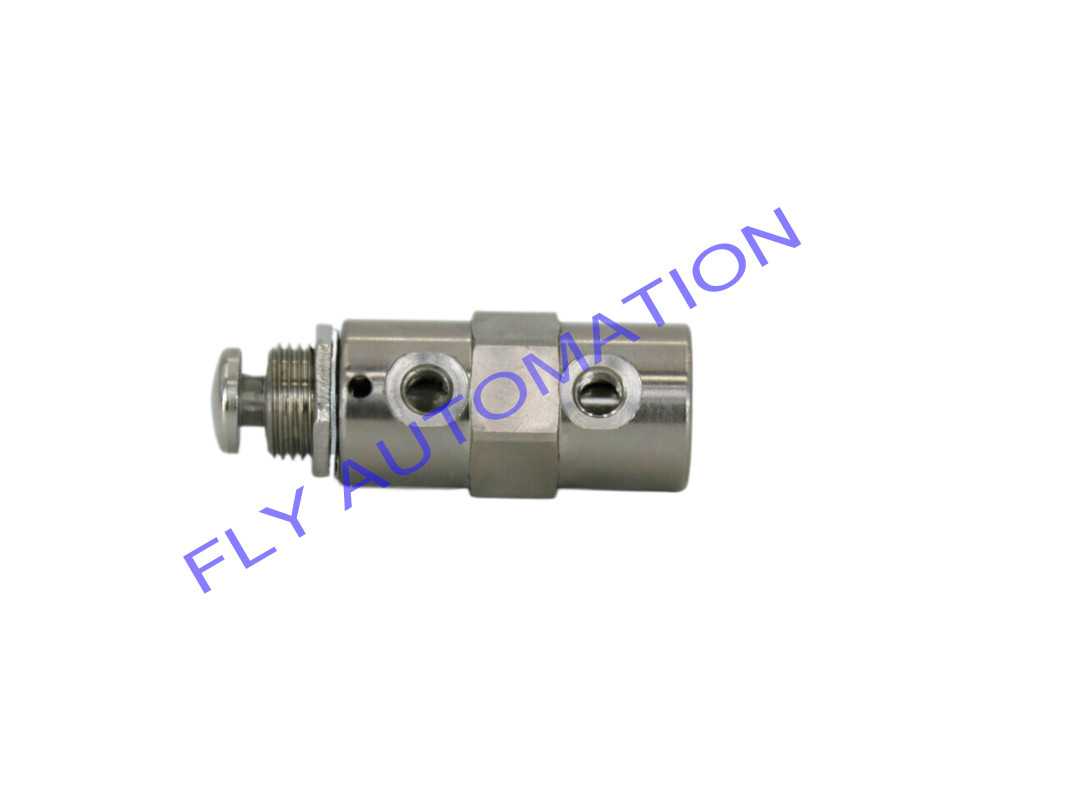

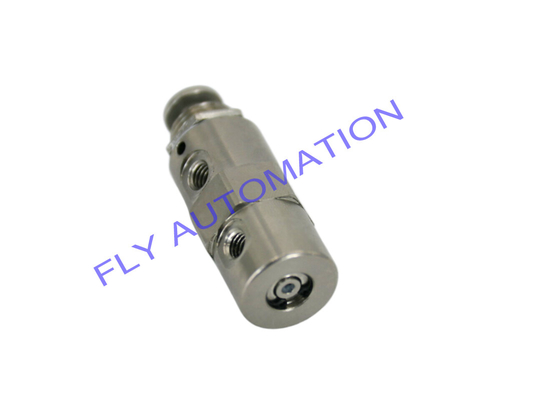

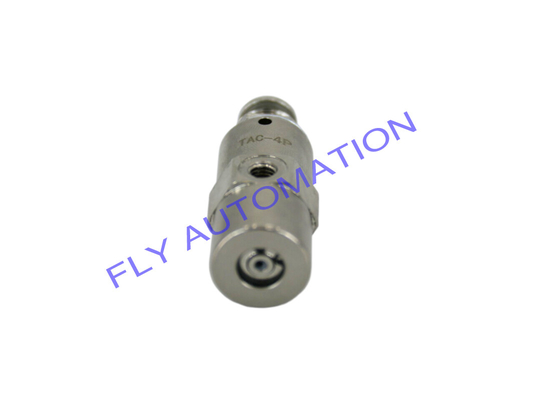

High Light: | TAC-4P Basic Type Mechanical Air Valve,1.5MPa Mechanical Air Valve,Solenoid Push Button Valve |
Descriptions
TAC, a compact device for total pneumatic control, derives its acronym from the expression Tiny Air
Components for Total Air Control. The TAC series offers compact valves, virtually all of the necessary
peripheral devices for the operation of small air cylinders and the easy configuration of simple pneumatic
circuits.
Order code
TAC-2P, TAC-3P, TAC-4P, TAC-4PP, TAC-31P, TAC-41P, TAC-41PP, TAC-3V, TAC-3VR, TAC-4V, TAC-
4VR, TAC-4PPX, TAC-31V, TAC-41V, any other types please contact freely.
Specifications | ||||
Items | TAC-2P | TAC-3P | TAC-4P | TAC-4PP |
Operation type | Push button spring return | Double push button holding type |
||
Number of ports | 2(Normally closed) | 3(Normally closed) | 5 | |
Port size | M5X0.8 | |||
Media | Air | |||
Operating pressure range | 0.9 Mpa | |||
Proof pressure | 1.35 MPa | |||
Operating temperature range | 0~60°c | |||
Effective area | 1.8 mm² | 2.5 mm² | ||
Flow coefficient | 0.08 Cv | 0.12 Cv | ||
Mounting direction | Any | |||
Maximum operating frequency | 5 Hz | |||
Valve stroke | 2.4 mm | |||
Lubrication | Required | |||
Mass | 35 g | 30 g | 66 g | 71 g |
Standard accessories | 1 pcs. Each | 2 pcs. Each |
1. We win with high quality.
Only with perfect quality system management can we have quality assurance. Fly Automation has passed ISO9001 quality management system certification.
Precision high-end testing equipment 100% inspection. Strive to be "100 points high quality products"
Only with quality can we have market, go further, and strive for the quality management concept of survival with quality.
2. Professional production technology management ability.
Pay attention to the process quality control, important performance test and appearance inspection of each work station in the production process. Check the quality level by level.
All staff participate, strengthen management, keep improving and casting quality.
3. Professional technical and after-sales service team
Provide professional technical support and analysis for customers, follow-up before and after orders step by step.
Professional after-sales customer service personnel and online staffing.
FAQ:
Q: Where is your factory ? Can we visit your factory?
A: Our factory is located in Ningbo City, Zhejiang Province,China, 17kms away from Ningbo Airport. We sincerely welcome customers to visit our company and factory.
Q: Could you add our logo on your products?
A: Yes,if your quantity more than 50pcs. we could add your logo on the products.
Q: How long is your delivery time?
A: Generally it is 1-2 days if the goods are in stock. or it will be 3-5 weeks if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ?
A: Yes, we could offer the sample for free charge, but do not pay the cost of express freight.
Q: What is your payment term and payment way?
A: Payment<=2000USD, 100% in advance.
Payment>=2000USD, 30% T/T in advance ,balance before shippment. Payment ways are : T/T, Western Union, Paypal, Alipay.
