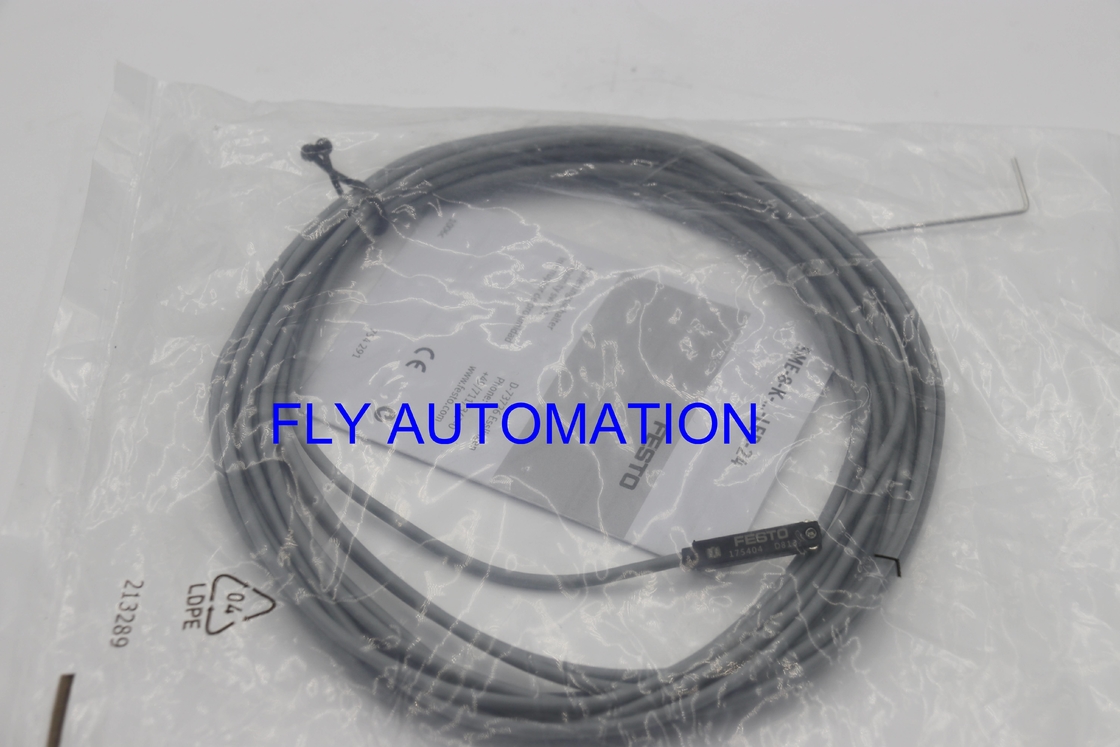

T Slot Festo Proximity Sensor SME-8-K-LED-24 150855 GTIN4052568010409

T Slot Festo Proximity Sensor SME-8-K-LED-24 150855 GTIN4052568010409

  • T Slot Festo Proximity Sensor SME-8-K-LED-24 150855 GTIN4052568010409
  • T Slot Festo Proximity Sensor SME-8-K-LED-24 150855 GTIN4052568010409
T Slot Festo Proximity Sensor SME-8-K-LED-24 150855 GTIN4052568010409
Product Details:
Place of Origin: China
Brand Name: FESTO
Model Number: SME-8-K-LED-24
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: EXW USD50-60
Packaging Details: Plastic bag, Carton
Delivery Time: 7-10working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500 pcs per month
Contact Now
Detailed Product Description
Brand: FESTO Type: SME-8-K-LED-24
Part No: 150855 Weight: 30g
Design: For T-slot Cable Sheath Colour: Grey
High Light:

FESTO Proximity Sensor SME-8-K-LED-24

,

T Slot Festo Proximity Sensor

,

Pneumatic System Components 150855

FESTO Proximity sensor SME-8-K-LED-24 150855 GTIN4052568010409

About product

1.Connecting cable, 3-wire cable, 3 x 0.14 mm².

2.Yellow light emitting diode.

3.Max. tightening torque 0.2 Nm.



Technical Data

Design For T-slot
Conforms to standard EN 60947-5-2
Symbol 00991620
Approval RCM trademark
Note on materials RoHS-compliant
Measured variable Position
Measuring principle Magnetic reed
Ambient temperature -40°C-60°C
Switching output Contacting, bipolar
Max. output current 500 mA
Connection outlet orientation In-line
Cable length 2.5 m
Cable sheath colour grey
Material cable sheath TPE-U(PUR)
Type of mounting Clamped in T-slot Insertable in the slot lengthwise
Tightening torque 0.2 Nm
Mounting position optional
Product weight 30 g
Housing colour Black
Switching status indication Yellow LED
Degree of protection IP65 IP67
LABS (PWIS) conformity VDMA24364-B2-L



Ordering data

T Slot Festo Proximity Sensor SME-8-K-LED-24 150855 GTIN4052568010409

There are many models . Please contact  me!
