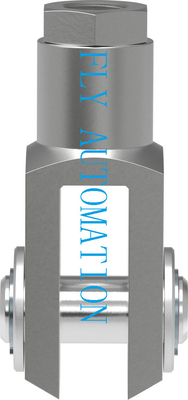

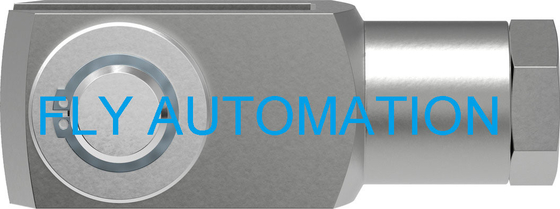

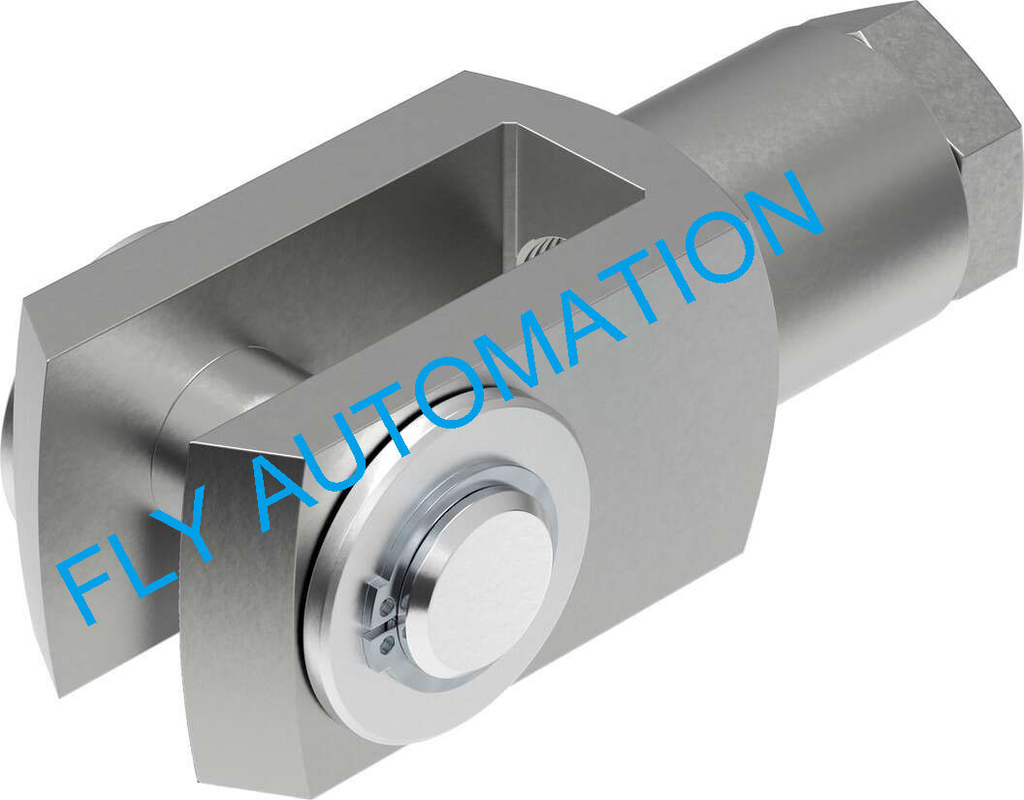

Steel Galvanised Pneumatic Air Cylinders Rod Clevis SG-M20X1 5 6147 GTIN4052568001117

Steel Galvanised Pneumatic Air Cylinders Rod Clevis SG-M20X1 5 6147 GTIN4052568001117

  • Steel Galvanised Pneumatic Air Cylinders Rod Clevis SG-M20X1 5 6147 GTIN4052568001117
  • Steel Galvanised Pneumatic Air Cylinders Rod Clevis SG-M20X1 5 6147 GTIN4052568001117
  • Steel Galvanised Pneumatic Air Cylinders Rod Clevis SG-M20X1 5 6147 GTIN4052568001117
Steel Galvanised Pneumatic Air Cylinders Rod Clevis SG-M20X1 5 6147 GTIN4052568001117
Product Details:
Place of Origin: China
Brand Name: FESTO
Model Number: SG-M20X1,5
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD30-40
Packaging Details: Plastic bag, Carton
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 100 pcs per week
Contact Now
Detailed Product Description
Part No: 6147 Type: SG-M20x1.5
GTIN: 4052568001100 Brand: FESTO
Ambient Temperature: -40°C-150°C Material Bolt: Steel Galvanised
Highlight:

Steel Galvanised Rod Clevis

,

Pneumatic Air Cylinders Rod Clevis

,

M20 Pneumatic Cylinder Clevis

FESTO Rod clevis SG-M20X1,5 6147 GTIN 4052568001117 Pneumatic Air Cylinders

About product

1.Metal material

2.High hardness, abrasion resistance and compression resistance, suitable for high frequency operation

3.The best partner of the cylinder

4.Low corrosion stress

5. Dry indoor application or transport and storage protection. Also applies to parts behind covers, in the non-visible interior area, and parts which are covered in the application (e.g. drive trunnions).



Product Technical Data

Size M20x1.5
Conforms to standard ISO 8140
Threaded connection Female thread M20x1.5
Corrosion resistance class CRC 1 - Low corrosion stress
LABS (PWIS) conformity VDMA24364-B2-L
Suitability for the production of Li-ion batteries Metals with more than 1% copper by mass are excluded from use. Exceptions are printed circuit boards, cables, electrical plug connectors and coils
Ambient temperature -40°C-150°C
Product weight 793 g
Note on materials RoHS-compliant
Material bolt Steel Galvanised
Material clevis Steel Galvanised
Material nut Steel Galvanised


Another size as follow

Type Part no. Weight(g) GTIN Price
SG-M20x1.5 6147 793 4052568001117 USD30-40
SG-M27x2-B 14987 2135 4052568112677 USD100-150
SG-M36x2 9581 4320 4052568001940 USD150-200
SG-M42x2 9582 7520 4052568111502 USD350-400
SG-M48x2 9583 10029 4052568111519 USD650-700


Rod clevis SG

Scope of delivery: 1 rod clevis, 1 bolt, 1 retaining ring, 1 hex nut (DIN 439).

Material: Galvanised steel Free of copper and PTFE RoHS-compliant.

Steel Galvanised Pneumatic Air Cylinders Rod Clevis SG-M20X1 5 6147 GTIN4052568001117



Attention

1,Before you endorse the parcel, please do open the package, and check out whether the items are damaged during the shipping process.
If so, please do refuse to sign for the parcel, the courier will send back the package to our company. Otherwise we are not responsible for this...
2,Any order is welcome; we will give discounts and combined shipping costs for you if you order more or mix order. If you have any questions,
please feel free to contact us.



There are many specifications of connectors, price and delivery time. Welcome to inquire.
