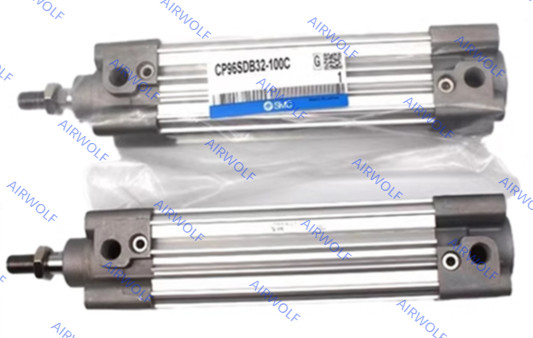

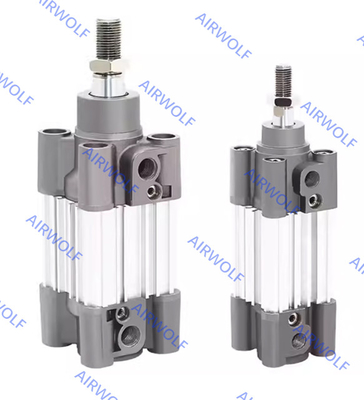

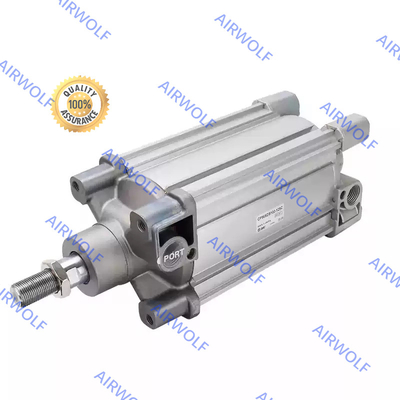

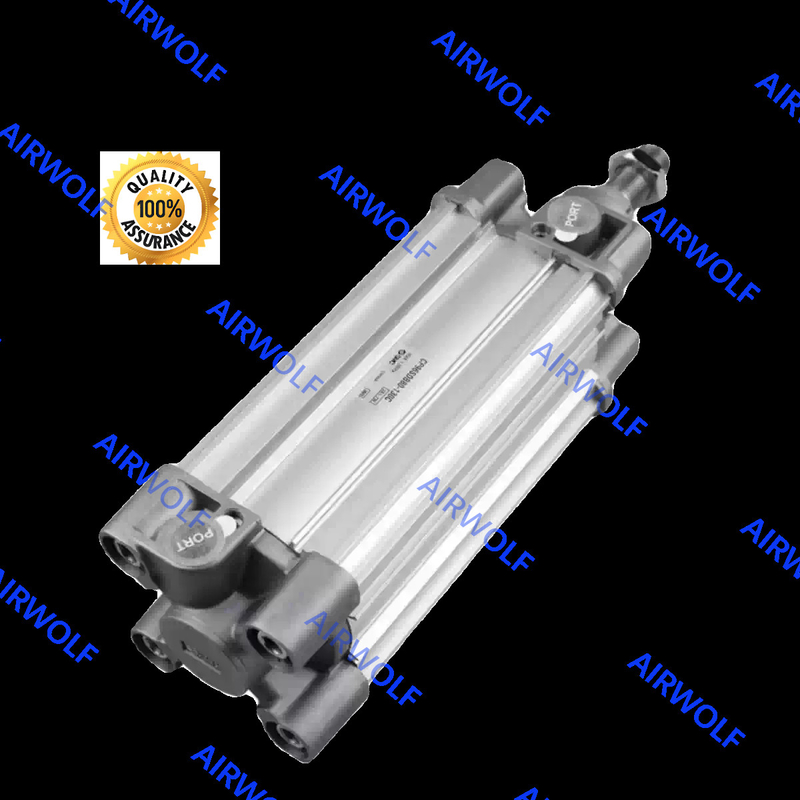

SMC Pneumatic Cylinder ISO15552 Double Acting Aluminum CP96SDB125-1000C CP96SDB32-80C

SMC Pneumatic Cylinder ISO15552 Double Acting Aluminum CP96SDB125-1000C CP96SDB32-80C

SMC Pneumatic Cylinder ISO15552 Double Acting Aluminum CP96SDB125-1000C CP96SDB32-80C
video
SMC Pneumatic Cylinder ISO15552 Double Acting Aluminum CP96SDB125-1000C CP96SDB32-80C
Product Details:
Place of Origin: CHINA JAPAN
Brand Name: SMC ,OEM
Model Number: CP96SDB32-25C CP96SDB40-25C CP96SDB50-25C CP96SDB63-25C CP96SDB80-25C CP96SDB100-25C CP96SDB125-25C CP96SDB32-50C CP96SDB40-50C CP96SDB50-50C CP96SDB63-50C CP96SDB80-50C CP96SDB100-50C CP96SDB125-50C CP96SDB32-75C CP96SDB40-75C CP96SDB50-75C CP96SDB63-75C
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 35-225USD
Packaging Details: Cartons, Pallets
Delivery Time: 2-5 workin days
Payment Terms: T/T, Western Union,Paypal, Alipay
Supply Ability: 20 Pcs per day
Contact Now
Detailed Product Description
Fuid: Compressed Air Action: Double Acting, Single Rod
Maximum Operating Pressure: 1.0Mpa Minimum Operating Pressure: 0.05Mpa
Proof Pressure (MPa): 1.5Mpa Ambient And Fluid Temperature: Without Auto Switch:-10 To 70°C With Auto Switch: - -10 To 60°C No Freezing
Piston Speed: 50 To 1000 Mm/s Lubrication: Not Required (Non-lube)
Cushion: Air Cushion Or Rubber Bumper Mounting: Basic, Axial Foot, Rod Flange, Head Flange Single Clevis, Double Clevis
Highlight:

ISO15552 Pneumatic cylinder

,

Double Acting Pneumatic cylinder

,

Aluminum Pneumatic cylinder

SMC Pneumatic cylinder ISO15552 Double Acting Aluminum CP96SDB125-1000C CP96SDB32-80C





Order Codes:
CP96SDB32-25C CP96SDB40-25C CP96SDB50-25C CP96SDB63-25C CP96SDB80-25C CP96SDB100-25C CP96SDB125-25C
CP96SDB32-50C CP96SDB40-50C CP96SDB50-50C CP96SDB63-50C CP96SDB80-50C CP96SDB100-50C CP96SDB125-50C
CP96SDB32-75C CP96SDB40-75C CP96SDB50-75C CP96SDB63-75C CP96SDB80-75C CP96SDB100-75C CP96SDB125-75C
CP96SDB32-80C CP96SDB40-80C CP96SDB50-80C CP96SDB63-80C CP96SDB80-80C CP96SDB100-80C CP96SDB125-80C
CP96SDB32-100C CP96SDB40-100C CP96SDB50-100C CP96SDB63-100C CP96SDB80-100C CP96SDB100-100C CP96SDB125-100C
CP96SDB32-125C CP96SDB40-125C CP96SDB50-125C CP96SDB63-125C CP96SDB80-125C CP96SDB100-125C CP96SDB125-125C
CP96SDB32-150C CP96SDB40-150C CP96SDB50-150C CP96SDB63-150C CP96SDB80-150C CP96SDB100-150C CP96SDB125-150C
CP96SDB32-160C CP96SDB40-160C CP96SDB50-160C CP96SDB63-160C CP96SDB80-160C CP96SDB100-160C CP96SDB125-160C
CP96SDB32-175C CP96SDB40-175C CP96SDB50-175C CP96SDB63-175C CP96SDB80-175C CP96SDB100-175C CP96SDB125-175C
CP96SDB32-200C CP96SDB40-200C CP96SDB50-200C CP96SDB63-200C CP96SDB80-200C CP96SDB100-200C CP96SDB125-200C
CP96SDB32-250C CP96SDB40-250C CP96SDB50-250C CP96SDB63-250C CP96SDB80-250C CP96SDB100-250C CP96SDB125-250C
CP96SDB32-300C CP96SDB40-300C CP96SDB50-300C CP96SDB63-300C CP96SDB80-300C CP96SDB100-300C CP96SDB125-300C
CP96SDB32-350C CP96SDB40-350C CP96SDB50-350C CP96SDB63-350C CP96SDB80-350C CP96SDB100-350C CP96SDB125-350C
CP96SDB32-400C CP96SDB40-400C CP96SDB50-500C CP96SDB63-500C CP96SDB80-500C CP96SDB100-500C CP96SDB125-500C
CP96SDB32-450C CP96SDB40-450C CP96SDB50-450C CP96SDB63-450C CP96SDB80-450C CP96SDB100-450C CP96SDB125-450C
CP96SDB32-500C CP96SDB40-500C CP96SDB50-500C CP96SDB63-500C CP96SDB80-500C CP96SDB100-500C CP96SDB125-500C
CP96SDB32-550C CP96SDB40-550C CP96SDB50-550C CP96SDB63-550C CP96SDB80-550C CP96SDB100-550C CP96SDB125-550C
CP96SDB32-600C CP96SDB40-600C CP96SDB50-600C CP96SDB63-600C CP96SDB80-600C CP96SDB100-600C CP96SDB125-600C
CP96SDB32-650C CP96SDB40-650C CP96SDB50-650C CP96SDB63-650C CP96SDB80-650C CP96SDB100-650C CP96SDB125-650C
CP96SDB32-700C CP96SDB40-700C CP96SDB50-700C CP96SDB63-700C CP96SDB80-700C CP96SDB100-700C CP96SDB125-700C
CP96SDB32-750C CP96SDB40-750C CP96SDB50-750C CP96SDB63-750C CP96SDB80-750C CP96SDB100-750C CP96SDB125-750C
CP96SDB32-800C CP96SDB40-800C CP96SDB50-800C CP96SDB63-800C CP96SDB80-800C CP96SDB100-800C CP96SDB125-800C
CP96SDB32-850C CP96SDB40-850C CP96SDB50-850C CP96SDB63-850C CP96SDB80-850C CP96SDB100-850C CP96SDB125-850C
CP96SDB32-900C CP96SDB40-900C CP96SDB50-900C CP96SDB63-900C CP96SDB80-900C CP96SDB100-900C CP96SDB125-900C
CP96SDB32-950C CP96SDB40-950C CP96SDB50-950C CP96SDB63-950C CP96SDB80-950C CP96SDB100-950C CP96SDB125-950C
CP96SDB32-1000C CP96SDB40-1000C CP96SDB50-1000C CP96SDB63-1000C CP96SDB80-1000C CP96SDB100-1000C CP96SDB125-1000C



How to order:

SMC Pneumatic Cylinder ISO15552 Double Acting Aluminum CP96SDB125-1000C CP96SDB32-80C



Specification:

Bore size [mm] 32 40 50 63 80 100 125
Action Double acting
Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Min. operating pessure 0.05 MPa
Ambient and fluid temperatures Without auto switch: -20 to 70°C (No freezing) With auto switch: -10 to 60°C (No freezing)
Lubrication Not required (Non-lube)
Operating piston speed 50 to 1000 mm/s 50 to 70mm/s
Allowable stroke tolerance Up to 500 +2 0 +1.0 0
501 to 10000 +2.4 0 +1.4 0
1001 to 1500 +2.8 0 +1.8 0
1501 to 2000 +3.2 0 +2.2 0
Cushion Air cushion on both ends + Bumper cushion Air cushion
Port size G 1/8 G 1/4 G 1/4 G 3/8 G 3/8 G 1/2 G 1/2
Mounting Basic, Axial foot, Rod flange, Head flange, Single clevis, Double clevis, Center trunnion, Adjustable position trunnion

SMC Pneumatic Cylinder ISO15552 Double Acting Aluminum CP96SDB125-1000C CP96SDB32-80C

Component Parts
No. Description Material Note
1 Rod cover Aluminum die-cast
2 Head cover Aluminum die-cast
3 Cylinder tube Aluminum alloy
4 Piston rod Carbon steel
5 Piston Aluminum alloy 32 to 63,125
Aluminum die-cast 80, 100
6 Cushion ring A Aluminum alloy
7 Cushion ring B Aluminum alloy
8 Cushion seal holder Aluminum alloy 32 to 100
9 Tie-rod Carbon steel
10 Tie -rod nut Steel
11 Flat washer Steel 80,100
12 Rod end nut Steel
13 Cushion valve Resin 32 to 100
Steel wire 125
14 Bushing Bearing alloy
15 Cushion seal Urethane
16 Bumper Urethane 32 to 100
17 Wear ring Resin
18 Piston seal NBR
19 Rod seal NBR
20 _Cylinder tube gasket NBR
21 Cushion valve seal NBR
22 Magnet
23 Retaining ring Steel for spring 125
24 Rod seal holder Stainless steel 125
25 Retaining ring Steel for spring 125

Specifications:

Bore size [mm] 32 40 50 63 80 100 125
Action Double acting, Single rod
Fluid Air
Proof pressure 1.5MPa
Maximum operating pressure 1.0 MPa
Minimum operating pressure 0.05 MPa
Ambient and fluid temperature Without auto switch:-10 to 70°C With auto switch: - -10 to 60°C No freezing
Lubrication Not required (Non-lube)
Piston speed 50 to 1000 mm/s
Cushion Air cushion or Rubber bumper
Port size (Rc, NPT, G) 1/8 1/4 3/8 1/2
Mounting Basic, Axial foot, Rod flange, Head flange Single clevis, Double clevis







SMC Pneumatic Cylinder ISO15552 Double Acting Aluminum CP96SDB125-1000C CP96SDB32-80C
