SMC MXH6-10 Pneumatic Air Cylinders Double Acting 1.05 MPa

Product Details:

Place of Origin:	CHINA
Brand Name:	FLY
Certification:	CE
Model Number:	MXH6-10

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiation

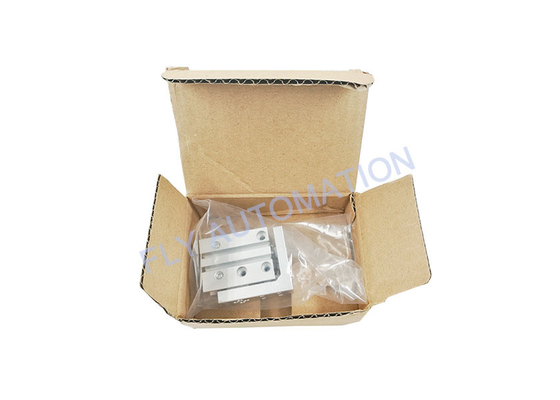

Packaging Details:	Plastic bags, boxes, cartons, Pallets or As customer's requirement
Delivery Time:	1-7 work days
Payment Terms:	Western Union, T/T, L/C, Paypal, Credit card
Supply Ability:	1000 pieces per 10 working days

Contact Now

Detailed Product Description

Fluid:	Double Acting	Piping Port Size:	M5
Maximum Operating Pressure:	0.7 MPa	Lubrication:	Non-lube
Cushion:	Rubber Bumper On Both Ends	Proof Pressure:	1.05 MPa
High Light:	MXH6-10 Pneumatic Air Cylinders , 1.05 MPa Pneumatic Air Cylinders , Double Acting Pneumatic SMC Cylinder

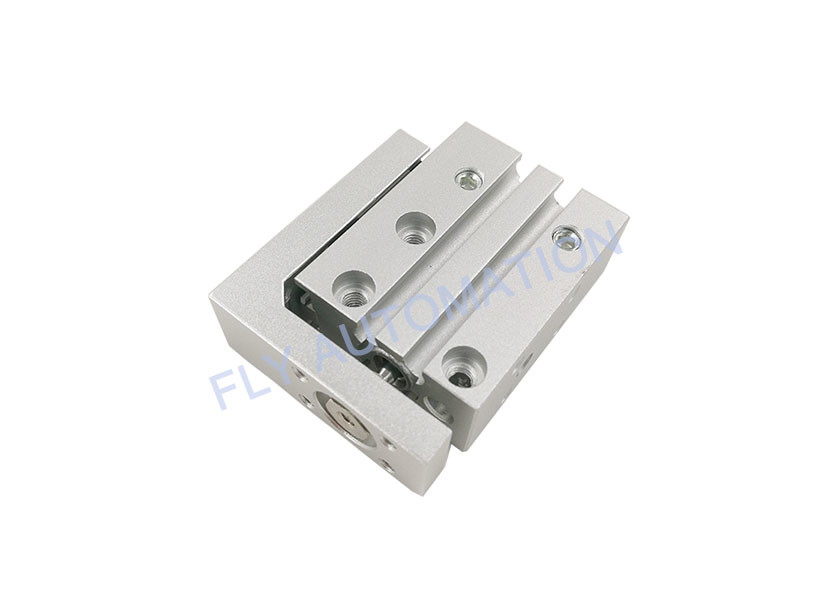

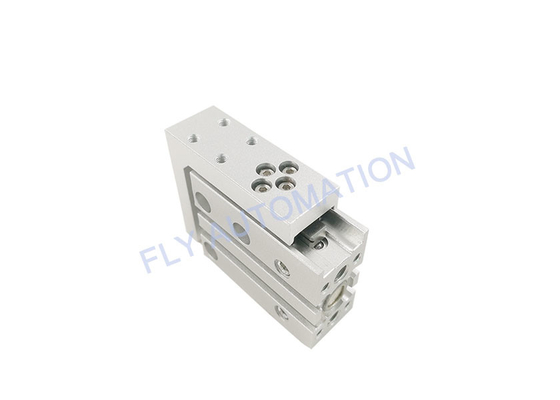

SMC MXH6-10 Compact Slide Pneumatic Air Cylinder Double acting 1.05 MPa Cylinder

Specifications
Bore size (mm)	6	10	16	20
Guide rail width (mm)	5	7	9	12
Fluid	Air
Action	Double acting
Piping port size	M5 x 0.8
Minimum operating pressure	0.15 MPa	0.06 MPa		0.05 MPa
Maximum operating pressure	0.7 MPa
Proof pressure	1.05 MPa
Ambient and fluid temperature	Without auto switch: –10 to 70°C (No freezing) With auto switch: –10 to 60°C (No freezing)
Piston speed	50 to 500 mm/s
Allowable kinetic energy (J)	0.0125	0.025	0.05	0.1
Lubrication	Non-lube
Cushion	Rubber bumper on both ends
Stroke length tolerance	+ 1.0 0

Theoretical Output (N)
Bore size (mm)	Rod size (mm)	Operating direction	Piston area (mm²)	Operating pressure (MPa)
Bore size (mm)	Rod size (mm)	Operating direction	Piston area (mm²)	0.3	0.5	0.7
6	3	OUT	28.3	8.49	14.2	19.8
6	3	IN	21.2	6.36	10.6	14.8
10	4	OUT	78.5	23.6	39.3	55
10	4	IN	66	19.8	33	46.2
16	6	OUT	201	60.3	101	141
16	6	IN	172	51.6	86	121
20	8	OUT	314	94.2	157	220
20	8	IN	264	79.2	132	185

SMC MXH6-10 Pneumatic Air Cylinders Double Acting 1.05 MPa

After-sale Service
One year quality guarantee Policy
We will check the goods quality before shipment. If there are some unexpected problems happen, we hope to solve the problems with buyer through friendly in the following ways:
1, If it is quality problem, buyer can submit argue within 15days after receiving the goods, buyer must provide photos or video and other evidence to seller for identify.
2, Man-made damaged, buyers take full responsibility.
3, Product quality processing program:
1) The buyer return the products for bad quality reasons for one year (not included those damages coursed by shipping or Man-made damaged ). A 15% restocking fee is assessed for any products returned in "used" condition. And then we will send a new product to buyer and pay for the resend shipping cost.
2) If the goods (total price including shipping is less than 10USD) has quality problems, we will resend a new product in buyer next order; if buyer don't plan to make a new order in the near term, buyer can pay the resend shipping cost and ask to resend a new product. If there is an issue with the products, please contact us– we will solve it as soon as we get your email.
