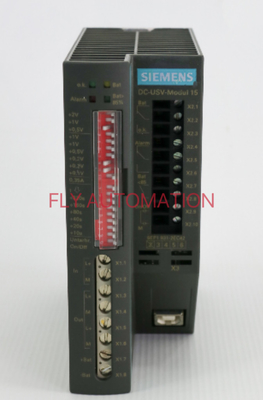

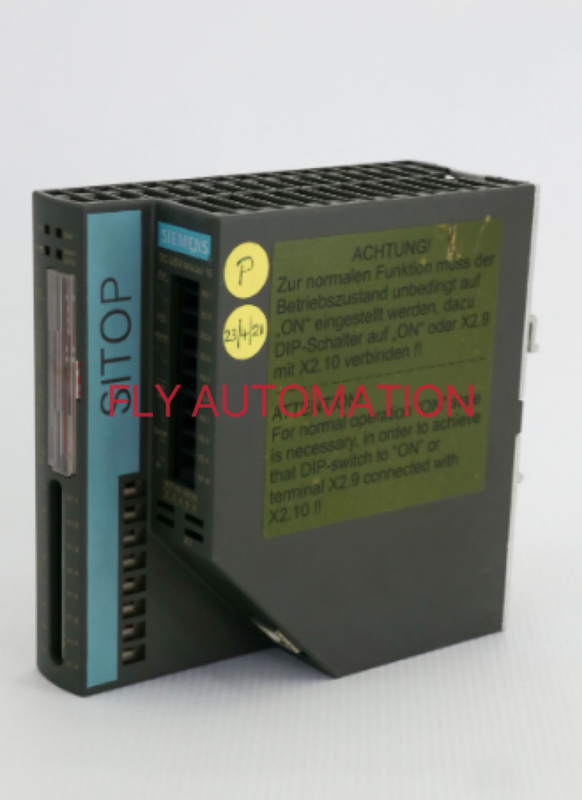

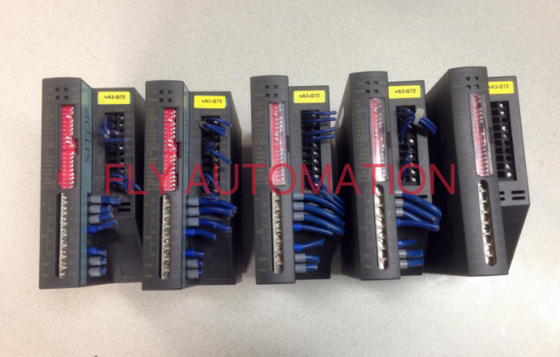

SIEMENS SITOP DC UPS Module 24V / 15A 6EP1931-2EC21

Product Details:

Place of Origin:	CHINA
Brand Name:	SIEMENS
Model Number:	6EP1931-2EC21

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	EXW USD584-700
Packaging Details:	carton
Delivery Time:	8-15 work days
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	100PCS Every month

Contact Now

Detailed Product Description

Product Family:

SITOP DC UPS

Input Voltage Range:

22 ... 29 V DC

Packaging Dimension:

14 X 14 X 6CM

Net Weight (kg):

0.4KG

Highlight:

SITOP DC UPS Module

24V DC UPS Module

Automation Control Components 6EP1931-2EC21

SIEMENS SITOP DC UPS Module 24 V/15 A 6EP1931-2EC21

SIEMENS SITOP DC UPS Module 24V / 15A 6EP1931-2EC21

Product Description
SITOP DC UPS MODULE 15A WITHOUT INTERF. SITOP DC UPS MODULE 24 V/15 A UNINTERRUPTIBLE POWER SUPPLY WITHOUT INTERFACE INPUT: 24 V DC/16 A OUTPUT: 24 V DC/15 A
Input
Supply voltage for DC Rated value	24 V
Voltage curve at input	DC
input voltage range	22 ... 29 V DC
Mains buffering
Type of energy storage	with batteries
Charging current
● 1	0.35 A
● 2	0.7 A
Output
Output voltage
● in normal operation for DC Rated value	24 V
● in buffering mode for DC Rated value	24 V
Formula for output voltage	Vin - approx. 0.5 V
ON-delay time typical	1 s
Voltage increase time of the output voltage typical	60 ms
Output current Rated value	15 A
Property of the output Short-circuit proof	Yes
Active power supplied typical	360 W
Efficiency
Efficiency in percent
● at rated output current at rated output current typical	96.20%
● in case of accumulator operation typical	96%
Active power loss
● at rated output current at rated output current typical	14 W
● in case of accumulator operation typical	15 W
Protection and monitoring
Product function
● reverse polarity protection against energy storage unit polarity reversal	Yes
● reverse polarity protection against input voltage polarity reversal	Yes
Signaling
Display version
● for normal operation	Normal operation: LED green (OK), floating changeover contact "Bat/OK" to setting "OK" ("OK" means: Voltage of the supplying power supply unit is greater than cut-in threshold set at the DC UPS module); Lack of buffer standby: LED red (alarm), floating changeover contact "Alarm/Bat" to setting "Alarm"; Battery replacement required: LED red (alarm) flashing with approx. 0.25 Hz, floating changeover contact "Alarm/Bat" switching with approx. 0.25 Hz; Energy storage > 85%: LED green (Bat > 85%), floating NO contact "Bat > 85" closed; Permissible contact current capacity: DC 60 V/1 A or AC 30 V /1 A
● in buffering mode	Buffered mode: LED yellow (Bat), floating changeover contact "OK/Bat" to setting "Bat"; Prewarning battery voltage < 20.4 VDC: LED red (alarm), floating changeover contact "Alarm/Bat" to setting "Alarm"; Energy storage > 85%: LED green (Bat > 85%), floating NO contact "Bat > 85" closed
