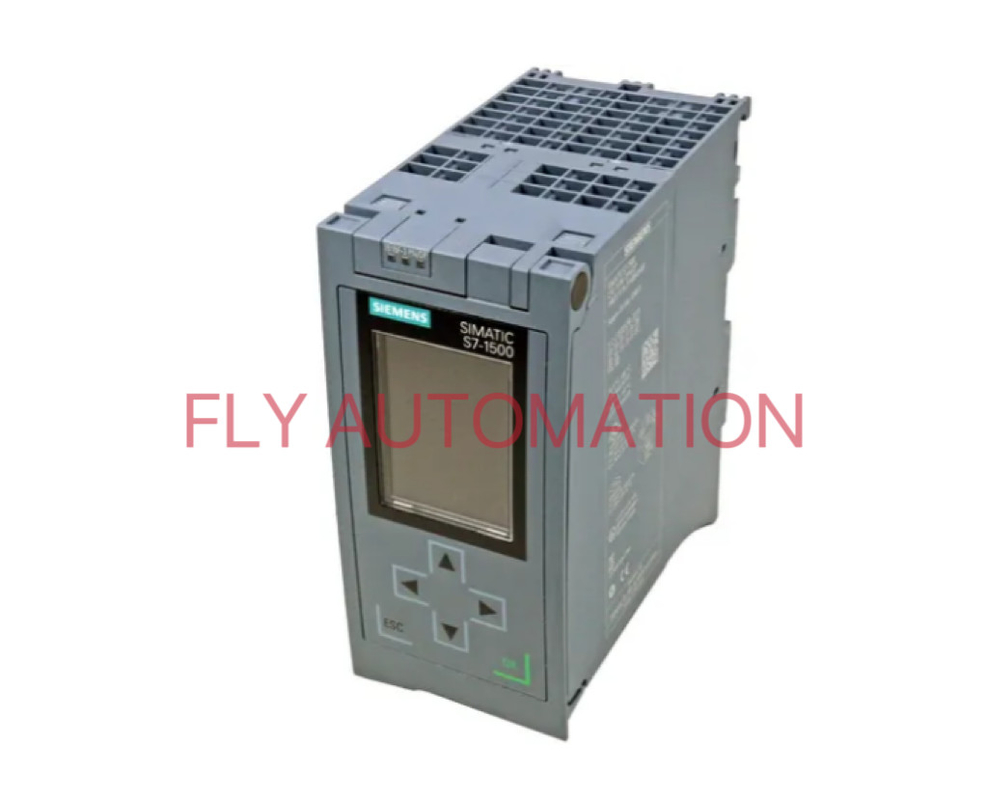

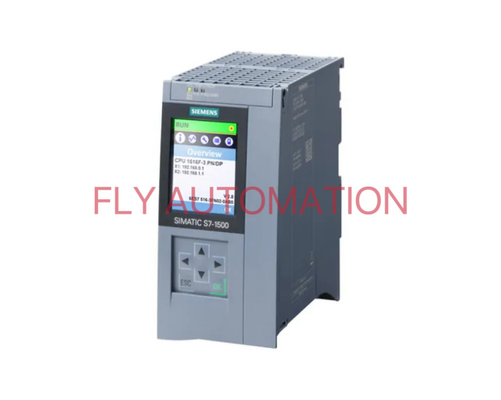

SIEMENS SIMATIC S7-1500F Central Processing Unit 6ES7 516-3FN02-0AB0

Product Details:

Place of Origin:	CHINA
Brand Name:	SIEMENS
Model Number:	6ES7 516-3FN02-0AB0

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	EXW USD7020-7050
Packaging Details:	carton
Delivery Time:	15-30 work days
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	100PCS Every month

Contact Now

Detailed Product Description

Range:	Simatic S7	Type Of Product:	Fail-safe CPUs
Product Phase:	Active	Weight (kg):	0.900000
Dimensions (cm):	7,00 X 12,90 X 14,70	Commodity Code:	85371091
Highlight:	SIMATIC S7-1500F Central Processing Unit , 6ES7 Central Processing Unit , 516-3FN02-0AB0 Automation Control Components

SIEMENS SIMATIC S7-1500F Central Processing Unit 6ES7 516-3FN02-0AB0

Description:

SIMATIC S7-1500F, CPU 1516F-3 PN/DP, central processing unit with 1.5 MB work memory for program and 5 MB for data, 1st interface: PROFINET IRT with 2-port switch, 2nd interface: PROFINET RT, 3rd interface: PROFIBUS, 10 ns bit performance, SIMATIC Memory Card required.

CPU Units		Expansion Units and Expansion I/O Units
Control method	Stored program	40 I/O points	20 I/O points
I/O control method	Cyclic scan refreshing	24 inputs	12 inputs
Program language	Ladder diagram	16 outputs	8 outputs
Instructions	Approx. 500	2 inputs and 1 output	8 inputs and 8 outputs
Program capacity	10K/5K steps	K or J thermocouple inputs	Pt or JPt inputs
Ethernet Ports		Power Supply Units
Connector	RJ45	Voltage	100 to 240VAC
Data Rate	10/100Base T	Operating voltage range	85 to 264VAC
Protocols	Modbus TCP	Power holding time	2 ms min.
CAN Port		Digital Outputs
Baud Rate	125K bps	Output Type	FET
Length	<500 meters	Operating Frequency	100 Hz
Protocols	Custom protocol	On-state Current, Max	200mA
Analog Inputs		Pulse Inputs
Resolution	16-bit	Voltage Range	12V-24V DC
Input Range	4~20mA	Off-state Voltage	8V DC
Input Type	Single ended	Typical Input Current	5mA 10VDC
Input Impedance	170Ω	Input Frequency	10KHz with filters off
