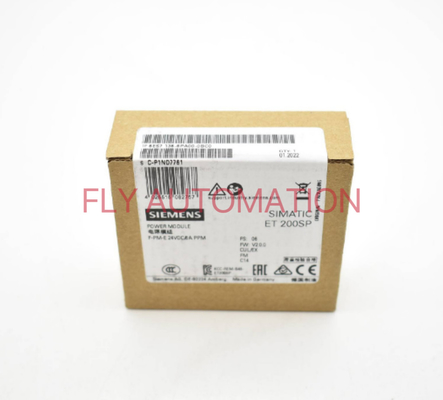

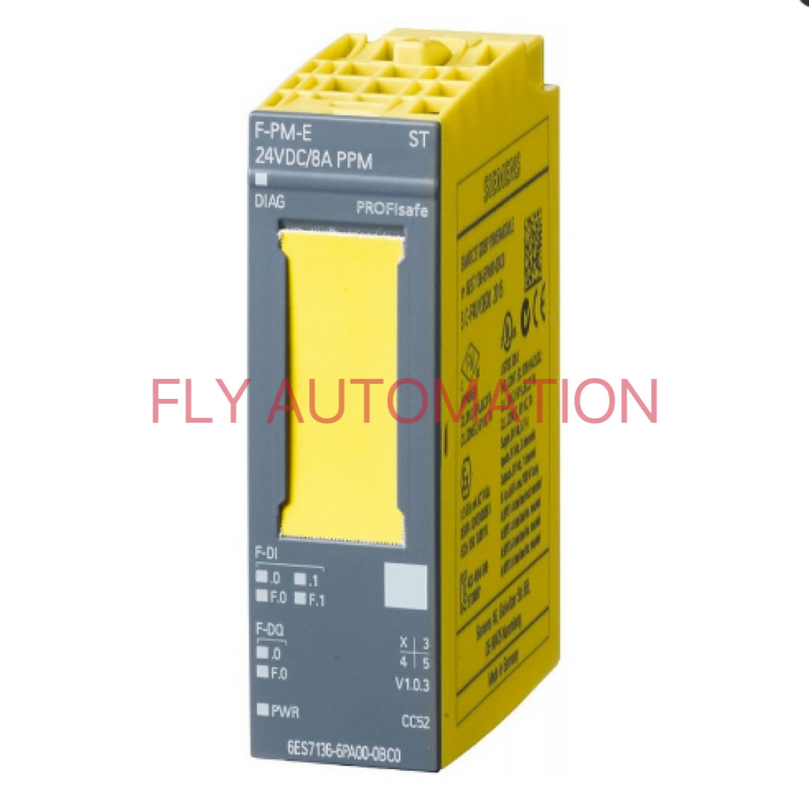

SIEMENS SIMATIC ET 200SP Automation Control Components 6ES7136-6PA00-0BC0

Product Details:

Place of Origin:	CHINA
Brand Name:	SIEMENS
Model Number:	6ES7136-6PA00-0BC0

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	EXW USD1055-1100
Packaging Details:	carton
Delivery Time:	15-30 work days
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	100PCS Every month

Contact Now

Detailed Product Description

Product Type Designation:	F-PM-E 24 V DC/8 A PPM ST	Usable BaseUnits:	BU Type C0
Rated Value (DC):	24 V	Ambient Temperature During Operation:	0-60 °C
Dimensions:	0.08KG
High Light:	6ES7136-6PA00-0BC0 , ET 200SP Automation Control Components , Simatic ET 200SP

SIEMENS SIMATIC ET 200SP 6ES7136-6PA00-0BC0

Name: SIEMENS SIMATIC ET 200SP Automation Control Components 6ES7136-6PA00-0BC0
Brand: SIEMENS
SKU: 6ES7136-6PA00-0BC0
Price: 1055 USD
Availability: InStock
Rating: 4.6 (192 reviews)

Description:
SIPLUS ET 200SP F-PM-E 24VDC/8A PPM rail based on 6ES7136-6PA00-0BC0 with conformal coating, -30…+60 °C, OT1 with ST1/2 (+70 °C für 10 minutes), fail-safe power module PROFIsafe, 24 V DC safe shutdown of DQ and F-DQ up to PL D/SIL2 or PL E/SIL3 2 safe digital inputs 1 safe digital output PPM

SIPLUS ET 200SP F-PM-E 24VDC/8A PPM-RAIL -25 ... +55°C T1 at 70°C for 10 min with a coating formed based on 6ES7136-6PA00-0BC0 . F-PM-E PPM Profisafe, for ET 200SP; switching 24V DC safe of DQ and F-DQ up to PL D / SIL2 or PL E / SIL3 2 digital inputs safe 1 digital output safe PPM.

Additional data

Product

Article Number (Market Facing Number)

6AG2136-6PA00-1BC0

Product Description

SIPLUS ET 200SP F-PM-E 24VDC/8A PPM rail based on 6ES7136-6PA00-0BC0 with conformal coating, -30…+60 °C, OT1 with ST1/2 (+70 °C für 10 minutes), fail-safe power module PROFIsafe, 24 V DC safe shutdown of DQ and F-DQ up to PL D/SIL2 or PL E/SIL3 2 safe digital inputs 1 safe digital output PPM

Product family

SIPLUS extreme RAIL fail-safe special modules

Product Lifecycle (PLM)

PM300:Active Product

Price data

Region Specific PriceGroup / Headquarter Price Group

473 / 473

Surcharge for Raw Materials

None

Metal Factor

None

Delivery information

Export Control Regulations

AL : N / ECCN : N

Standard lead time ex-works

117 Day/Days

Net Weight (kg)

0,084 Kg

Packaging Dimension

6,60 x 8,90 x 3,80

Package size unit of measure

Quantity Unit

1 Piece

Packaging Quantity

Additional Product Information

EAN

4047618072605

UPC

804766353246

Commodity Code

85389091

LKZ_FDB/ CatalogID

A&DSE/SIP ADD

Product Group

4C03

Group Code

R151

Country of origin

Germany

Compliance with the substance restrictions according to RoHS directive

Since: 08.08.2013

Product class

B: return restricted, please contact your Siemens partner/contact

WEEE (2012/19/EU) Take-Back Obligation

Yes

REACH Art. 33 Duty to inform according to the current list of candidates

Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

4,4'-isopropylidened... CAS-No. 80-05-7 > 0, 1 % (w / w)

4,4'-isopropylidenediphenol (Bisphenol A, BPA)

Classifications

	Version	Classification
eClass	6	27-24-26-11
eClass	7.1	27-24-26-11
eClass	8	27-24-26-11
eClass	9	27-24-26-11
eClass	9.1	27-24-26-11
ETIM	5	EC002583
ETIM	6	EC002583
ETIM	7	EC002583
ETIM	8	EC002583
