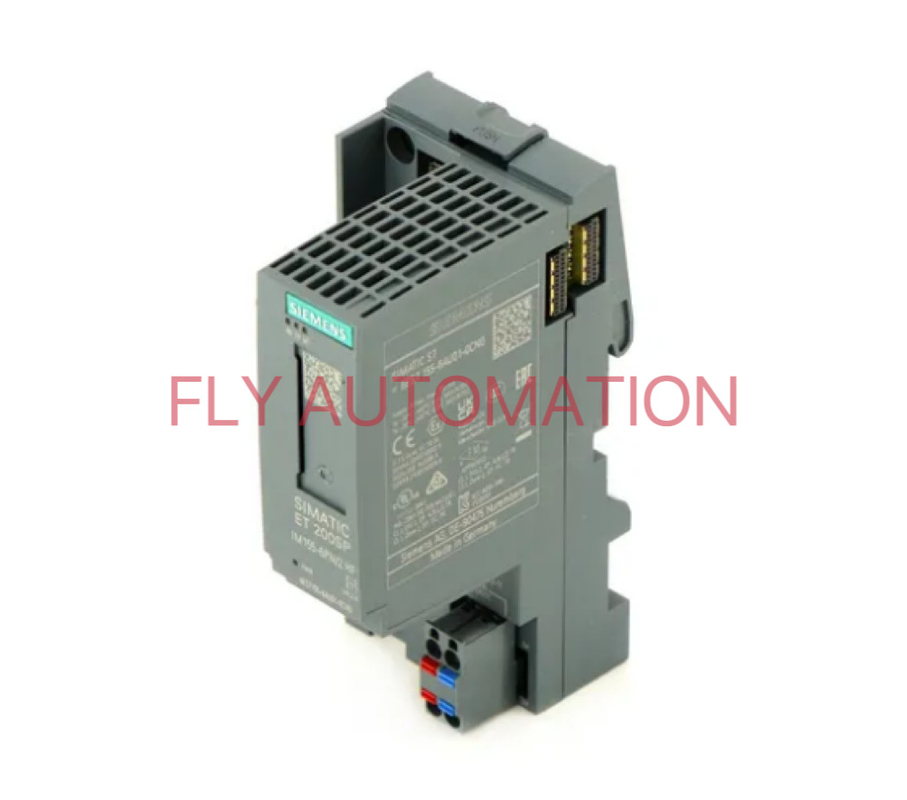

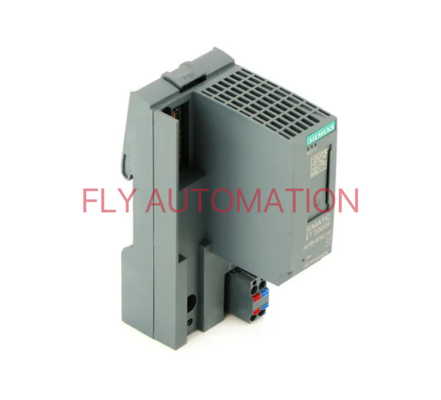

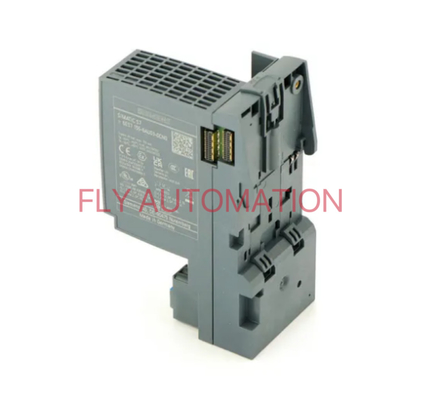

SIEMENS Simatic ET200 PLC - ET 200SP Profinet 2-Port 6ES7155-6AU01-0CN0

SIEMENS Simatic ET200 PLC - ET 200SP Profinet 2-Port 6ES7155-6AU01-0CN0

  • SIEMENS Simatic ET200 PLC - ET 200SP Profinet 2-Port 6ES7155-6AU01-0CN0
  • SIEMENS Simatic ET200 PLC - ET 200SP Profinet 2-Port 6ES7155-6AU01-0CN0
  • SIEMENS Simatic ET200 PLC - ET 200SP Profinet 2-Port 6ES7155-6AU01-0CN0
  • SIEMENS Simatic ET200 PLC - ET 200SP Profinet 2-Port 6ES7155-6AU01-0CN0
  • SIEMENS Simatic ET200 PLC - ET 200SP Profinet 2-Port 6ES7155-6AU01-0CN0
SIEMENS Simatic ET200 PLC - ET 200SP Profinet 2-Port 6ES7155-6AU01-0CN0
Product Details:
Place of Origin: CHINA
Brand Name: SIEMENS

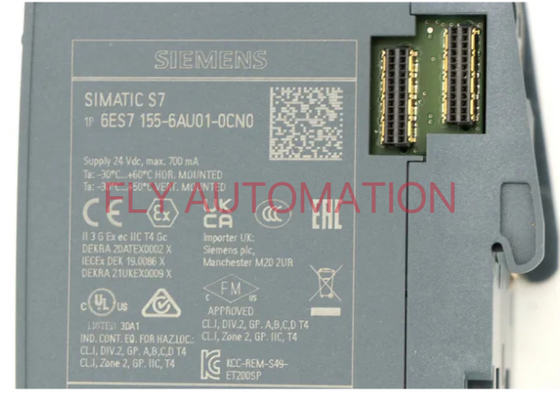

Model Number: 6ES7155-6AU01-0CN0
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: EXW USD733-800
Packaging Details: carton
Delivery Time: 15-30 work days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 100PCS Every month
Contact Now
Detailed Product Description
Range: Simatic ET200 Subrange: ET 200SP
Weight (kg): 0.16 Dimensions (cm): 5,00 X 7,40 X 11,70
High Light:

PLC ET 200SP Profinet

,

2 Port ET 200SP Profinet

,

6ES7155-6AU01-0CN0

SIEMENS Simatic ET200 PLC - ET 200SP PROFINET 2-port 6ES7155-6AU01-0CN0

SIEMENS Simatic ET200 PLC - ET 200SP Profinet 2-Port 6ES7155-6AU01-0CN0

Description:

SIMATIC ET 200SP, PROFINET, 2-port interface module IM 155-6PN/2 High Feature, 1 slot for BusAdapter, max. 64 I/O modules and 16 ET 200AL modules, S2 redundancy, multi-hotswap, 0.25 ms, isochronous mode, optional PN strain relief, including server module.



PROFINET Interface Module IM 155-6PN/2 High Feature
  • Interface module for connecting the ET 200SP station to PROFINET IO
  • 24 V DC supply for interface module and backplane bus
  • Integrated 2-port switch for line configuration
  • Handling of complete data transfer with the controller
  • Data exchange with the I/O modules via the backplane bus
  • Support of identification data I&M0 to I&M3
  • Delivery including server module
  • BusAdapter with integrated 2-port switch for individual selection of the PROFINET IO connection system can be ordered separately
PROFIBUS IM 155‑6DP High Feature interface module
  • Max. 32 I/O modules, also PROFIsafe modules with complete diagnostic support
  • Max. 244 bytes in each case for input and output data per module and per station
  • Data update time: Typ. 5 ms
  • PROFIBUS connection via 9-pin sub‑D socket
  • Bundle including server module and PROFIBUS plug
BusAdapter (BA)

A BusAdapter can be used to adapt the universal PROFINET IO interface of the interface module to the specific requirements of the environment of use. If a connection socket is faulty or when changing the connection system at a later stage, it is only necessary to replace the BusAdapter.

The following BusAdapters are available:

  • BA 2×RJ45
    With two sockets for commercially available RJ45 plugs; suitable for standard applications with moderate mechanical strength and EMI resistance
  • BA 2×FC
    With two FastConnect terminals for direct connection of the bus cables; suitable for applications with higher mechanical strength and/or EMI resistance (5x higher resistance against vibrations and EMI)
  • BA 2×SCRJ
    With two optical PROFINET interfaces for connection of optical-fiber cables via SC RJ plug-in connectors (5x higher resistance against vibrations and EMI; PROFINET cable lengths between two stations up to 300 m)
  • BA 2×LC
    With two optical PROFINET interfaces for connecting fiber-optic cables LC multimode glass-fiber
  • BA LC/RJ45
    With two PROFINET interfaces:



    • 1 × optical, for connection of fiber-optic cables via LC multimode fiber-optic cable (port 1)
    • 1 × electrical, for connection of bus cable with standard RJ45 plug (port 2)
  • BA LC/FC
    With two PROFINET interfaces:



    • 1 × optical, for connection of fiber-optic cables via LC multimode fiber-optic cable (port 1)
    • 1 × electrical, for direct connection of FastConnect bus cable (port 2)
  • BA SCRJ/RJ45
    With two PROFINET interfaces:



    • 1 × optical, for connection of fiber-optic cables via SC RJ connectors (port 1)
    • 1 × electrical, for connection of bus cable with standard RJ45 plug (port 2)
  • BA SCRJ/FC
    With two PROFINET interfaces (5x higher resistance against vibrations and EMI):



    • 1 × optical, for connection of fiber-optic cables via SC RJ connectors (port 1)
    • 1 × electrical, for direct connection of FastConnect bus cable (port 2)

Design

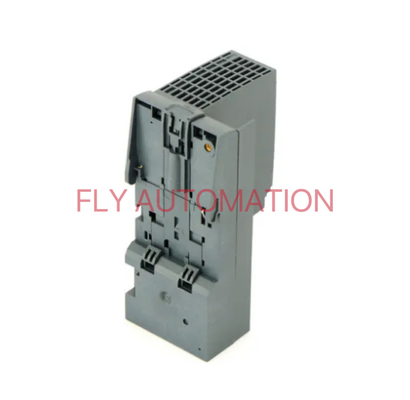

The IM 155-6PN/2 High Feature interface module is snapped directly onto the DIN rail.

Device features:

  • Diagnostics displays for errors (ERROR), Maintenance (MAINT), operation (RUN) and power supply (PWR) as well as one link LED per port
  • Optional inscription with labeling strips (light gray), available as:
    • Roll for thermal transfer continuous feed printer with 500 strips each
    • Paper sheets for laser printer, A4 format, with 100 strips each
  • Optional equipping with a reference ID label
