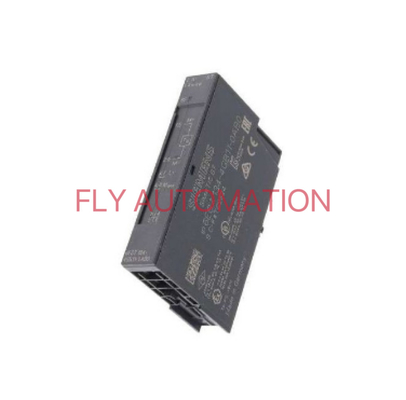

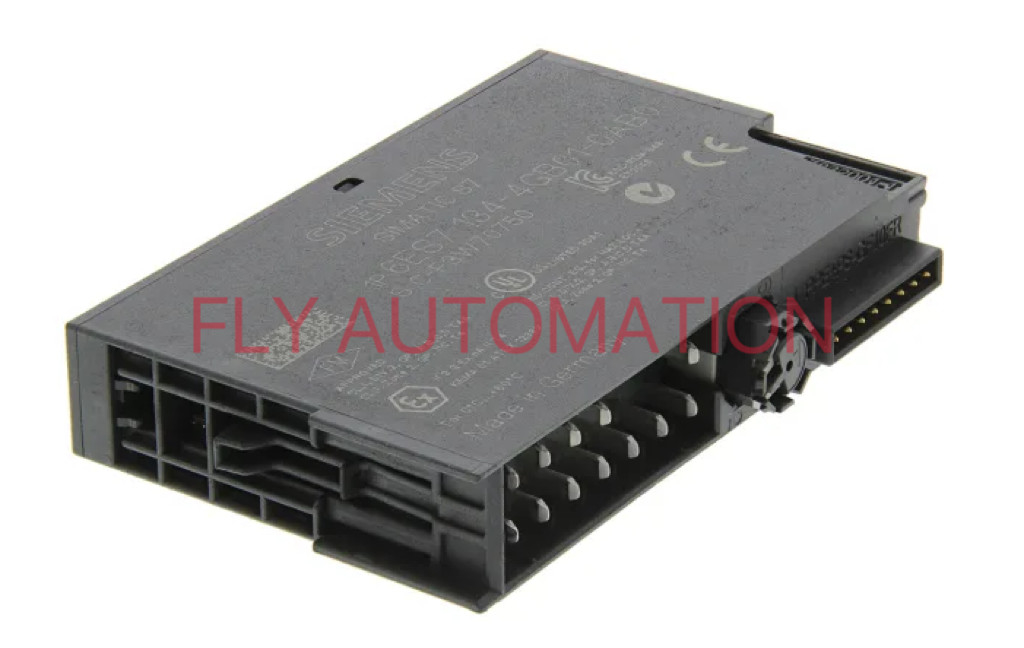

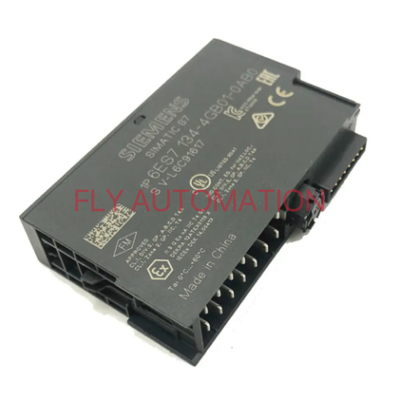

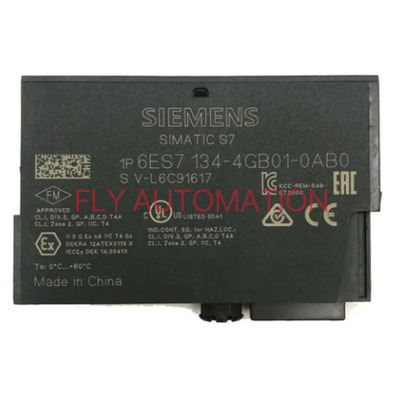

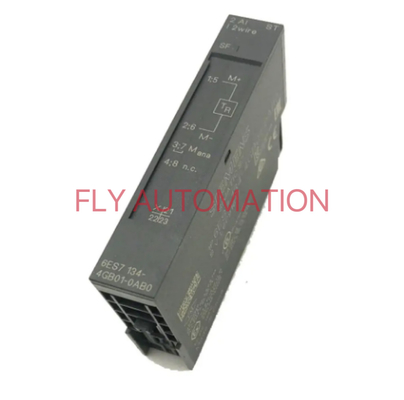

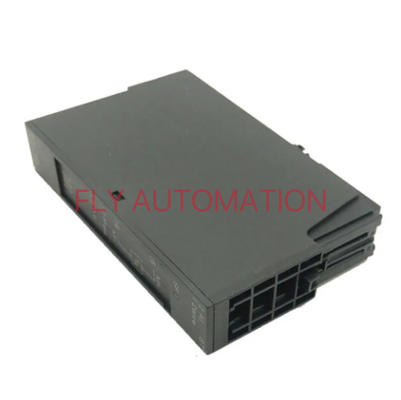

SIEMENS Electronic Modules for ET 200S 6ES7134-4GB01-0AB0

SIMATIC DP, Electronics module ET 200S 4AI standard I-2-wire, 4-20 mA; 13 bit, 15 mm width, for 2-wire transducer Cycle time 40
ms/module with SF LED (group fault)

The right solution for every application With SIMATIC ET 200 a wide range of distributed I/O systems is available – for solutions in the control cabinet or without a control cabinet directly at the machine, as well as for applications in hazardous areas.

SIMATIC ET 200 systems for cabinet free configurations are installed in a rugged, fiber-glass reinforced plastic enclosure, making them resistant to shock and dirt, as well as watertight.

The modular design makes it possible to scale and expand the ET 200 systems simply and in small stages. Already integrated add-on modules reduce costs, and at the same time offer a widely diverse range of possible applications.

You can choose from many different combination options: digital and analog inputs/outputs, intelligent modules with CPU functionality, safety engineering, motor starters, pneumatic systems, frequency converters, and diverse technology modules.

Connect this PLC I/O module from Siemens to your ET 200S series logic-controlled system to add two analogue inputs. The unit has an input range between 4 and 20mA to read the signals of commonly used industrial devices, such as sensors. It communicates these to your CPU, so you can programme different types of equipment to work together. This means you can streamline processes on manufacturing and assembly lines. The module is fitted with diagnostic tools, including messaging and a status LED, to help you quickly detect group errors.

• Reverse polarity protection to help protect equipment from electrical damage
• Compact size of 15 (width) and 52mm (depth) means it uses minimal space on your panel
• Wide ambient operating temperature between 0°C and +50°C for use in demanding environments
• Light weight of 40g means it's easy to handle
