| Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
 |
| Place of Origin: | China |
| Brand Name: | FESTO |

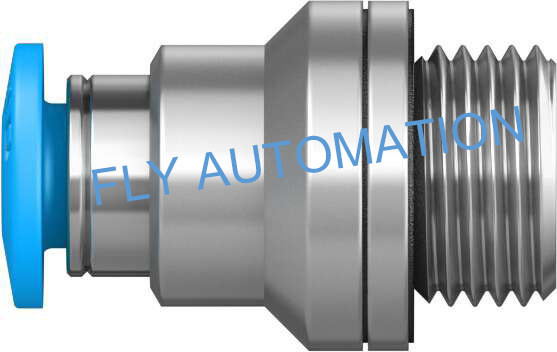

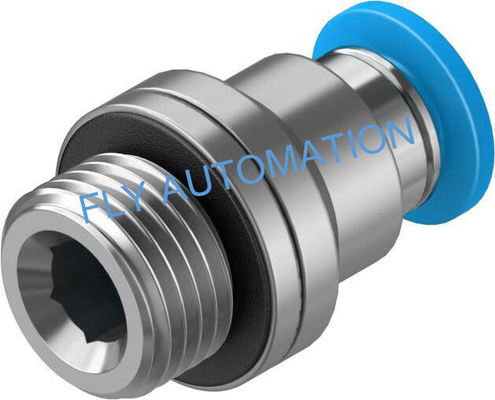

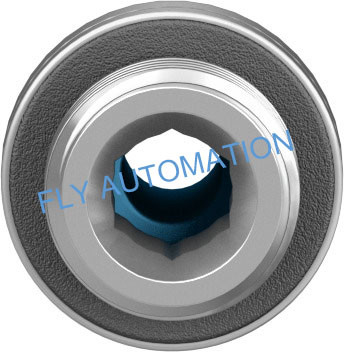

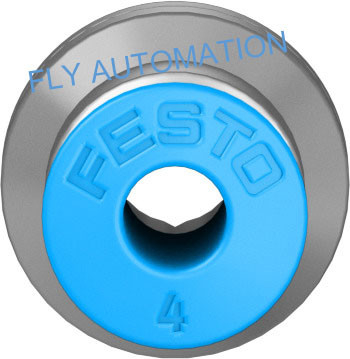

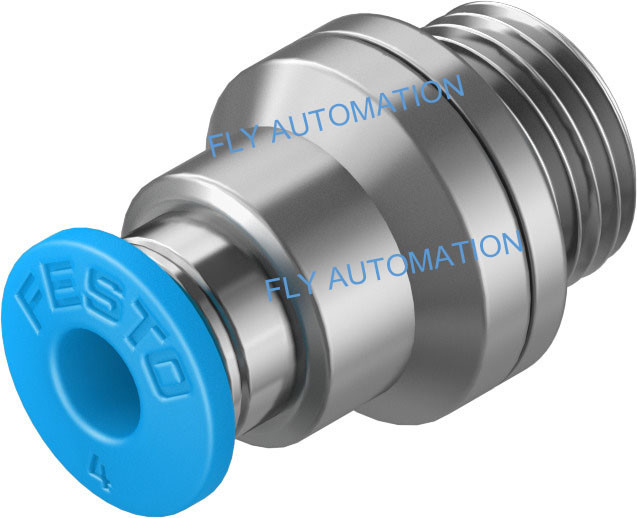

| Model Number: | QS-G1/8-4-I |
| Minimum Order Quantity: | 10 PCS |
|---|---|
| Price: | EXW USD2-5 |
| Packaging Details: | carton，OPP bag |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 6000 pcs per month |
| Nominal Size: | 2.6 Mm | Order No: | 186106 |
|---|---|---|---|
| Brand: | FESTO | GTIN: | 4052568039196 |
| Specifications: | QS-G1/8-4-I | Weight: | 7.7 G |
| High Light: | Pneumatic Tube Fittings QS-G1/8-4-I,186106 Push In Fitting,Sealing Ring Push In Fitting |
||
Nominal size:2.6 mm
Order no:186106
Brand:FESTO
GTIN: 4052568039196
Specifications:QS-G1/8-4-I
Weight:7.7 g
Product detial as follow
| Feature | Value |
| Size | Standard |
| Nominal size | 2.6 mm |
| Type of seal on screw-in stud | Sealing ring |
| Mounting position | optional |
| Size of pack | 10 |
| Design | Push-pull principle |
| Operating pressure complete temperature range | -0.95 bar ... 6 bar |
| Temperature-dependent operating pressure | -0.95 bar ... 14 bar |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10 °C ... 80 °C |
| Nominal torque | 7 Nm |
| Tolerance for nominal tightening torque | ± 20% |
| Product weight | 7.7 g |
| Pneumatic connection, port 1 | Male thread G1/8 |
| Pneumatic connection, port 2 | For tubing outside diameter of 4 mm |
| Colour of release ring | Blue |
| Note on materials | RoHS-compliant |
| Material housing | Brass Nickel-plated |
| Material release ring | POM |
| Material tubing seal | NBR |
| Material tubing clamp component | High-alloy stainless steel |
About product
1.Standard series.
2.Wide range of variants: wide selection for maximum flexibility in standard applications.
3.PBT and nickel-plated brass.
4.Operating media: compressed air, vacuum, (water).
5.Wide range of applications.
6.With a variety of combinations of different models, it has a high flexibility in various standard applications Activity.
Another size as follow
| Specifications | Order | GTIN | Weight | EXW Price |
| QS-G1/8-4-I | 186106 | GTIN: 4052568039196 | 7.7 | USD2-5 |
| QS-G1/8-6-I | 186107 | GTIN: 4052568014636 | 8.3 | USD2-5 |
| QS-G1/8-8-I | 186109 | GTIN: 4052568014643 | 12 | USD2-5 |
| QS-G1/8-10-I | 132999 | GTIN: 4052568028909 | 19 | USD2-5 |
Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.
After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
There are many specifications of connectors, price and delivery time. Welcome to inquire.
