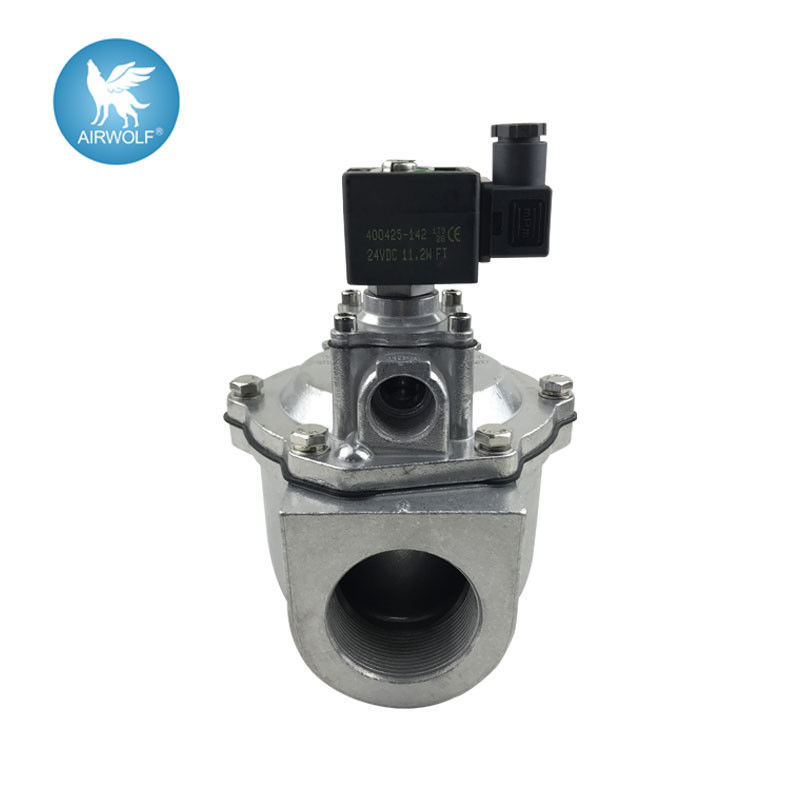

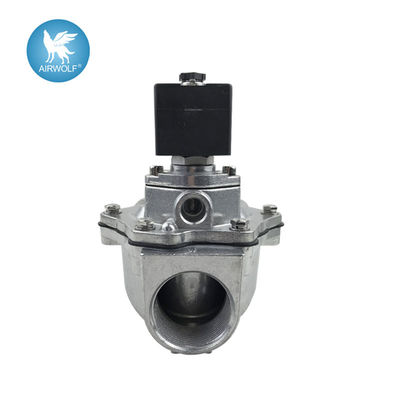

High Flow Angle Type 2" threaded SCG353A050 0.35-0.85Mpa NBR Pulse Jet Valve
FEATURES
• The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation
• The high flow, angle type bodies in combination with the special main diaphragm assemblies give theunique operating features required for dust collector service applications
• The design with integral compression fittings will facilitate installation because there is no need for threaded piping
• The high quality diaphragms are reinforced and wear resistant to guarantee a long operating life, even under harsh conditions
• Integral pilot operated valves satisfy all relevant EC directives
ELECTRICAL CHARACTERISTICS
Coil insulation class F
Connector Spade plug (cable Ø 6 - 10 mm)
Connector specification ISO 4400 / EN 175301-803, form A
Electrical safety IEC 335
Standard voltages DC (=): 24V
(Other voltages and 60 Hz on request) AC (~): 24V - 115V - 230V / 50 Hz
| Ordering Code |
Port Size |
Orifice |
Flow Value |
Coil type |
| G Threaded |
mm |
m3/h |
l/min |
| SCG353A047 |
1 1/2" |
52 |
46 |
768 |
400425 |
| SCG353A050 |
2" |
66 |
77 |
1290 |
400425 |
| SCG353A051 |
2 1/2" |
66 |
92 |
1540 |
400425 |
| SCG353.060 |
3" |
75 |
170 |
2833 |
400425 |
| Construction |
| Body |
Aluminum |
| Core tube |
Stainless steel |
| Core and Plugnut |
Stainless steel |
| Core Spring |
Stainless steel |
| Sealing & disc |
CR (chloroprene) |
| Diaphragm |
NBR(nitrile/buna-n) |
| Shading coil |
Copper |
| Connector |
DIN43650A |
| Voltage |
DC: 24V, AC: 24V,48V,110V,230V |
| Working Temperature |
-20 to +85℃ |
| Protection Class |
IP65 |
| Coil Insulation Class |
F |
| Working Pressure |
0.35-0.85Mpa |
SUITABLE FOR
Dust collector applications, in particular for reverse pulse jet filter cleaning and its variations, including bag filters, cartridge filters and envelope filters, ceramic filters and sintered metal fibre filters.
High purity Aluminum Alloy casting body, the top of NBR diaphragm, make the diaphragm has high tensile strength, ageing resistance and low wear, the electromagnetic pulse valve injection is longer than that of 1 million or three to five years with no damage.
All high-quality imported finished diaphragm, diaphragm assembly in the manufacturing process all checks, qualified and then into the assembly line. Each finished valve is tested by ventilation.
Electromagnetic pulse valve coil is higher than the national standard grade insulation injection in the protection class is IP65 full filling, full copper enameled wire, coil number higher than the national standard, ensure the electromagnetic pulse valve 6 million is energized is not damaged, the electromagnetic coil can rotate 360 DEG in the pulse valve, the junction box can rotate 90 degrees to 4 x can be installed to prevent exposure in the open when rain enters, greatly facilitate the installation of different angles.
Drawings:
| Ordering Code |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
L |
Weight |
| SCG353A047 |
80 |
50 |
30 |
71 |
130 |
136 |
45 |
G 3/8" |
131 |
160 |
178 |
1.40 |
| SCG353A050 |
80 |
50 |
30 |
95 |
168 |
165 |
45 |
G 3/8" |
165 |
210 |
227 |
2.90 |
| SCG353A051 |
80 |
50 |
30 |
95 |
168 |
165 |
45 |
G 3/8" |
165 |
210 |
227 |
2.60 |
| SCG353.060 |
80 |
50 |
30 |
143 |
240 |
192 |
45 |
G 1/2" |
165 |
258 |
275 |
4.10 |
