S20 Rotary Vibration Pneumatic System Components

Product Details:

Place of Origin:	China
Certification:	CE
Model Number:	S20

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	Negotiation
Packaging Details:	Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Delivery Time:	within 1-30 working days after payment
Payment Terms:	T/T , Western Union
Supply Ability:	1000 pcs

Contact Now

Detailed Product Description

Model Code:	S20	Applies To:	Animal Feed Milling
DUTY CYCLE:	Continuous	WORKING PRESSURE:	2 Bar To 6 Bar
PNEUMATIC CIRCUIT:	Filter + Flow Control Valve + Lubrification + 3/2 Ways Valve	AIR SUPPLY QUALITY:	Class 5.4.4.
WORKING TEMPERATURE:	-20 °C To 200 °C	TECHNOLOGY:	Rotary Vibration - High Frequency
Highlight:	pneumatic equipment components , pneumatic system components , Rotary Vibration Pneumatic System Components

1. Product name: S20 cement lime Oli quick connect pneumatic fittings Paint & Varnish Steel Alloy Roller

2. Suit for

PRODUCT SERIES	APPLICATIONS	POWDERS	FEATURES	BENEFITS
S	Silos	Dry powders	Filter sleeve cleaning	Economical
	Hoppers	Granules	Suitable for outdoor use	Low air consumption
	Piping	Plastics	Resistant to oxidation	High frequency vibration
	Chutes	Sand	Atex II2G c Tx
	Compacting	Ashes	Atex II2D c Tx
		Cement
		Lime

3. Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. We have a variety of ways to deliver goods, usually DHL, Fedex, TNL will be normal ways, If you require use of a courier, we can do it.
4. Also we can send by your delivery acount if you want.

4. Product show

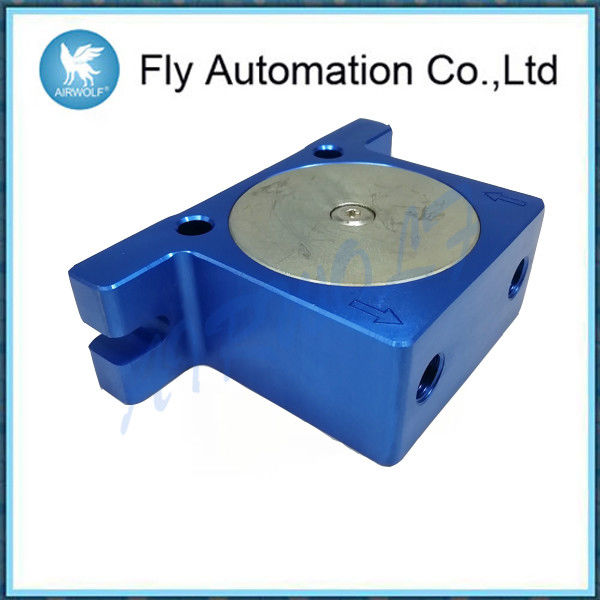

S20 Rotary Vibration Pneumatic System Components

5. Applies to

1. Animal Feed Milling

2. Flour Milling

3. Paint & Varnish Processing

4. Plastics Processing

6. Data

MODEL	VIBRATION			F.C. MAX						AIR CONSUMPTION
	Vpm			2 bar (29 psi)		4 bar (58psi)		6 bar (87 psi)		2 bar (29 psi)		4 bar (58psi)		6 bar (87 psi)
	2 bar (29 psi)	4 bar (58psi)	6 bar (87 psi)	KG	LB	KG	LB	KG	LB	l/min	CF/min	l/min	CF/min	l/min	CF/min
S8	25500	31000	35000	13	29	26	57	36	79	83	2.9	145	5.1	195	6.9
S10	22500	28000	34000	25	55	47	103	71	156	92	3.2	150	5.3	200	7.1
S13	15000	18500	22500	32	70	55	121	87	191	94	3.3	158	5.6	225	7.9
S16	13000	17000	19500	45	99	80	176	110	242	122	4.3	200	7.1	280	9.9
S20	10500	14500	16500	72	158	122	268	172	378	130	4.6	230	8.1	340	12
S25	9200	12200	14000	93	205	157	345	205	451	160	5.7	290	10.2	425	15
S30	7800	9700	12500	151	332	247	543	321	706	215	7.6	375	13.2	570	20.1
S36	7300	9000	10000	206	453	315	693	405	891	260	9.2	475	16.8	675	23.8

7. Drawing

Drawing

DIMENSIONAL SPECIFICATIONS
MODEL	A		B		C		D		E		F		IN-OUT	WEIGHT
MODEL	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in	IN-OUT	kg	lb
S8	50	2	86	3.4	68	2.7	12	0.5	20	0.8	7	0.3	1/8" BSPP	0.13	0.29
S10	50	2	86	3.4	68	2.7	12	0.5	20	0.8	7	0.3	1/8" BSPP	0.13	0.9
S13	65	2.6	113	4.5	90	3.5	16	0.6	25	1	9	0.4	1/4" BSPP	0.26	0.57
S16	65	2.6	113	4.5	90	3.5	16	0.6	28	1.1	9	0.4	1/4" BSPP	0.3	0.66
S20	80	3.2	128	5.1	104	4.1	16	0.6	33	1.3	9	0.4	1/4" BSPP	0.53	1.17
S25	80	3.2	128	5.1	104	4.1	16	0.6	38	1.5	9	0.4	1/4" BSPP	0.63	1.39
S30	100	3.9	160	6.3	130	5.1	20	0.8	45	1.8	11	0.4	3/8" BSPP	1.13	2.49
S36	100	3.9	160	6.3	130	5.1	20	0.8	50	2	11	0.4	3/8" BSPP	1.34	2.95

8. S - ROTARY PNEUMATIC VIBRATORS - BALL

APPLICATION: Hopper and silo - screen - vibrating table - chute

POWDER: Dry and granular

PROBLEM SOLVING: Friction reduction - separation

9. Features

DUTY CYCLE: Continuous

WORKING PRESSURE: From 2 bar to 6 bar (from 29 psi to 87 psi)

PNEUMATIC CIRCUIT: Filter + flow control valve + lubrification + 3/2 ways valve

AIR SUPPLY QUALITY: Class 5.4.4.

WORKING TEMPERATURE: From -20 °C to 200 °C (from -4 °F to 392 °F)

MAX NOISE LEVEL: 90 dB(a)

TECHNOLOGY: Rotary vibration - high frequency

ATEX: II 2D C TX, II 2G C TX

MATERIAL: Aluminium body and zinc plate cover
