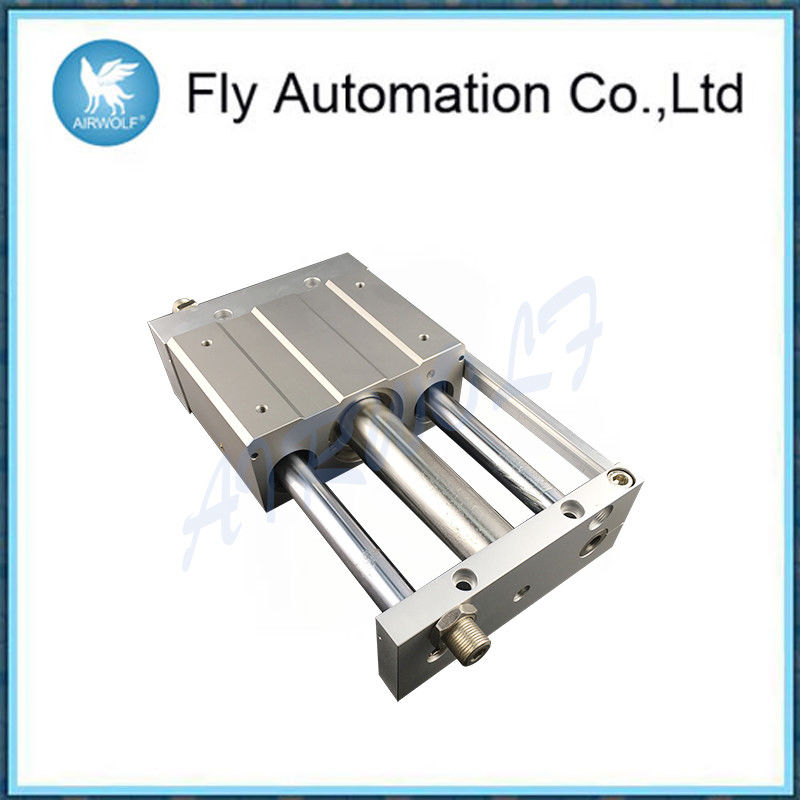

Pneumatic Rubber Bumper Cylinder CY1L40H-150 40mm Stainless Steel Long Life Design Cylinder
Long life design
Ball bushings having excellent trafficability are used in the guides.Ball bushing bearing: With grease cup
Easy piping and wiring
Hollow shafts are used, and centralization of ports on one side makes piping easy.Auto switches can be mounted through the use of special switch rails.
Shock absorbers and adjustmentbolt are standard equipment
Impacts at stroke end due to high speed use can be absorbed, and fine adjustment of the stroke is possible.
Typical Applications
Printing (Tension Control)
Semiconductor (spot welding machine, chip grinding)
Automation Control
Robot
| Models |
| Style |
Bearing style |
Model |
Bore size (mm) |
With auto switch |
Adjustment style |
| Slider style |
Ball bushing |
CY1L |
6, 10, 15, 20,
25, 32, 40 |
D-A7/A8
D-F7/J7 |
Adjustment bolt
Shock absorber |
| Specifications |
| Fluid |
Air |
| Proof pressure |
1.05MPa |
| Maximum operating pressure |
0.7MPa |
| Minimum operating pressure |
0.18MPa |
| Ambient and fluid temperature |
–10 to 60°C |
| Piston speed (1) |
50 to 1000mm/s |
| Cushion |
Shock absorber/Rubber bumper |
| Lubrication |
Non-lube |
| Stroke length tolerance |
Unrestricted |
| Standard equipment |
Auto switch mounting rail |
| Standard Stroke |
Bore size
(mm) |
Standard stroke (mm) |
Maximum availablestroke
(mm) |
| 6 |
50, 100, 150, 200 |
300 |
| 10 |
50, 100, 150, 200, 250, 300 |
500 |
| 15 |
50, 100, 150, 200, 250, 300, 350
400, 450, 500 |
750 |
| 20 |
100, 150, 200, 250, 300, 350
400, 450, 500, 600, 700, 800 |
1000 |
| 25 |
1500 |
| 32 |
| 40 |
100, 150, 200, 250, 300, 350
400, 450, 500, 600, 700, 800
900, 1000 |
1500 |
Packaging shipping
1. If order is not big enough, we will provide Door To Door service, we cooperate with UPS,DHL,FEDEX,TNT all year round,we gurantee that the shipping price that we offer to you is the most favorable price among so many suppliers in China.
2. By Air or By Sea through your forwarder is acceptable, if you have no forwarder in China, we also could find you cost-effective forwarder for your reference.
Warranty
All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
Quality Standards
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date56 of shipment quality assurance, according to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise objections.
Samples
You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.
