RoHS Pneumatic Festo Solenoid Valve MVH-5/3G-1/8-S-B 30997 GTIN4052568114329

Product Details:

Place of Origin:	China
Brand Name:	FESTO
Model Number:	MVH-5/3G-1/8-S-B

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	EXW USD180-200
Packaging Details:	Plastic bag, Carton
Delivery Time:	7-10 working days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	100 pcs per month

Contact Now

Detailed Product Description

Order No:	30997	Brand:	FESTO
Model:	MVH-5/3G-1/8-S-B	Product Weight:	575 G
Note On Materials:	RoHS-compliant	Valve Function:	5/3 Closed
Highlight:	RoHS Pneumatic Solenoid Valve , 5/3 Closed Festo Solenoid Valve , Electric Festo Solenoid Valve

FESTO Solenoid valve MVH-5/3G-1/8-S-B 30997 GTIN4052568114329 Pneumatic Solenoid Valves

Name: RoHS Pneumatic Festo Solenoid Valve MVH-5/3G-1/8-S-B 30997 GTIN4052568114329
Brand: FLY AUTOMATION
SKU: MVH-5/3G-1/8-S-B
Price: 190.00 USD
Availability: InStock

About product

1.Wide range of voltages thanks to individual coils.

2.Versatile electrical connection technology with V solenoid coil with low power consumption, can also be used with valve terminals.

3.Pneumatic connections G1/8.

Technical Data

Valve function	5/3 closed
Type of actuation	Electric
Construction width	26 mm
Standard nominal flow rate	1000 l/min
pneumatic working port	G1/8
Operating voltage	24V DC
Design	Piston gate valve
Type of reset	Mechanical spring
Nominal size	8 mm
Grid dimension	27 mm
Sealing principle	Soft
Mounting position	optional
Manual override	Non-detenting
Type of piloting	Pilot actuated
Pilot air supply	External
Flow direction	Reversible

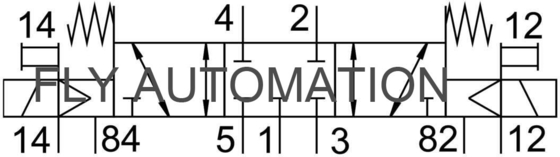

Symbol	00991020
lap	Positive overlap
Max. switching frequency	3 Hz
Switching time off	32 ms
Switching time on	28 ms
Switching time reversal	32 ms
Characteristic coil data	24 V DC: 2.5 W
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Corrosion resistance class CRC	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Storage temperature	-40°C-60°C
Media temperature	-5°C-50°C
Pilot medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature	-5°C-50°C
Product weight	575 g
Type of mounting	On PR rail With through-hole Either:
Auxiliary pilot air port 12	G1/8
Auxiliary pilot air port 14	G1/8
Pilot exhaust port 82	M5
Pilot exhaust port 84	M5
Pilot air port 12	G1/8
Pilot air port 14	G1/8
Pneumatic connection, port 1G1/8	G1/8
Pneumatic connection, port 2G1/8	G1/8
Pneumatic connection, port 3G1/8	G1/8
Pneumatic connection, port 4G1/8	G1/8
Pneumatic connection, port 5G1/8	G1/8
Note on materials	RoHS-compliant
Material seals	NBR
Material housing	Die-cast aluminium

Another Size as below,

Type	Order no	Price
MVH-5/3G-1/8-B	30477	USD180-200
MVH-5/3G-1/4-B	19138	USD180-200
MVH-5/3G-3/8-B	14944	USD180-200
MVH-5/3G-1/8-S-B	30997	USD180-200
MVH-5/3G-1/4-S-B	31004	USD180-200
MVH-5/3G-3/8-S-B	15346	USD180-200

Technical data – 5/3-way valves

There are so many products, welcome to enquire!
