Resin Pneumatic Air Cylinders Carbon Tool Steel Chromium Molybdenum Steel

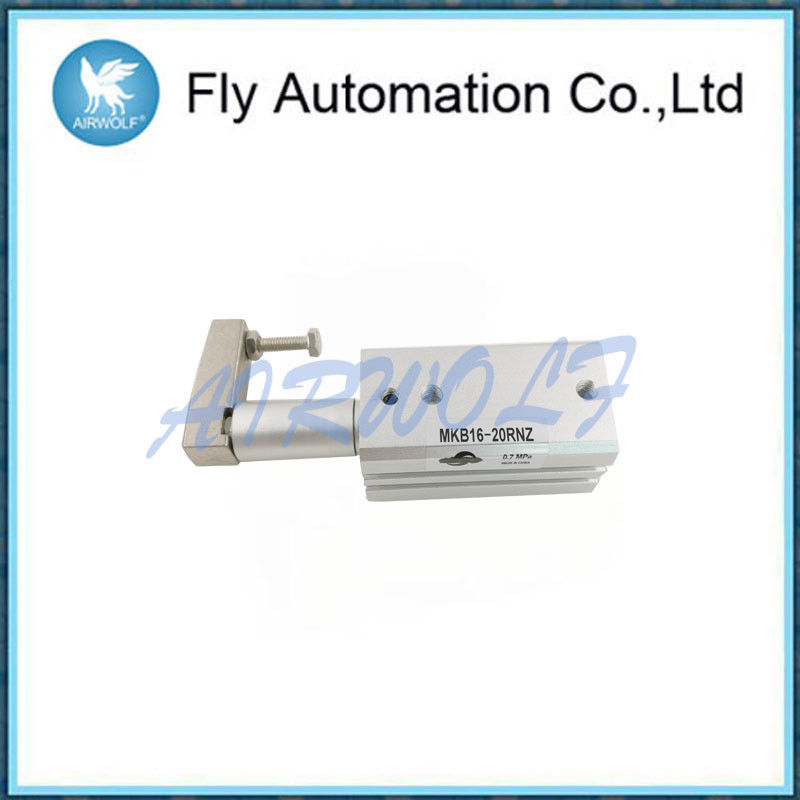

MKB16-20RNZ Carbon tool steel Chromium molybdenum steel Resin Pneumatic Cylinder

With Magnetic Field Resistant Auto SwitchD-P3DWA
1.If welding cables or welding gun electrodes are in the vicinity of thecylinder, the magnets in the cylinder could be affected by the exter-nal magnetic fields. (Please contact SMC if the welding amperage exceeds 1 60OO A.) If the source of strong magnetism comes in con-tact with the cylinder with an auto switch, make sure to install thecylinder away from the source of the magnetism.
2.If the cylinder is to be used in an environment in which spatter willcome in direct contact with the lead wires, cover the lead wires witha protective tube. For the protective tube, use a tube l.D. o7 ormore, which excels in heat resistance and flexibility.

Auto Switch Mounting Bracket/Parts No.
1.DInsert the nut into the auto switch mounting slot on the cylinder tube, andplace it in the roughly estimated settingposition.
2.Engage the ridge on the auto switch mounting arm with the recess in the cyl-inder tube rail, and slide it to the posi-tion of the nut.
3.Gently screw the auto switch mounting screw into the thread of the auto switchmounting nut through the mounting holeon the auto switch mounting arm.
4. Confirm where the mounting position is,and tighten the auto switch mountingscrew to fix the auto switch. The tighten-ing torque of the M2.5 screw must be0.25 to 0.35 N-m.

Caution
When a Magnetic Body Surrounds theCylinder
When a magnetic body surrounds the cylinder as shown in the fig-ure below (including when the magnetic body is only on one side ofthe cylinder), the movement of the auto switch may become un-stable.

Typical Applications
Printing (Tension Control)

Semiconductor (spot welding machine, chip grinding)

Automation Control

Robot

Specifications

Theoretical Output

Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. We have a variety of ways to deliver goods, usually DHL, Fedex, TNL will be normal ways, If you require use of a courier, we can do it.
4. Also we can send by your delivery acount if you want.


Products shopping guide
For example: you want to purchase a batch of cylinders but you don't know which type you are really want, so you can tell me all your requirement and I'll recommend to you.
