Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
Place of Origin: | China |
Brand Name: | QTY |
Certification: | ISO Standand |
Model Number: | QTY-25 |
Minimum Order Quantity: | 1 PC |
---|---|
Price: | Negotiation |
Packaging Details: | Plastic bags, boxes, cartons, Pallets or As customer's requirement |
Delivery Time: | 7 working Days |
Payment Terms: | T/T, Western Union, MoneyGram Paypal |
Supply Ability: | 1000 PCS Per Week |
Model: | QTY-25 | Port Size: | 1'' |
---|---|---|---|
Body Material: | Aluminum Alloy | Fluid: | Air |
Ambient&fluid Temperature: | 5-60℃ | Max.input Pressure: | 0.63MPa |
Highlight: | QTY-25,QTY-25 Pneumatic Pressure Regulator,0.63MPa Pneumatic Pressure Regulator |

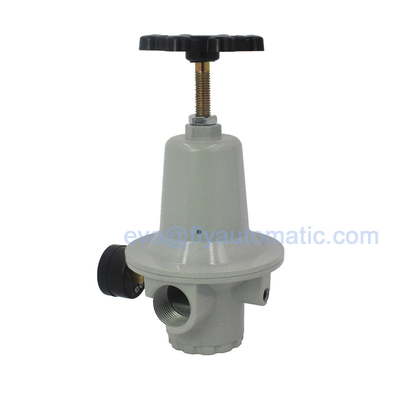

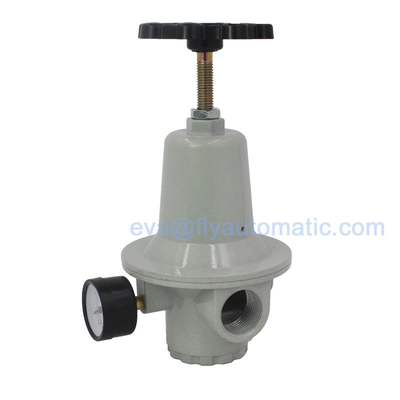

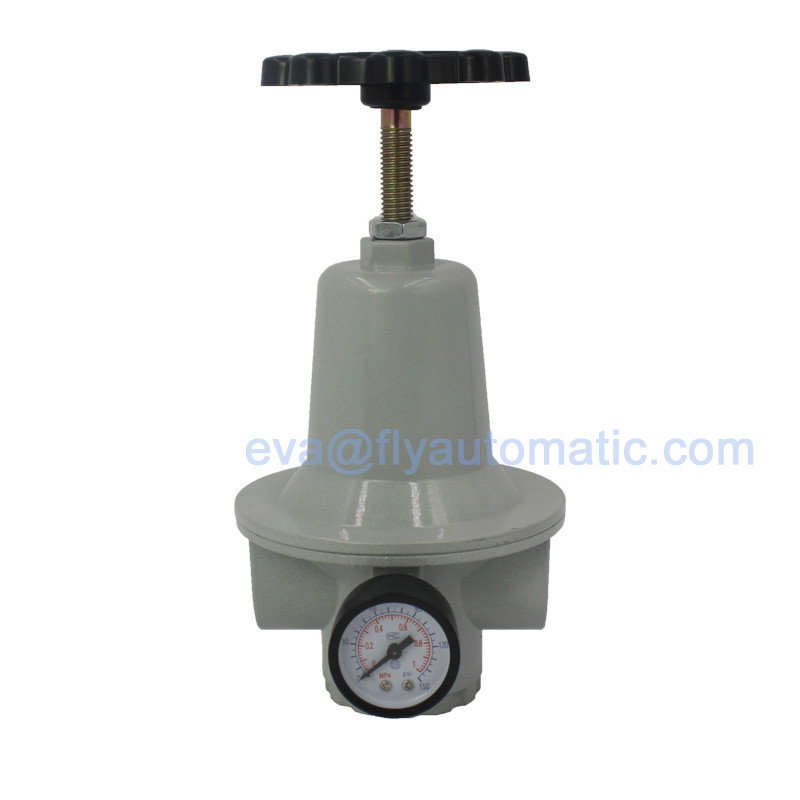

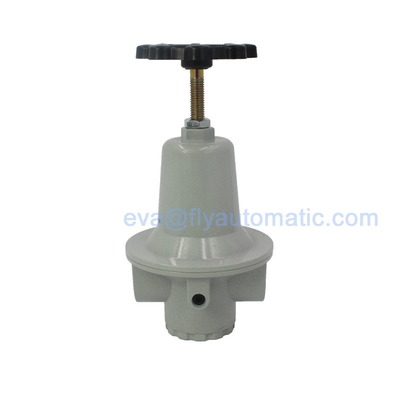

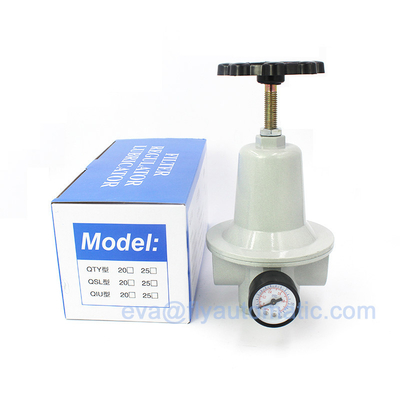

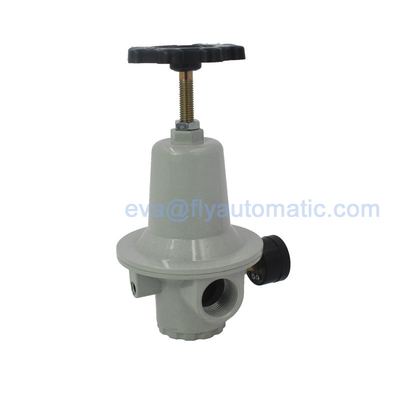

Model: QTY-25
Port Size: 1" BSPT
Pressure Adjustable Range: 0.15~0.9Mpa
Proof Pressure: 15.0 kgf/cm2
Max. adjustable Pressure: 9.5kgf/cm2
Ambient & Fluid Temperature: 5~60C
Body Material: Aluminum alloy
Specification | ||||||
Model | QTY-08 | QTY-10 | QTY-15 | QTY-20 | QTY-25 | QTY-40 |
Port size | G1/4" | G3/8" | G1/2" | G3/4" | G1" | G1 1/2" |
Fluid | Air | |||||
Adjustable pressure range | 0.5~8kgf/cm2 | |||||
Max. adjustable pressure | 9.5kgf/cm2 | |||||
Proof pressure | 15.0kgf/cm2 | |||||
Ambient&fluid temperature | 5-60C | |||||
Body material | Aluminum alloy | |||||
Technical data | ||||||
Model | QTY-10 | QTY-15 | QTY-20 | QTY-25 | QTY-40 | |
Environment temperature | 5~60°C | |||||
Nominal input pressure | 1.0MPa | |||||
Max.input pressure | 0.63MPa | |||||
Pressure range | 0.05~0.63MPa | |||||
Air Flow Sheet | ||||||
Model | reduced to 0.05MPa, the max flow-rate will not less than the following value. | |||||
Air flow-rate (L/min) | ||||||
MPa Entrance pressure | ||||||
0.63 | 0.8 | |||||
QTY-6 | 160 | 190 | ||||
QTY-8 | 860 | 900 | ||||
QTY-10 | 1000 | 1100 | ||||
QTY-15 | 1200 | 1300 | ||||
QTY-20 | 1980 | 2100 | ||||
QTY-25 | 2450 | 2650 | ||||
QTY-40 | 2920 | 3200 |
FAQ
Q: Where is your factory ? Can we visit your factory?
A:Our factory is located in Ningbo City, Zhejiang Province,China, 17kms away from Ningbo Airport. We sincerely welcome customers to visit our company and factory.
Q: Could you add our logo on your products?
A: Yes,if your quantity more than 50pcs. we could add your logo on the products.
Q: How long is your delivery time?
A: Generally it is 1-2 days if the goods are in stock. or it will be 3-5 weeks if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ?
A: Yes, we could offer the sample for free charge, but do not pay the cost of express freight.
Q: What is your payment term and payment way?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment. Payment ways are : T/T, Western Union, Paypal, Alipay.
Q.What’s the shipping way?
A: For small packages, we will choose the door to door express, we cooperated with UPS,DHL,FEDEX,TNT more than 10 years,we gurantee the shipping cost that we offer to you will be the most favorable price among so many suppliers in China. We will send you the tracking number once we got it.
For big orders, By Air or By Sea through your shipping forwarder is acceptable, if you don't have forwarder in China, we will find the most cost-effective one for you.
