RCA50 type air control pulse jet valves G2" remotely piloted
Description
High performance diaphragm valve with threaded ports. Available with integral pilot or as remotely piloted valve. Outlet at 90° to inlet.
Suitable for
Dust collector applications, in particular for reverse pulse jet filter cleaning including bag filters, cartridge filters, envelope filters, ceramic filters, and sintered metal fibre filters.
Construction
Body: Aluminium (diecast)
Ferrule: 304 SS
Armature: 430FR SS
Seals: Nitrile or fluororubber (reinforced)
Spring: 304 SS
Screws: 302 SS
Diaphragm Seat: PA-6 (standard), fluororubber coated mild steel or High Density PE Refer to Q Series Solenoid product data sheet for solenoid construction details.
Operation
Recommended on time range: 50-500ms
Recommended time between pulses: 1 minute or greater
Maintenance
Before conducting any maintenance activity on the system ensure that components are fully isolated from pressure and power supplies. Pressure and power should not be reapplied until the valve has been fully assembled. Diaphragm and pilot inspection should be conducted annually.
Approvals
Integrally piloted valves meet the requirements of:
. Atex II 2D Mechanical
. CSA (C&US)
C22.2 No. 139-1982 UL Std No. 429
. C-Tick - integral pilots
. EMC (89/336/CE) - integral pilots
Pressure Range: 30(5)-860(125) kPA(Psi)
Temperature Range: Nitrite Seals: -40°C (-40°F) to 82°C(179.6°F) fluororubber Seals: -29°C (-20.2°F) to 232°C (449.6°F)
Product pictures:

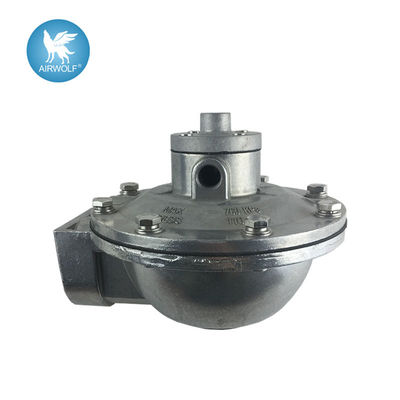

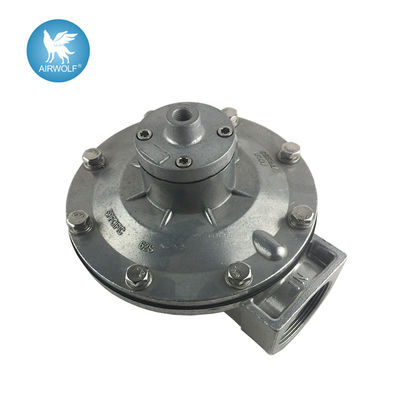

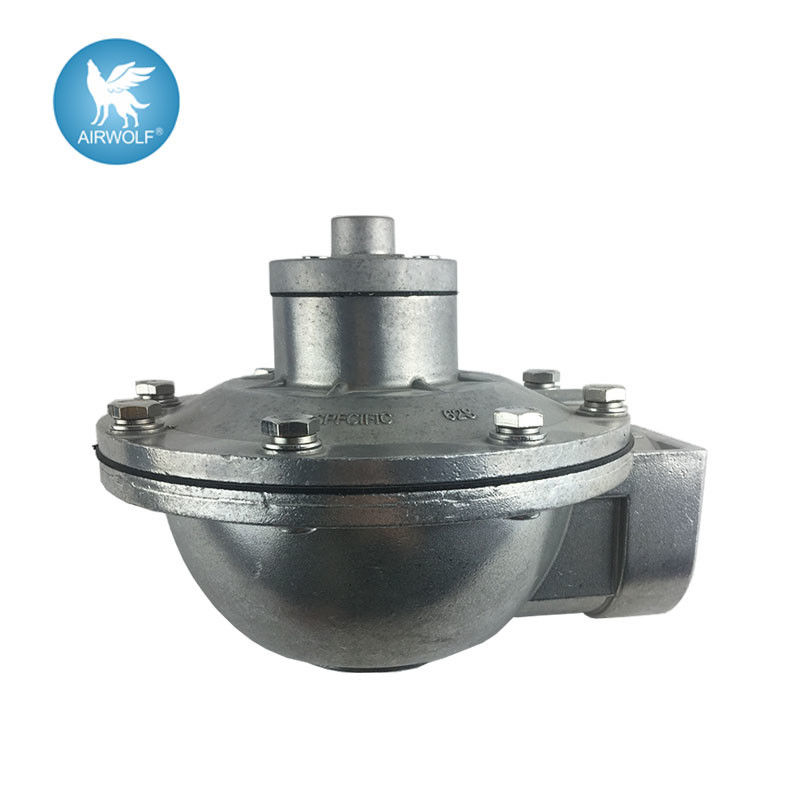

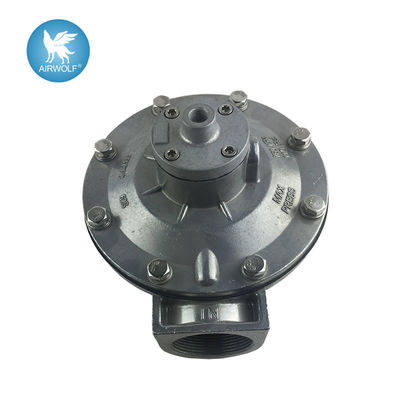

CA /RCA Series pulse jet valve , CA Series is solenoid control pulse jet valves, RCA series is air control pulse jet valves
Installation
1. Prepare supply and blowtube pipes to suit valve specification. Avoid installing valves underneath the tank.
2. Ensure tank and pipes are free from dirt, rust or other particulate.
3. Ensure supply air is clean and dry.
4. Mount valves to inlet pipes and blowtube to valves, ensuring no excess thread sealant can enter the valve itself.
5. Make electrical connections to solenoid or connect RCA pilot port to pilot valve (RCA valves only).
6. Apply moderate pressure to system and check for installation leaks.
7. Fully pressurise system.
8. Test fire and listen for proper actuation and crisp pulse noise.
Weights:
| Size |
Integral Pilot (CA) Kg (lbs) |
Remote Pilot (RCA) Kg (lbs) |
| 50 |
2.89(6.38) |
2.68(5.92) |
Maintenance Kits
| Model |
Nitrile |
fluororubber |
Low Temperature -60°C (-76°F) Min. |
Includes |
| RCA10T |
K1001 |
K1002 |
NA |
Diaphragm kits include main and secondary diaphragms (where required) and all springs.These kits are for discontinued valves. o-ring, armature assembly, armature spring, ferrule |
| CA/RCA20T |
K2000 |
K2007 |
NA |
| CA/RCA25T |
K2501 |
K2503 |
K2504 |
| CA/RCA32T* |
K2500 |
— |
NA |
| CA/RCA35T |
K3500 |
K3501 |
K3502 |
| CA/RCA40T* |
K4000 |
— |
NA |
| CA/RCA45T |
K4502 |
K4503 |
K4522 |
| CA/RCA50/62T |
K5004 |
K5000 |
NA |
| CA/RCA76T |
K7600 |
K7601 |
NA |
| Pilot repair kit |
K0380 |
K0384 |
NA |
Product Characteristics and Performance:
| Item Code |
Nom. Size |
mm |
Port Size inch |
Number of diaphragms |
Kv |
Flow Cv |
| CA/RCA-50T |
50 |
50 |
2 |
2 |
76 |
88 |
Dimension(mm and inch):
Warranty
All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
