Name: RCA3DS RCA3DS-300 1/8" Pilot Operated Diaphragm Valve
Brand: FLY AUTOMATION
SKU: RCA3DS RCA3DS-300
Price: 100.00 USD
Availability: InStock

Home Products Pulse Jet Valves

RCA3DS RCA3DS-300 1/8" Pilot Operated Diaphragm Valve

Product Details:

Place of Origin:	China
Brand Name:	FLY/AIRWOLF
Certification:	ISO 9001,CE
Model Number:	RCA3DS RCA3DS-300

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	price negotiable
Packaging Details:	carton
Delivery Time:	5 working days
Payment Terms:	T/T in advance,Western Union,Paypal,Credit card
Supply Ability:	2000 pcs/month

Contact Now

Detailed Product Description

Model:	RCA3DS RCA3DS-300	Port Size::	1/8"
Diaphragm Seal:	O Rings Nitrile - Bunan	Weight:	0.2kgs
Connection:	Spade	Voltage:	DC24V DC12V AC220V AC110V
Highlight:	RCA3DS , RCA3DS-300 , 1/8" Pilot Operated Diaphragm Valve

RCA3DS RCA3DS-300 1/8" Solenoid Pilot valve pulse dust collector control valve

Suitable for
RCAC20T3, RCAC20ST3,
RCAC20DD3, RCAC20FS3,
RCAC25T3, RCAC25DD3,
RCAC25FS3 dust collector valves only.

Installation
Ensure o-ring is in place on diaphragm valve cover. Gripping the shroud, hand tighten 3DS pilot valve onto cover of diaphragm valve. For reliable
operation, ensure supply voltage is within -10% and +15% of rated solenoid voltage. Solenoid is free to rotate on pilot valve. 3DS thread will suit 1/8 BSP T, 1/8 BSP P and 1/8 NPT ports. Replace pilot components within 1 million cycles (refer to Spare Parts).

Construction
Body: AI 2011-T3
Ferrule: 302 SS
Armature: 430FR SS
Encapsulation: PA-6
Insulation: Class B/130 ° C
Seals: Nitrile
Shroud: PA-6

Operation
Recommended
on time range: 50-500ms
Recommended time
between pulses: 1 minute or greater

RCA3DS RCA3DS-300 1/8" Pilot Operated Diaphragm Valve

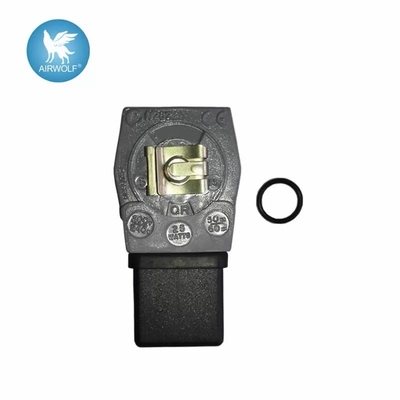

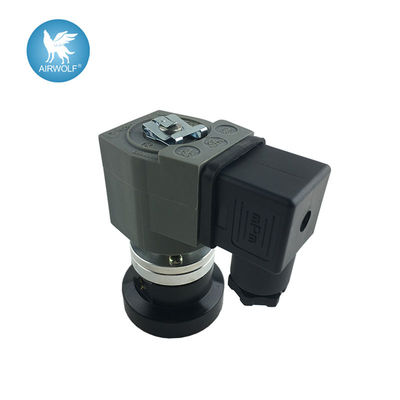

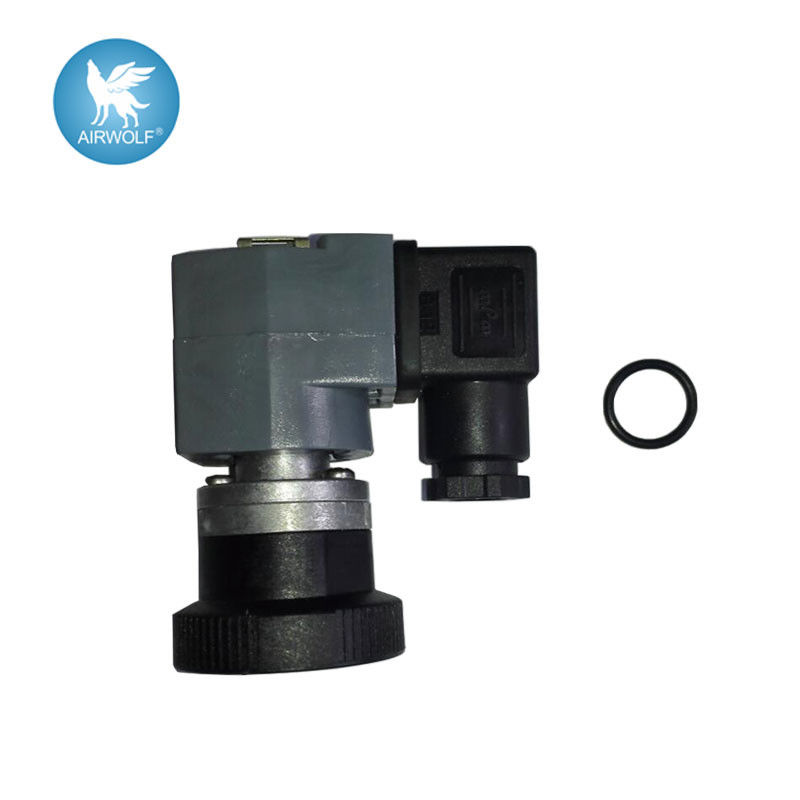

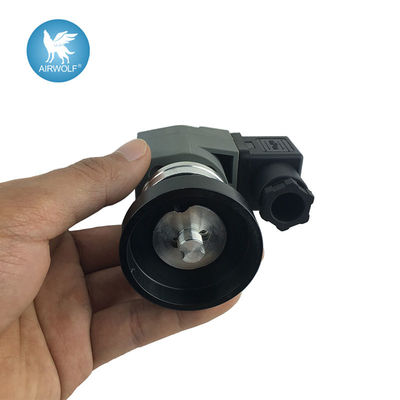

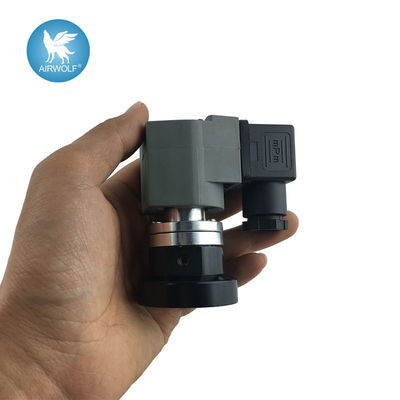

Product pictures

RCA3DS RCA3DS-300 1/8" Pilot Operated Diaphragm Valve

Competitive Advantage:

Our product features:	Our Services Guarantee:
1) Competitive price	1) Prompt respond (Reply with 24 hours)
2) Good quality	2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging,	3) Registration support.
4) Produce according to Customers’ instruction	4) Photos/videos are available during production.
5) None delay shipment	5) Loading inspection, and send loading photos before shipment.

Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.
