| Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
 |
| Place of Origin: | China |
| Brand Name: | Techno |
| Certification: | CE |
| Model Number: | RB0806 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement |
| Delivery Time: | within 1-30 working days after payment |
| Payment Terms: | T/T , Western Union |
| Supply Ability: | 1000 pcs |
| Model Code: | RB0806 | Color: | Black |
|---|---|---|---|
| Collision Speed: | 0.05 To 5.0 M/s | Name: | Shock Absorber |
| Stroke: | 6 Mm | ||
| Highlight: | pneumatic actuator cylinder,smc pneumatic cylinder |
||

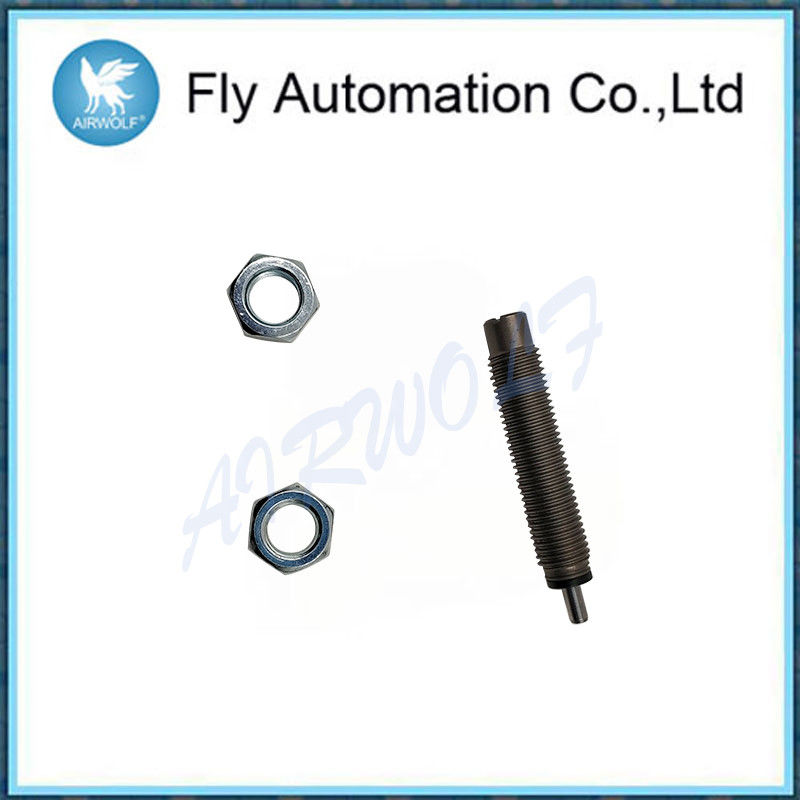

RB Series Steel RB0806 RBC0806 Hydraulic Shock Absorber Oil Buffer
Specifications
Shock absorber is used to restrain the shock of spring when it rebounds after shock absorption and the impact from road surface. Widely used in automobiles
Order code
| Model | Basic type | RB0805 | RB0806 | RB1006 | RB1007 | RB1411 | RB1412 | RB2015 | RB2725 |
| With cap | RBC0805 | RBC0806 | RBC1006 | RBC1007 | RBC1411 | RBC1412 | RBC2015 | RBC2725 | |
| Max. energy absorption (J) | 0.98 | 2.94 | 3.92 | 5.88 | 14.7 | 19.6 | 58.8 | 147 | |
| Stroke absorption (mm) | 5 | 6 | 6 | 7 | 11 | 12 | 15 | 25 | |
| Collision speed (m/s) | 0.05 to 5.0 | ||||||||
| Max. operating frequency ∗ (cycle/min) |
80 | 80 | 70 | 70 | 45 | 45 | 25 | 10 | |
| Max. allowable thrust (N) | 245 | 245 | 422 | 422 | 814 | 814 | 1961 | 2942 | |
| Ambient temperature range (°C) | –10 to 80 (No freezing) | ||||||||
| Spring force (N) |
Extended | 1.96 | 1.96 | 4.22 | 4.22 | 6.86 | 6.86 | 8.34 | 8.83 |
| Retracted | 3.83 | 4.22 | 6.18 | 6.86 | 15.3 | 15.98 | 20.5 | 20.01 | |
| Weight (g) | Basic type | 15 | 15 | 23 | 23 | 65 | 65 | 150 | 350 |
| With cap | 16 | 16 | 25 | 25 | 70 | 70 | 165 | 400 | |
| ∗ It denotes the values at the maximum energy absorption per one cycle. Max. operation cycle/min can increase in proportion to energy absorption. |
|||||||||
◈ Outer tube: Rolled steel
◈ Inner tube: Special steel
◈ Piston rod: Special steel
◈ Set screw: Special steel
◈ Return spring: Piano wire
Maintenance
1. Check the mounting nut is not loosen.
2. Pay attention to any abnormal impact sounds or vibrations.
3. Confirm that abnormality, oil leakage, etc. in the outward surface.
4. Inspect the cap for any cracks or wear.
Application
The oil pressure buffer is mainly used in cylinder, combined air pressure manipulator, lathe, robot, Conveyor Systems etc. Examples of Application: drill pree, platform drill hole, circular saw cutting, lathe turning tool cutting, pneumatic aiguille drill hole, slide carriage stable speed.
Attention
1. It is strictly prohibited to knock or collide the shaft, which may easily lead to bending of the shaft.
2. The surface of the shaft should not be covered with sewage or dirty oil, and the shaft must operate in a clean environment.Otherwise, it will increase the probability of product leakage and reduce the service life of the product.
3. It is strictly prohibited to spray paint on the pipe teeth and axis, otherwise it will affect the heat dissipation effect and oil leakage.
Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. We have a variety of ways to deliver goods, usually DHL, Fedex, TNL will be normal ways, If you require use of a courier, we can do it.
4. Also we can send by your delivery acount if you want.
Packaging shipping
1. If order is not big enough, we will provide Door To Door service, we cooperate with UPS,DHL,FEDEX,TNT all year round,we gurantee that the shipping price that we offer to you is the most favorable price among so many suppliers in China.
2. By Air or By Sea through your forwarder is acceptable, if you have no forwarder in China, we also could find you cost-effective forwarder for your reference.
Warranty
All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
