Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
Place of Origin: | China |
Brand Name: | QTY |
Certification: | ISO Standand |
Model Number: | QTY-15 |
Minimum Order Quantity: | 1 PC |
---|---|
Price: | Negotiation |

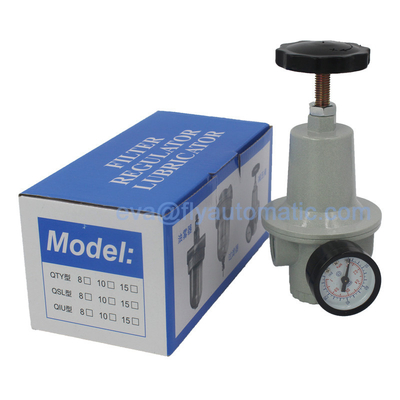

Packaging Details: | Plastic bags, boxes, cartons, Pallets or As customer's requirement |
Delivery Time: | 7 working Days |
Payment Terms: | T/T, Western Union, MoneyGram Paypal |
Supply Ability: | 1000 PCS Per Week |
Model: | QTY-15 | Port Size: | 1/2'' |
---|---|---|---|
Body Material: | Aluminum Alloy | Fluid: | Air |
Ambient&fluid Temperature: | 5-60℃ | Nominal Input Pressure: | 1.0MPa |
Highlight: | QTY-15 Pneumatic Regulator,G1/2 Pneumatic Regulator,QTY-15 Pneumatic Pressure Regulator |

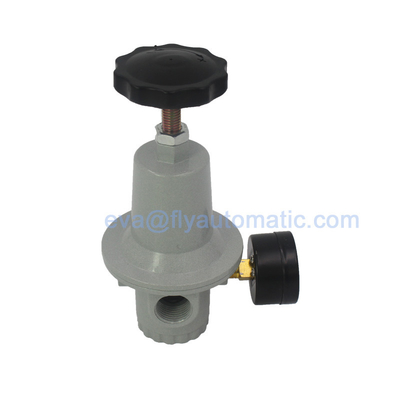

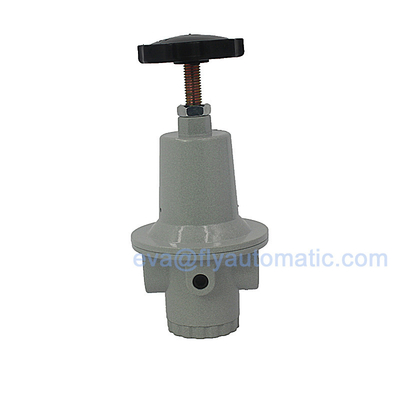

Model: QTY-15
Port Size: 2" BSPT
Pressure Adjustable Range: 0.15~0.9Mpa
Proof Pressure: 15.0 kgf/cm2
Max. adjustable Pressure: 9.5kgf/cm2
Ambient & Fluid Temperature: 5~60C
Body Material: Aluminum alloy
Specification | ||||||
Model | QTY-08 | QTY-10 | QTY-15 | QTY-20 | QTY-25 | QTY-40 |
Port size | G1/4" | G3/8" | G1/2" | G3/4" | G1" | G1 1/2" |
Fluid | Air | |||||
Adjustable pressure range | 0.5~8kgf/cm2 | |||||
Max. adjustable pressure | 9.5kgf/cm2 | |||||
Proof pressure | 15.0kgf/cm2 | |||||
Ambient&fluid temperature | 5-60C | |||||
Body material | Aluminum alloy | |||||
Technical data | ||||||
Model | QTY-10 | QTY-15 | QTY-20 | QTY-25 | QTY-40 | |
Environment temperature | 5~60°C | |||||
Nominal input pressure | 1.0MPa | |||||
Max.input pressure | 0.63MPa | |||||
Pressure range | 0.05~0.63MPa | |||||
Air Flow Sheet | ||||||
Model | reduced to 0.05MPa, the max flow-rate will not less than the following value. | |||||
Air flow-rate (L/min) | ||||||
MPa Entrance pressure | ||||||
0.63 | 0.8 | |||||
QTY-6 | 160 | 190 | ||||
QTY-8 | 860 | 900 | ||||
QTY-10 | 1000 | 1100 | ||||
QTY-15 | 1200 | 1300 | ||||
QTY-20 | 1980 | 2100 | ||||
QTY-25 | 2450 | 2650 | ||||
QTY-40 | 2920 | 3200 |
After-sales clause:
One year quality guarantee Policy
We will check the goods quality before shipment. If there are some unexpected problems
happen, we hope to solve the problems with buyer through friendly in the following ways:
1, If it is quality problem, buyer can submit argue within 15days after receiving the goods,
buyer must provide photos or video and other evidence to seller for identify.
2, Man-made damaged, buyers take full responsibility.
3, Product quality processing program:
1) The buyer return the products for bad quality reasons for one year (not included those
damages coursed by shipping or Man-made damaged ). A 15% restocking fee is
assessed for any products returned in "used" condition. And then we will send a new
product to buyer and pay for the resend shipping cost.
2) If the goods (total price including shipping is less than 10USD) has quality problems, we
will resend a new product in buyer next order; if buyer don't plan to make a new order in
the near term, buyer can pay the resend shipping cost and ask to resend a new product. If
there is an issue with the products, please contact us– we will solve it as soon as we get
your email.
Contact Person: Jaren
Tel: 0086-15257858856
Fax: 86-152-57858856
