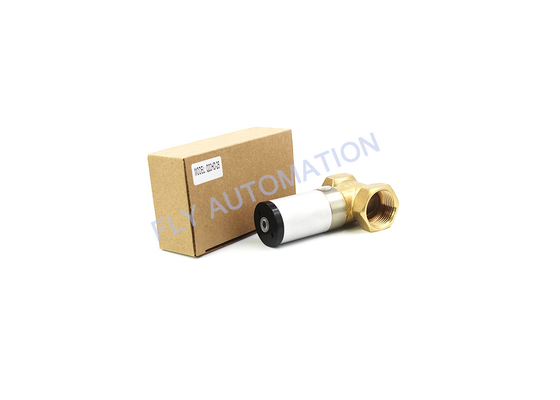

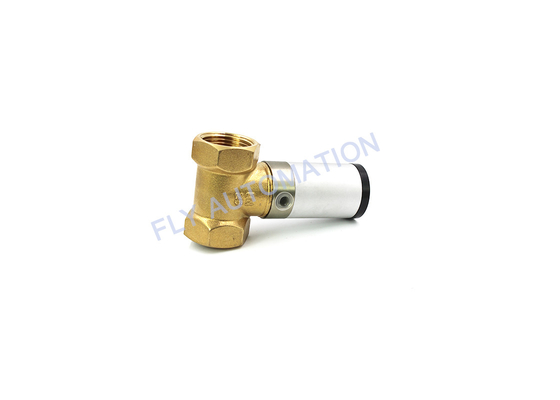

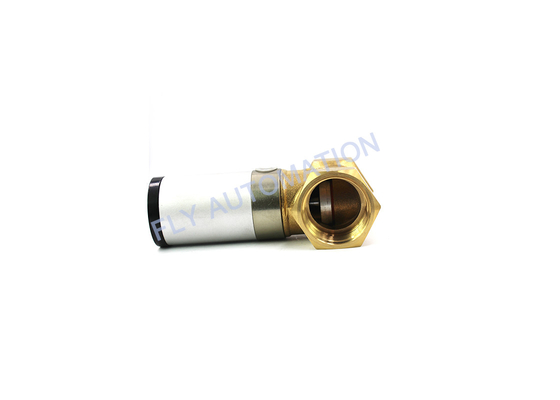

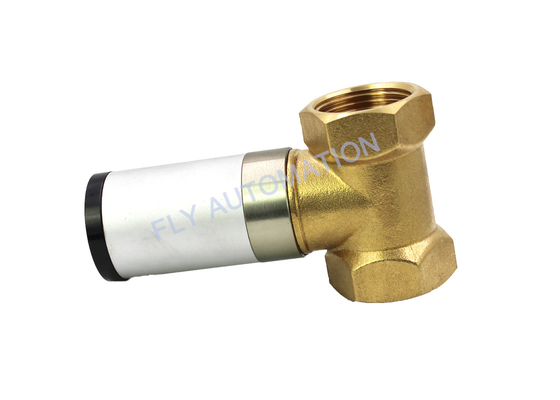

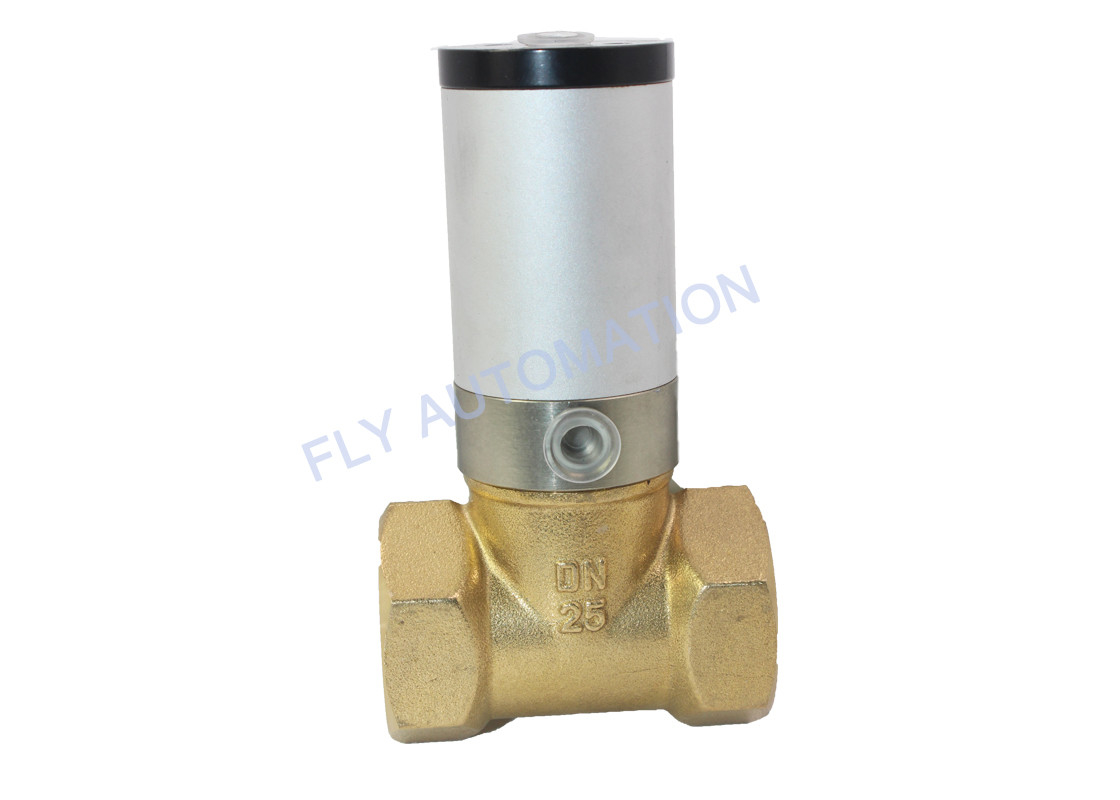

Q22HD-25 DN25 Q22HD-15 Pneumatic Solenoid Valves

Q22HD-25 DN25 Q22HD-15 Pneumatic Solenoid Valves

  • Q22HD-25 DN25 Q22HD-15 Pneumatic Solenoid Valves
  • Q22HD-25 DN25 Q22HD-15 Pneumatic Solenoid Valves
  • Q22HD-25 DN25 Q22HD-15 Pneumatic Solenoid Valves
  • Q22HD-25 DN25 Q22HD-15 Pneumatic Solenoid Valves
  • Q22HD-25 DN25 Q22HD-15 Pneumatic Solenoid Valves
  • Q22HD-25 DN25 Q22HD-15 Pneumatic Solenoid Valves
Q22HD-25 DN25 Q22HD-15 Pneumatic Solenoid Valves
Product Details:
Place of Origin: China
Brand Name: TECHNO
Certification: ISO Standand
Model Number: Q22HD-25
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: Plastic bags, boxes, cartons, Pallets or As customer's requirement
Delivery Time: 7-10 working Days
Payment Terms: T/T, Western Union, MoneyGram Paypal
Supply Ability: 50 PCS Per Week
Contact Now
Detailed Product Description
Port Connection: G1 Working Medium: Air, Water, Oil, Liquefied Gas, Free-running Viscosity Liquid
Operating Pressure: 0-1.0 Mpa Meduim Temperature: -5~80 Degree(NBR For -5~80 Degree And EPDM, VITON For -5~150 Degree)
High Light:

Q22HD-15 Pneumatic Solenoid Valves

,

Q22HD-25 Pneumatic Solenoid Valves

,

DN25 Pneumatic Solenoid Valves

Q22HD-25 DN25 Vacuum Air Control Water Solenoid Valve Pneumatic Cylinder Control Valve Q22HD-15







Vacuum Air control Valve

Q22HD series

We have various models. No matter what model you need, please feel free to contact me.

If you have any questions about the price, you can contact me at any time.


Q22HD-15 1/2"

Q22HD-20 3/4"

Q22HD-25 1"

Q22HD-32 5/4"

Q22HD-40 3/2"

Q22HD-50 2

Q22HD-25 DN25 Vacuum Air Control Water Solenoid Valve Pneumatic Cylinder Control Valve Q22HD-15



Q22HD Series 2 Way Pneumatic Air Valve.

Port Connection: G1/2'', G3/4'', G1'', G11/4'', G1-1/2'', G2''.
Working Medium: Air, Water, Oil, Liquefied gas, free-running viscosity liquid
Operating Pressure: 0-1.0 Mpa
Meduim Temperature: -5~80 degree(NBR for -5~80 degree and EPDM, VITON for -5~150 degree)



Specification:





Model Q22HD-15 Q22HD-20 Q22HD-25 Q22HD-35 Q22HD-40 Q22HD-50
Orifice Diameter(mm) 15 20 25 35 40 50
Port Size G1/2” G3/4” G1” G1-1 /4 G1-1/2” G2”
Working Medium Air, Water, Oil, liquefied Gas, free-running viscosity liquid
Working pressure 0 ~ 1.0Mpa
Operating Temperature -5~80 degree(NBR for -5~80 degree and EPDM, VITON for -5~150 degree)
KV Value 4 5 10 25 40



Parameter

Model Flow Orifice mm Medium Working Pressure Control Pressure Temperature range Kv m3/k
Q22HD-15 13 clear air 0~0.8 Mpa 0.4~0.8 Mpa 0.5~60 ℃ 4
Q22HD-20 16 water 5
Q22HD-25 22 oil 10
Q22HD-40 35   25
Q22HD-50 45   40



Q22HD-25 DN25 Q22HD-15 Pneumatic Solenoid ValvesQ22HD-25 DN25 Q22HD-15 Pneumatic Solenoid ValvesQ22HD-25 DN25 Q22HD-15 Pneumatic Solenoid ValvesQ22HD-25 DN25 Q22HD-15 Pneumatic Solenoid ValvesQ22HD-25 DN25 Q22HD-15 Pneumatic Solenoid ValvesQ22HD-25 DN25 Q22HD-15 Pneumatic Solenoid ValvesQ22HD-25 DN25 Q22HD-15 Pneumatic Solenoid ValvesQ22HD-25 DN25 Q22HD-15 Pneumatic Solenoid ValvesQ22HD-25 DN25 Q22HD-15 Pneumatic Solenoid Valves











Ningbo Fly Automation Co., Ltd with its headquarter located in Ningbo and established in 2010, is a wellknown supplier manufacture of pneumatic equipments in the world market.
Fly Automation is specialized in producing pneumatic cylinders, pneumatic valves,air preparation units, pulse jet valves, pneumatic fittings, etc.
which are widely used in the lighting and textile, automotive, machinery manufacturing, metallurgy, electronics,environmental protection ceramics, medical equipments,food and packaging automatic industrial fields.

A Caution
Use caution for the anti-corrosiveness of finger guide section.
Martensitic stainless steel is used for the finger. However, be aware that its anti-corrosion performance is inferior to austenitic stainlesssteel. ln particular, the finger might be rusted in an environment where water droplets are adhered to it due to dew condensation.


How to Mount the Attachment to the Finger

To mount the attachment to thefinger, make sure to use awrench to support the attachment so as not to applyundue strain on the finger.Refer to the tablebelow for the propertightening torque onthe bolt used forsecuring the attachment to thefinger.
