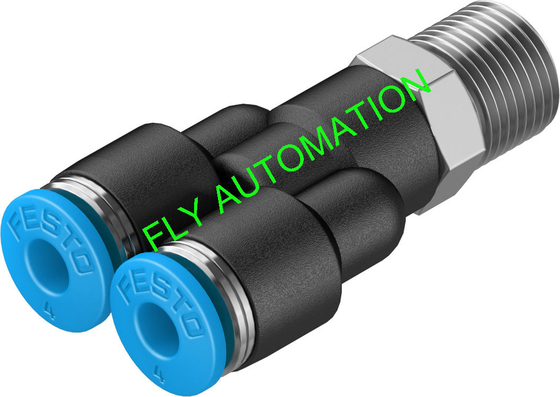

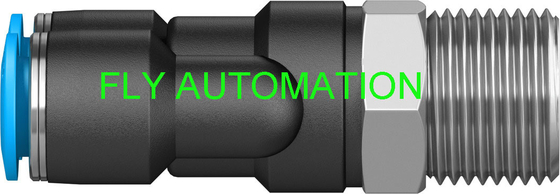

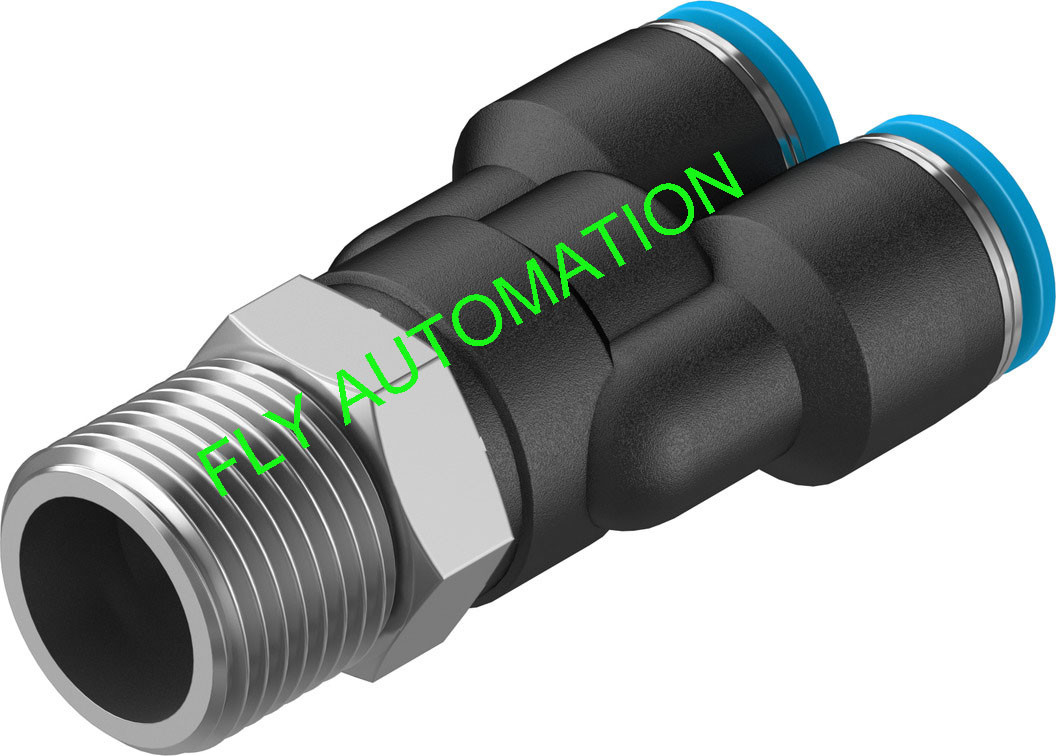

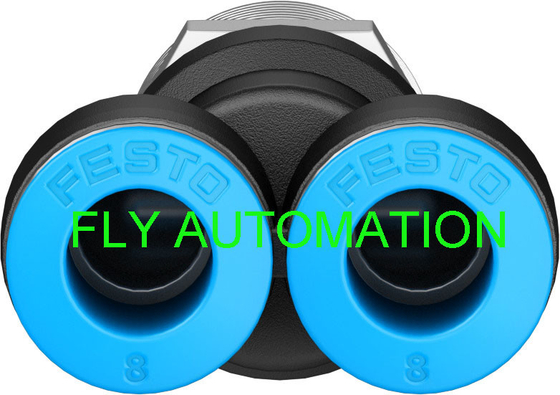

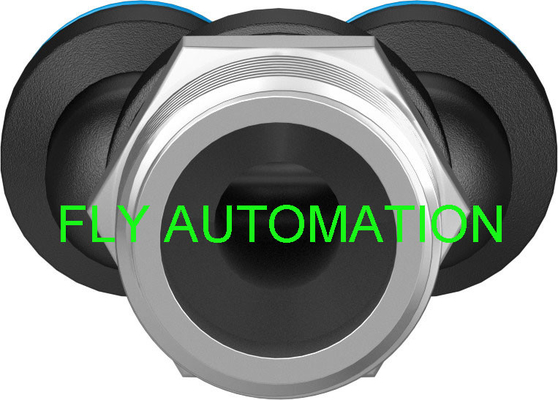

FESTO,Push-in fitting,Push-in Y-fitting,QSY-3/8-8,153143,GTIN: 4052568032357,Pneumatic Tube Fittings
Nominal size:6.6 mm
Order no:153143
Brand:FESTO
GTIN:4052568032357
Specifications:QSY-3/8-8
Weight:36g
Number of outputs:2
Number of supply lines:1
Product Technical Data
| Feature |
Value |
| Size |
Standard |
| Nominal size |
6.6mm |
| Mounting position |
optional |
| Size of pack |
10 |
| Design |
Push-pull principle |
| Note on operating and pilot medium |
Lubricated operation possible |
| Corrosion resistance class CRC |
1 - Low corrosion stress |
| Product weight |
36 g |
| Pneumatic connection, port 1 |
Male thread R3/8 |
| Pneumatic connection, port 2 |
For tubing outside diameter of 8 mm |
| Colour of release ring |
Blue |
| Material housing |
PBT |
| Material release ring |
POM |
| Material tubing seal |
NBR |
| Material tubing clamp component |
High-alloy stainless steel |
| Type of seal on screw-in stud |
Coating |
| Number of outputs |
2 |
| Number of supply lines |
1 |
| Note on materials |
RoHS-compliant |
Other specifications
| Specifications |
Order NO |
GTIN |
Nominal size(mm) |
Weight(g) |
EXW Price |
Size of pack |
| QSY-1/8-4 |
153138 |
4052568032302 |
3.1 |
13 |
USD2-5 |
10 |
| QSY-1/8-6 |
153139 |
4052568032319 |
4.2 |
15 |
USD2-5 |
10 |
| QSY-1/8-8 |
153141 |
4052568032333 |
5.9 |
20 |
USD2-5 |
10 |
| QSY-1/4-4 |
190675 |
4052568043063 |
3.3 |
20 |
USD2-5 |
10 |
| QSY-1/4-6 |
153140 |
4052568032326 |
4.8 |
22 |
USD2-5 |
10 |
| QSY-1/4-8 |
153142 |
4052568032340 |
5.9 |
25 |
USD2-5 |
10 |
| QSY-1/4-10 |
153144 |
4052568032364 |
7.2 |
32 |
USD2-5 |
10 |
| QSY-3/8-8 |
153143 |
4052568032357 |
6.6 |
36 |
USD2-5 |
10 |
| QSY-3/8-10 |
153145 |
4052568032371 |
7.4 |
43 |
USD2-5 |
10 |
| QSY-3/8-12 |
153146 |
4052568032388 |
8.4 |
51 |
USD2-5 |
10 |
| QSY-1/2-10 |
133196 |
4052568259396 |
7.8 |
66 |
USD2-5 |
1 |
| QSY-1/2-12 |
153147 |
4052568032395 |
8.3 |
74 |
USD2-5 |
1 |
Push-in Y-fitting QSY
Male thread with external hex,rotatable
No. of supply lines: 1
No. of outlets: 2
Characteristics
1.Fast pulling and plugging: the elastic structure is used to match with the pipeline, and the matching pipeline can be easily and quickly replaced under the condition of ensuring a certain pressure resistance.
2.Variety: according to different application occasions, connectors with different emphasis can be selected, such as common quick plug connectors, quick change connectors commonly used on pneumatic tools (also called C-type connectors, pagoda connectors), and ferrule connectors that need to ensure pressure resistance.
Attention
1.Do not use it for any purpose other than quick fluid coupling.
2.Do not use for fluids other than applicable fluids.
3.Do not exceed the maximum operating pressure.
4.Please do not connect with the quick fluid connector made by other companies.
5.Do not strike, bend or stretch artificially to prevent damage.
6.Do not use outside the operating temperature range to prevent wear or leakage of sealing materials.
7.Do not use it in places mixed with metal powder or sand dust to prevent poor work or leakage.
8.If sundries are attached, it will cause poor operation or leakage.
Multiple quick connector options for the highest temperature,Degree up to 80 ° C, maximum pressure up to 14 bar,For pneumatic applications.The outer diameter of air tube is divided into 4 mm, 6 mm,8 mm,10 mm,12 mm
There are many specifications of connectors, price and delivery time. Welcome to inquire.
