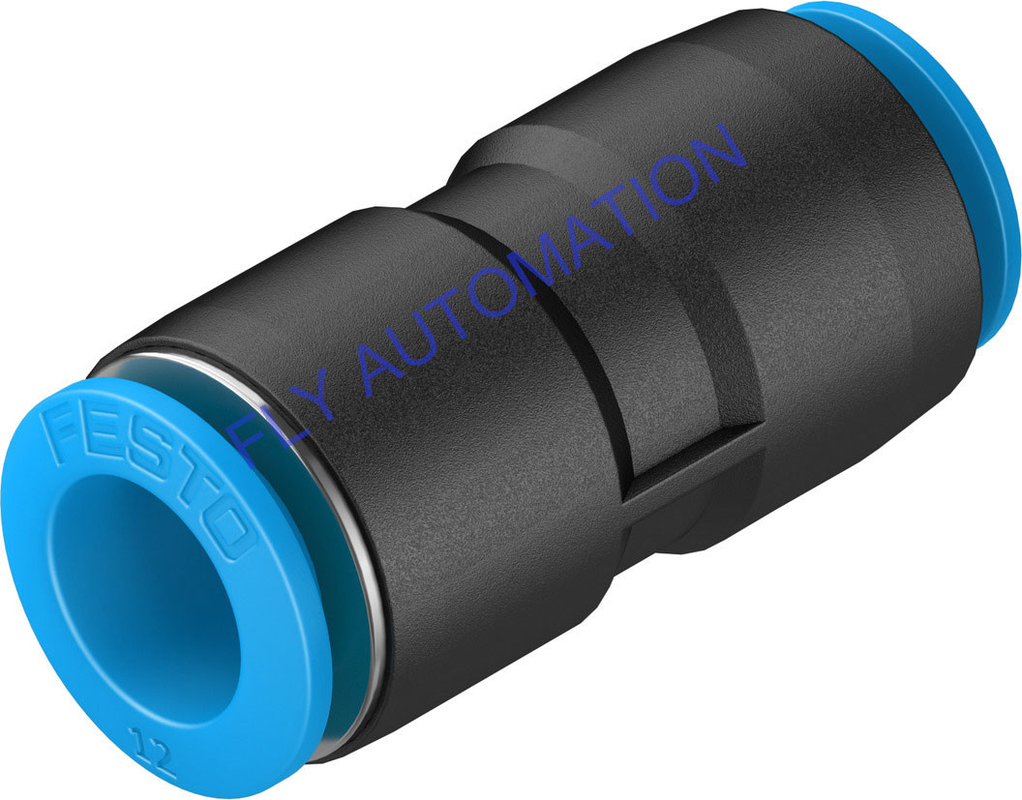

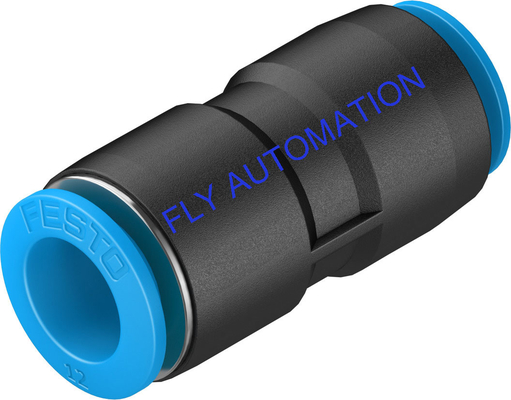

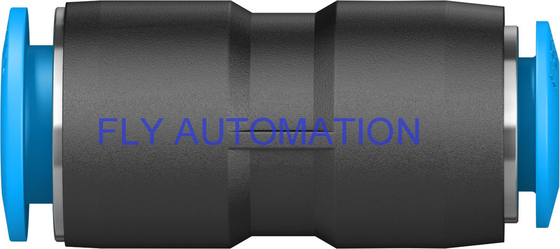

FESTO,Push-in connector,QS-12-10,153040,GTIN:4052568011017,Pneumatic Tube Fittings
Nominal size:9 mm
Order no:153040
Brand:FESTO
GTIN: 4052568011017
Specifications:QS-12-10
Weight:21g
Standards
1.Standard series.Wide range of applications.
2.With a variety of combinations of different models, it has a high flexibility in various standard applications Activity.
3.PBT and nickel-plated brass.
Product Technical Data
| Size |
Standard |
| Nominal size |
9 mm |
| Mounting position |
optional |
| Size of pack |
10 |
| Design |
Push-pull principle |
| Note on operating and pilot medium |
Lubricated operation possible |
| Corrosion resistance class CRC |
1 - Low corrosion stress |
| Product weight |
21 g |
| Pneumatic connection, port 1 |

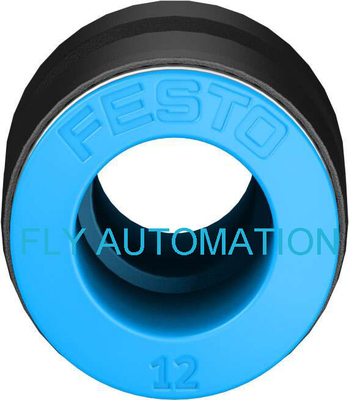

For tubing outer diameter of 12 mm |
| Pneumatic connection, port 2 |
For tubing outside diameter of 10 mm |
| Colour of release ring |
Blue |
| Material housing |
PBT |
| Material release ring |
POM |
| Material tubing seal |
NBR |
| Material tubing clamp component |
High-alloy stainless steel |
Specifications for another
About product
1The pipe connector has a series of advantages, such as advanced structure, good performance, convenient use, no welding, no need for pipe expanding, etc. Therefore, the pipe connector has been widely used in various mechanical hydraulic and pneumatic systems.
2.Joints with different thread specifications are often used between pipelines to complete the connection.
3.Multiple quick connector options for the highest temperature,Degree up to 80 ° C, maximum pressure up to 14 bar,For pneumatic applications.The outer diameter of air tube is divided into 4 mm, 6 mm,8 mm,10 mm,12 mm,16 mm,
Samples
You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.
Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.
There are many specifications of connectors, price and delivery time. Welcome to inquire.
