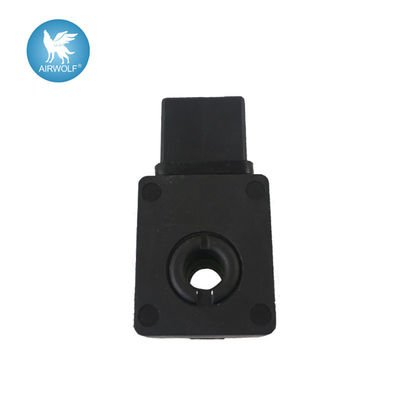

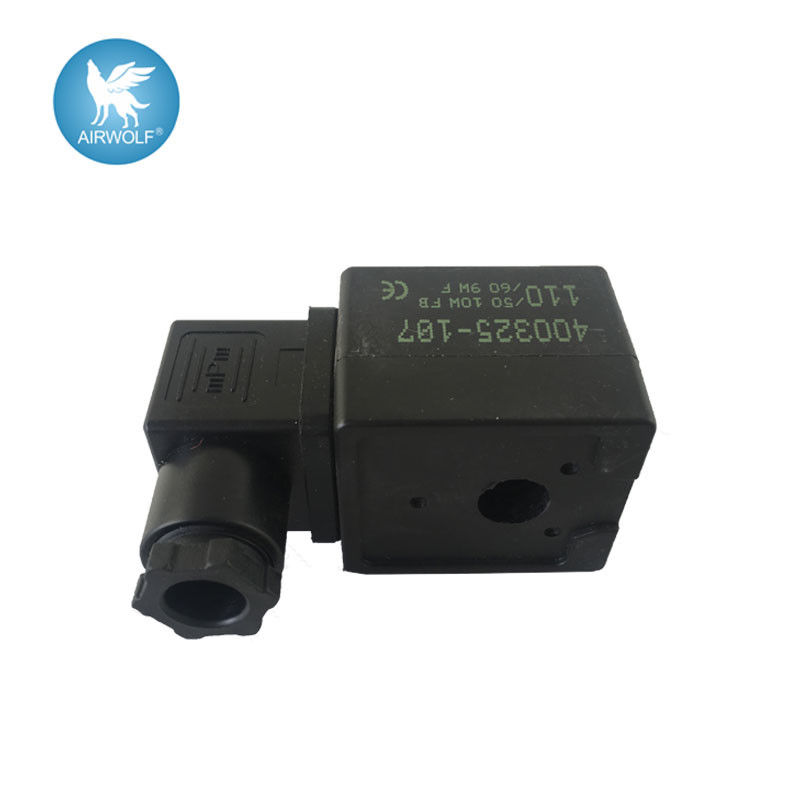

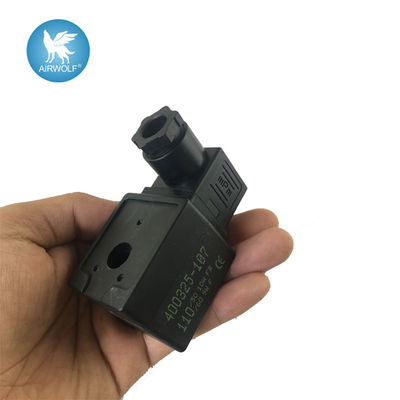

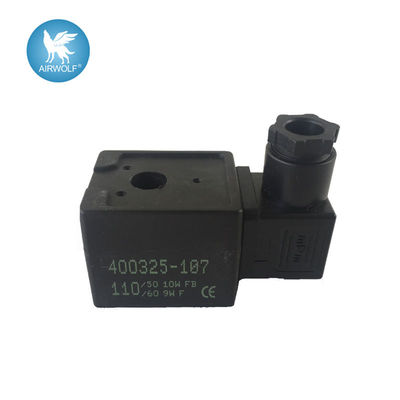

Pulse Jet valve Coil 400325-117 400325-107 400325-142 220VAC 110VAC
Pulse valve is widely used in environmental dust industries , such as electromagnetic or pneumatic control
by the pilot valve can open and close the high pressure gas source to generate pulse valve diaphragm valve
in an instant , but also commonly known as electromagnetic pulse were pulsed valve or gas control
valve .
| Ordering Code |
Fitted Valve Code |
Type |
| 400325-117 |
SCG353A043 SCG353A044 |
220VAC |
| 400325-107 |
110VAC |
| 400325-205 |
48VAC |
| 400325-201 |
24VAC |
| 400325-142 |
24VDC
|
Specifications:
1. Size : M6
2. Coil Insulation : Class F
3. Color : Black ( can be customized )
4. Inner Hole : Φ 10.6mm , High39mm
5. Normal voltage : DC24V
6. Connection Type : DIN43650
7. Applicability : Pulse valve series
8. Heavy duty long service life
|
|
DC24V=
|
DC48V=
|
AC24V=
|
AC48V=
|
AC115V=
|
AC230V=
|
|
CM-6
CM-6
CM6FT
CM6FB
|
234511-006
238511-106
400325-142
400325-242
|
400325-144
400325-244
|
400325-101
400325-201
|
400325-105
400325-205
|
400325-118
400325-218
|
238211-057
238211-157
400325-117
400325-217
|
|
CM-XX
CM-XX
CMXX-FT
CMXX-FB
CMXX-FF
CM12-FT
CM12-FB
|
238911-006
238911-106
400425-142
-
400425-342
400625-142
400625-242
|
400425-144
-
400425-344
400625-144
400625-244
|
400425-101
400425-201
-
400525-101
400525-201
|
400425-105
400425-205
-
400525-105
400525-205
|
400425-118
400425-218
-
400525-118
400525-218
|
238611-057
238611-157
400425-117
400425-217
-
400525-117
400525-217
|
Applications
The Pulse solenoid coil is a very important part of the pulse valve . Electromagnetic pulse valve ( also called diaphragm valve ) is a pulse jet bag filter cleaning system air "switch" Control pulse controller output signal control , bag- by-row ( room ) injection cleaning , so dust resistance remain within the set range , in order to ensure the processing power and dust collection efficiency .Z type pulse valve for the right angle , the angle between the import and export of 90 °, suitable for mounting the air bag and the link between the injection tube , air flow , providing cleaning gas pulses to meet the requirements . Y type is submerged pulse valve ( also known as embedded valve ) , it is mounted directly on the air bag has better flow characteristics .
Pressure loss decreased for the lower air pressure in the workplace .
Coil other parameter:
|
Insulation temperature class
|
A
|
E
|
B
|
F
|
H
|
|
Maximum allowable temperature/degree
|
105
|
120
|
130
|
155
|
180
|
|
Permissible temperature rise(K)
|
60
|
75
|
80
|
105
|
125
|
|
Performance reference temperature/degree
|
80
|
95
|
100
|
120
|
145
|
|
Thermal margin
|
5
|
5
|
10
|
10
|
15
|
|
Maximum ambient temperature/degree
|
40
|
40
|
40
|
40
|
40
|
Competitive Advantage:
|
Our product features
|
Our Services Guarantee
|
|
1) Good quality
|
1) Prompt respond (Reply with 24 hours)
|
|
2) Produce according to Customers’ instruction
|
2) Registration support
|
|
3) Competitive price
|
3) Free Samples (Customer pay for the delivery cost)
|
|
4) Professional Packaging
|
4) Photos/videos are available during production
|
|
5) None delay shipment
|
5) Loading inspection , and send loading photos
before shipment
|
FAQ
1. When your company establish?
FLY AUTOMATION Was established in 2010, we have been working in agrochemical field for about 26 years, we have a professional production of process, committed to providing customers with the most satisfactory service.
2. Are you a trader or manufacturer? Do you have factory?
We are a solenoid valve manufacturer, we have the ability of mass production . we have our own developing and designing team, which ensure our own technological and specific products for customers.
3. Where’s your factory located? Can we visit your factory?
Our company is in Xikou town,Fenghua city,Zhejiang Province, China,Which is near by Ningbo city,
Customers will be always welcomed to visit our company and our factories.Please contact us your schedule,we will arrange to pick up you and visit our factory.
4. How do you make the quality guarantee?
We have our own quality control center, we have advanced equipments for the inspections. We can guarantee every product will be tested after production.
5. Can you support the specific productions?
We can design and develop the products of customer's requirement, if you have the specific products, please send us a sample, we will develop it for you.
6. What's the transportation service?
Usually, we will be according your address, choose the fastest and cheapest way, the DHL,TNT,Fedex or China post express all can support.
