| Brand Name: | FESTO |
| Model Number: | LR-1/2-D-MIDI |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | USD 40-50 |
| Packaging Details: | Plastic bags, boxes, cartons, Pallets or As customer's requirement |
| Delivery Time: | 7-10 working Days |
| Payment Terms: | T/T, Western Union, MoneyGram Paypal |
| Supply Ability: | 500 PCS Per Week |
| Type No: | LR-1/2-D-MIDI | Brand: | FESTO |
|---|---|---|---|
| Part No: | 159581 | Product Weight: | 720 G |
| Size: | Midi | Series: | D |
| High Light: | Pneumatic System Festo Pressure Regulator,R-1/2-D-MIDI Pneumatic System Components,159581 Pneumatic System Components |
||

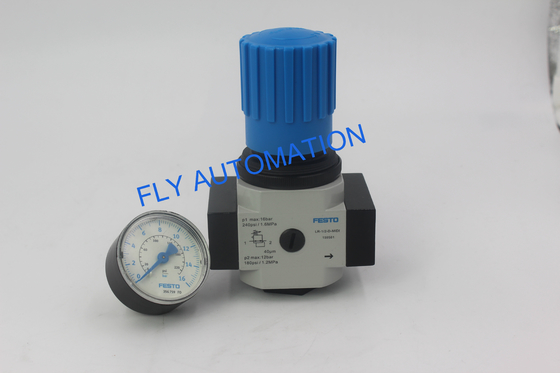

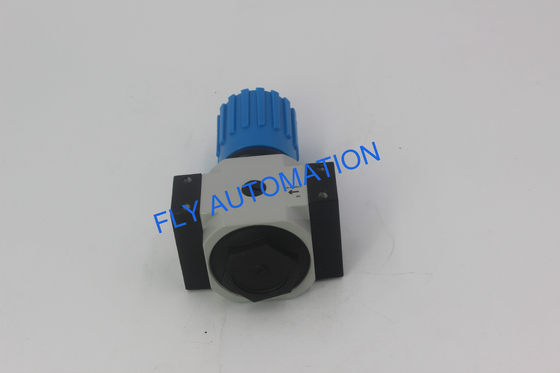

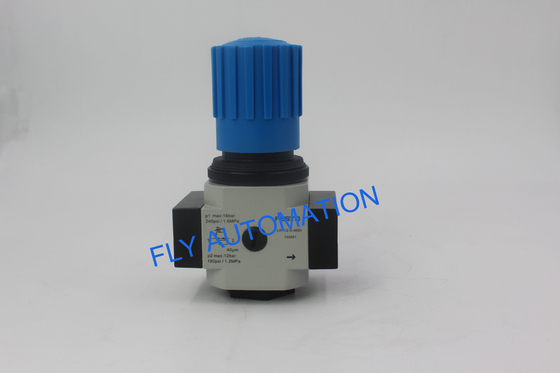

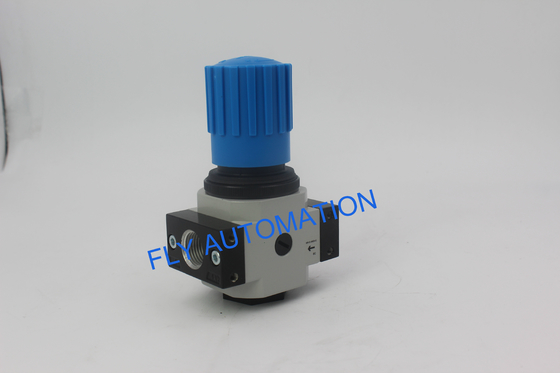

About product
1.Also suitable for front panel mounting.
2.Two pressure gauge connections for different installation options.
3.Good regulation characteristics with minimal pressure hysteresis.
4.High flow rate.
| Size | Midi |
| Series | D |
| Mounting position | optional |
| Design | Directly actuated diaphragm regulator |
| Symbol | 00991538 |
| Standard nominal flow rate | 3500 l/min |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| Media temperature | -10°C-60°C |
| Ambient temperature | -10°C-60°C |
| Product weight | 720 g |
| Pneumatic connection, port 1 | G1/2 |
| Pneumatic connection, port 2 | G1/2 |
| Note on materials | RoHS-compliant |
| Material sub-base | Die-cast zinc |
| Material seals | NBR |
| Material housing | Die-cast zinc |
