| Place of Origin: | China |
| Brand Name: | FESTO |

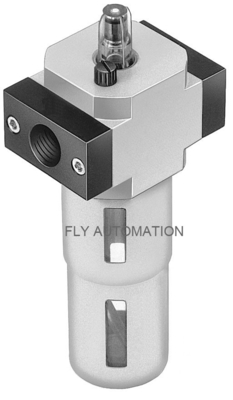

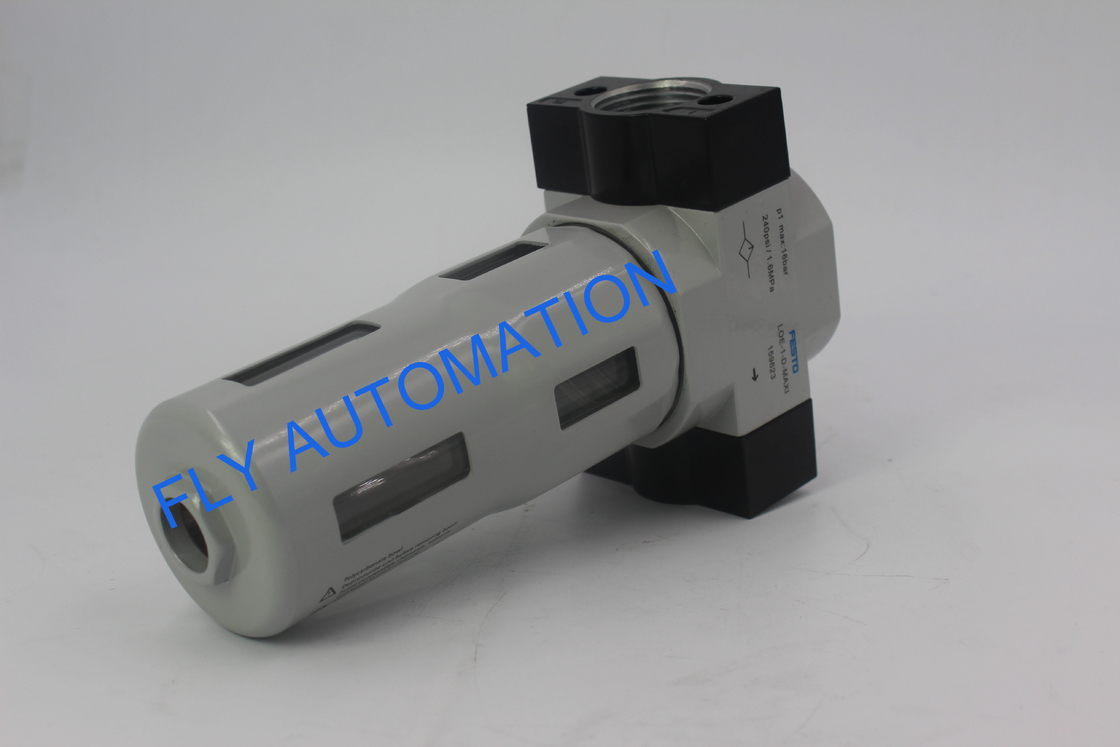

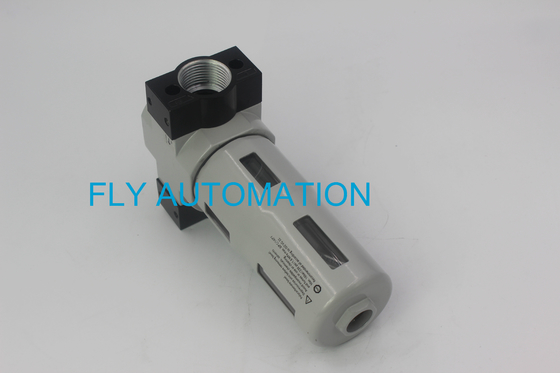

| Model Number: | LOE-3/4-D-MAXI |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD50-60 |
| Packaging Details: | Plastic bag, Carton |
| Delivery Time: | 7-10working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 800 pcs per month |
| Brand: | FESTO | Part No: | 159622 |
|---|---|---|---|
| Type: | LOE-3/4-D-MAXI | Max. Oil Capacity: | 190 Cm³ |
| Symbol: | '00991532 | Note On Materials: | RoHS-compliant |
| High Light: | Pneumatic System Festo Lubricator,LOE-3/4-D-MAXI Pneumatic System Components |
||
About product
1.High flow rate.
2.Sturdy metal housing.
3.Quick and easy oil top-up.
4.Transparent oiler bowl with metal bowl guard.
5.Proportional lubricator with precision oil metering.
6.Reduces wear on drive units subject to high loads.
Technical Data
| Size | Maxi |
| Design | Proportional standard mist lubricator |
| Max. oil capacity | 190 cm³ |
| Bowl guard | Metal bowl guard |
| Symbol | 00991532 |
| Standard nominal flow rate | 8400 l/min |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10°C-60°C |
| Media temperature | -10°C-60°C |
| Ambient temperature | -10°C-60°C |
| Product weight | 1100 g |
| Type of mounting | With accessories |
| Pneumatic connection, port 1 | G3/4 |
| Pneumatic connection, port 2 | G3/4 |
| Note on materials | RoHS-compliant |
| Material bowl | PC |
General technical data
There are many models . Please contact me!
