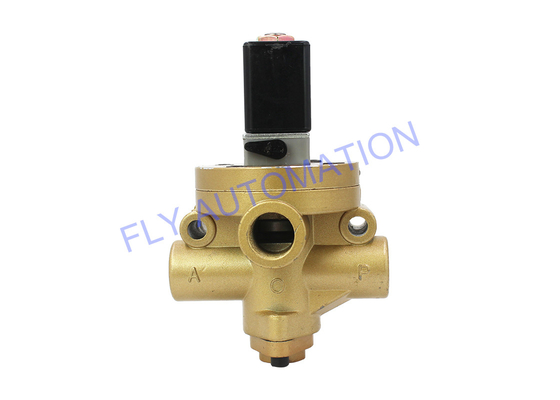

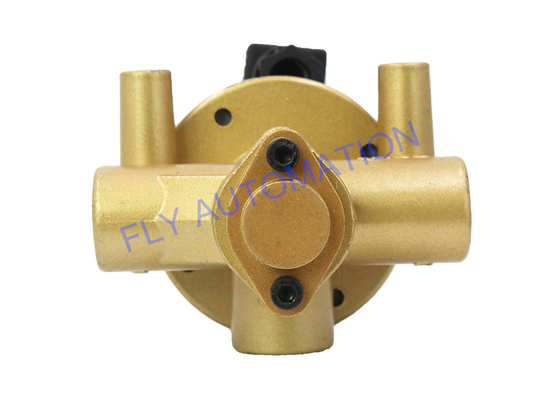

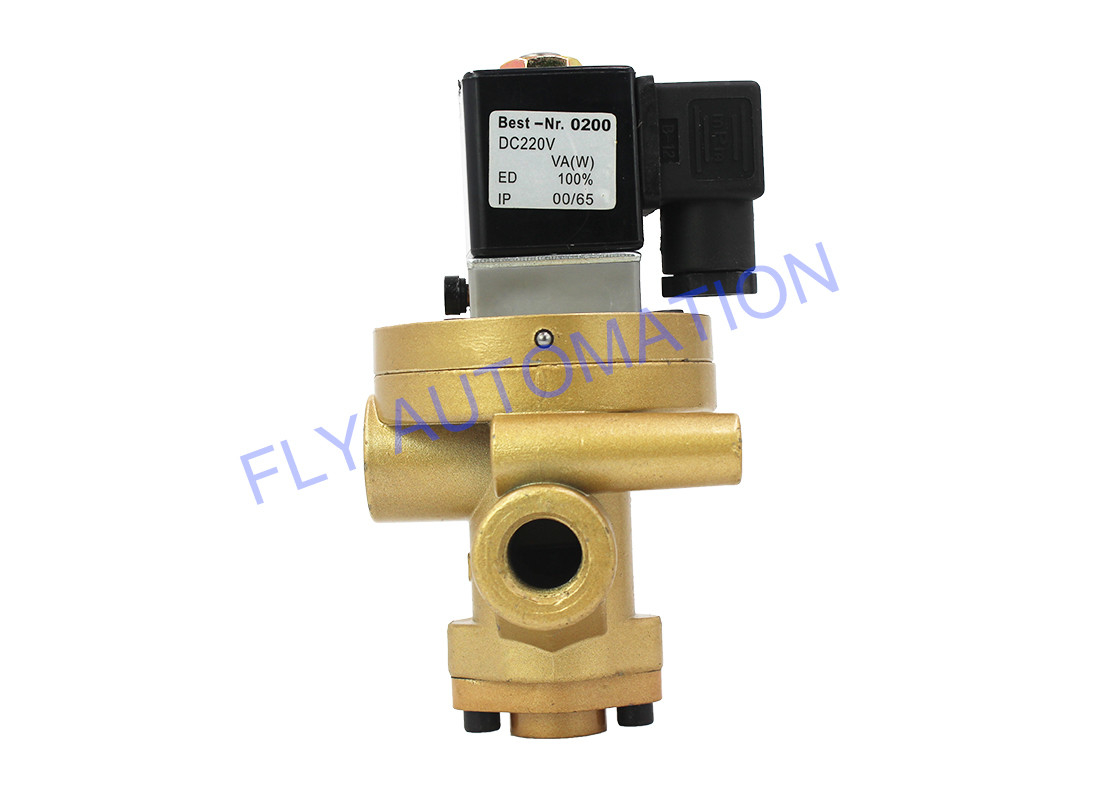

Pneumatic Solenoid Valve K23JD-10W 3/8" Yellow Old Cut-Off 3/2 Way

Model K23JD-08 K23JD-10 K23JD-15 K23JD-20 K23JD-25 K23JD-32 K23JD-40

Port Size mm 8 10 15 20 25 32 40

S mm' 20 40 60 110 190 300 400

Leakage Nml/min under 10 under 20 under 30

Change Time ms under 8 under 10 under 15

Switch Frequency Hz more than 8 more than 4 more than 3

Working Pressure Mpa 1

Voltage V AC:220, 110, 36; DC: 36, 24, 12 (+10%~-15%)

Working Temp °c

-10~55

Life more than 1.5 million times 0.5

Working Media The air clean and mixture of oil

Media Temp °c

-5~50





Describtion



1.Structure in sliding column mode: good tightness and sensitive reaction.



2.Internal hole adopts special processing technology which has little attrition friction low start pressure and long service life.



3. No need to add oilfor lubrication.



4.Affiliated manual devices are equipped to facilitate installation and debugging.



5.Several standard voltage grades are optional.



Model B C D E F G H M MG MF N

K23JD-8 96 78 73 17 16.5 9 45 39 G1/4"(M12x1.5) G1/4"(M16x1.5) 170

K23JD-10 G3/8"(M16x1.5) G1/2"(M20x1.5)

K23JD-15 G1/2"(M20x1.5) G1/2"(M20x1.5)

K23JD-20 113 89 82 24 21 9 52 38 G3/4"(M27x2) G1"(M33x2) 190

K23JD-25 G1"(M3x2) G1"(M33x2)

K23JD-32 165 121 118 37 37.5 13 75 46 G1 1/4"(M42x2) G1 1/2"(M48x2) 260

K23JD-40 G1 1/2"(M48x2) G1 1/2"(M48x2)
