| Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
 |
| Place of Origin: | China |
| Brand Name: | FESTO |
| Model Number: | MFH-3-1/4-S |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD80-100 |
| Packaging Details: | Plastic bag, Carton |
| Delivery Time: | 5-7working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 100 pcs per month |
| Type: | MFH-3-1/4-S | Part No: | 7959 |
|---|---|---|---|
| Brand: | FESTO | Weight: | 320 G |
| Material Housing: | Die-cast Aluminium | Note On Materials: | RoHS-compliant |
| High Light: | Festo Solenoid Valve MFH-3-1/4-S,Die Cast Aluminium Festo Solenoid Valves,7959 Pneumatic Solenoid Valves |
||

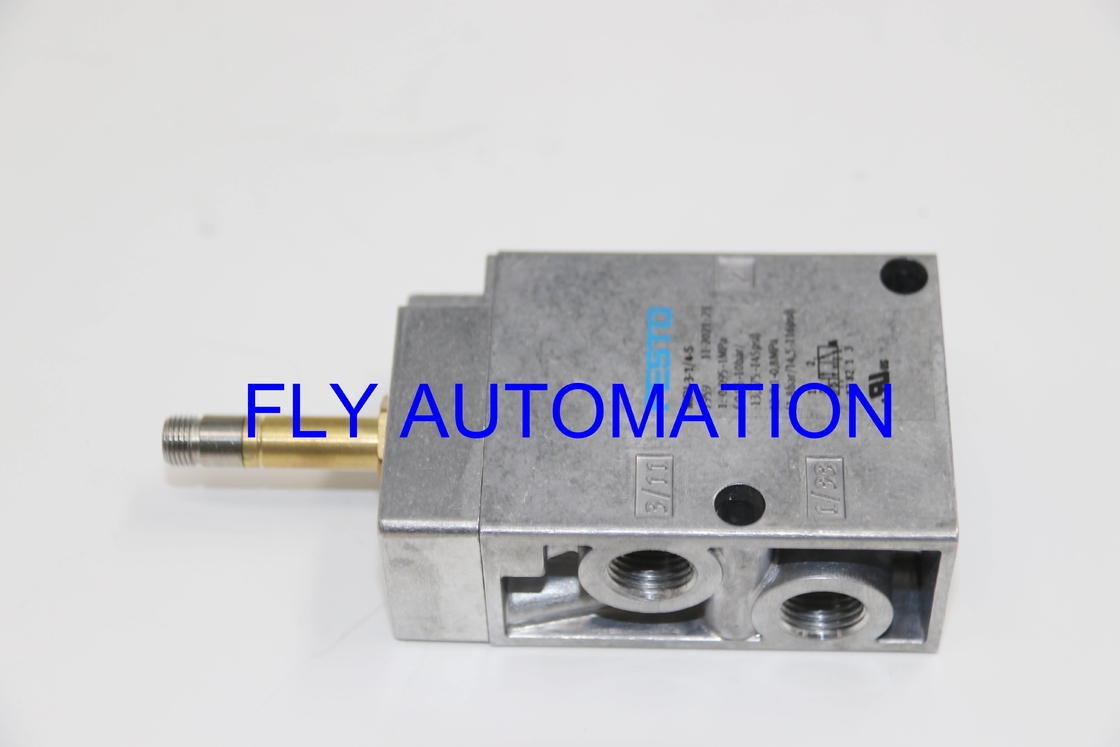

About product
1.These valves can be converted from one function to the other by rotating the seal under the cover.
2.This valve type can be used within a range of 0 to 0.8 MPa and also as MOFH (through flow when not actuated) with a separate pilot line.
3.Solenoid valve, with armature tube for F solenoid coil, single solenoid, normally closed.
Technical Data
| Valve function | 3/2-way, closed, monostable |
| Type of actuation | Electric |
| Construction width | 30.5 mm |
| Standard nominal flow rate | 800 l/min |
| pneumatic working port | G1/4 |
| Operating voltage | Via solenoid coil, must be ordered separately |
| Operating pressure | -0.095 MPa ... 1 MPa |
| Operating pressure | -0.95 bar ... 10 bar |
| Design | Poppet seat |
| Type of reset | Mechanical spring |
| Approval | c UL us - Recognized (OL) |
| Degree of protection | IP65 |
| Nominal size | 7 mm |
| Grid dimension | 32 mm |
| Exhaust-air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | optional |
| Manual override | Detenting |
| Type of piloting | Pilot actuated |
| Pilot air supply | External |
| Flow direction | Reversible |
| Symbol | 00992879 |
| lap | Underlap |
| Pilot pressure | 0.1 MPa ... 0.8 MPa |
| Pilot pressure | 1 bar ... 8 bar |
| Switching time off | 29 ms |
| Switching time on | 10 ms |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Product weight | 320 g |
| Electrical connection | Via F coil, to be ordered separately |
| Type of mounting | Either: On manifold rail With through-hole |
| Pilot exhaust port 82 | M5 |
| Pilot air port 12 | M5 |
| Pneumatic connection, port 1 | G1/4 |
| Pneumatic connection, port 2 | G1/4 |
| Pneumatic connection, port 3 | G1/4 |
| Note on materials | RoHS-compliant |
| Material seals | NBR |
| Material housing | Die-cast aluminium |

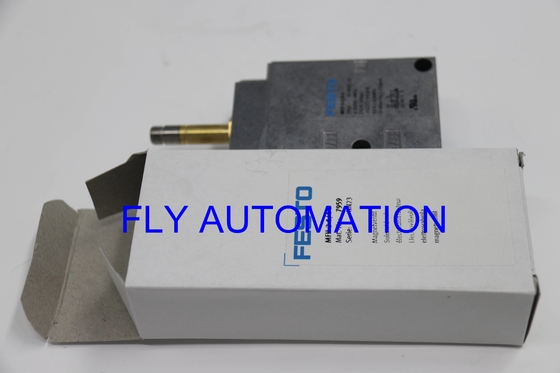

Product package
There are many models. Please hurry to me!
Contact Person: Jaren
Tel: 0086-15257858856
Fax: 86-152-57858856
