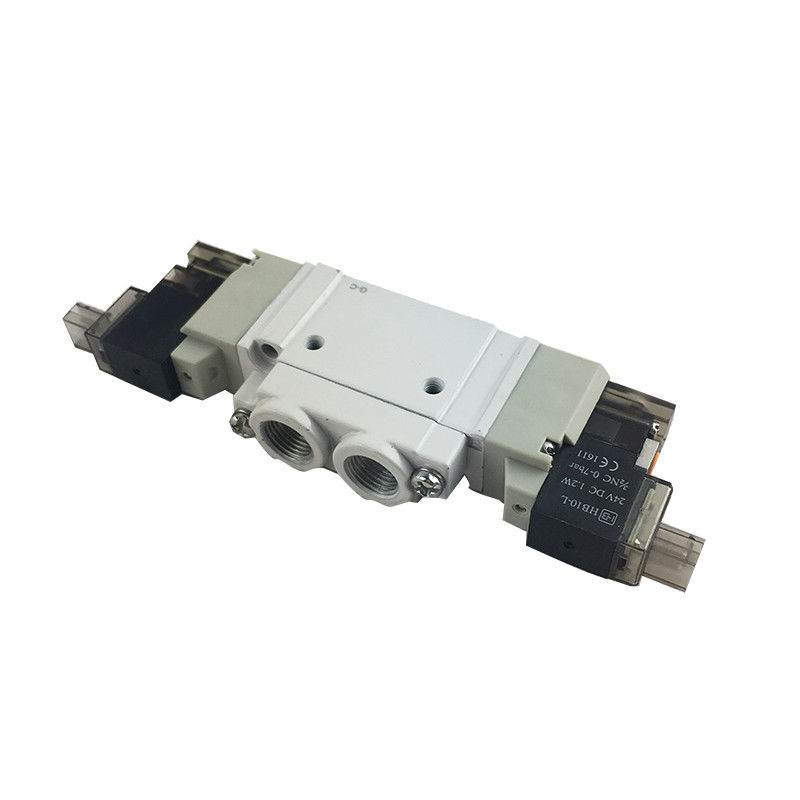

Solenoid valve 24vDC SY5220-01 Gas pipeline valve high quality valve solenoid
Description
Solenoid valves are electromagnetically controlled industrial equipment. They are the basic components for controlling fluids. They are actuators and are not limited to hydraulic and pneumatic. Used in industrial control systems to adjust the direction, flow, speed and other parameters of the media. The solenoid valve can be used with different circuits to achieve the desired control, while the precision and flexibility of the control can be guaranteed.
Function
1.External leakage is blocked, internal leakage is easy to control, and safety is safe to use.
2.Fast action, low power and light weight.
3.The solenoid valve has a closed cavity, and there are through holes at different positions, each hole is connected with a different oil pipe, the piston is in the middle of the cavity, and two electromagnets are on both sides.
4. High efficiency, high quality products.
Feature
| Model code |
SY5220-01 |
| Material |
Aluminum |
| Working medium |
Compressed Air |
| Weight |
0.6kgs |
| Voltage |
Suitable for all kinds of voltage |
| Control mode |
normally open /normally closed |
Safety:
1. Corrosive medium: Plastic King solenoid valve and all stainless steel should be selected; for strongly corrosive medium, isolation diaphragm type must be selected. For neutral medium, the solenoid valve with copper alloy as the valve shell material should also be selected, otherwise, rust chips often fall off in the valve shell, especially in the case of infrequent action. The valve for ammonia shall not be made of copper.
2. Explosive environment: corresponding explosion-proof products must be selected, and waterproof and dust-proof products shall be selected for outdoor installation or dust-proof occasions.
3. The nominal pressure of the solenoid valve shall exceed the maximum working pressure in the pipe.
Dielectric properties
1) different types of solenoid valves shall be selected for gas, liquid or mixed state;
2) products with different specifications of medium temperature, or the coil will be burnt out, and the seal will be aged, which will seriously affect the service life;
3) medium viscosity, usually below 50cst. If it exceeds this value, multi-functional solenoid valve shall be used when the diameter is more than 15mm; high viscosity solenoid valve shall be used when the diameter is less than 15mm.
4) when the cleanliness of the medium is not high, the backwash filter valve shall be installed in front of the solenoid valve. When the pressure is low, the direct diaphragm solenoid valve can be selected;
5) if the medium is in directional circulation and backflow is not allowed, two-way circulation is required;
6) the medium temperature shall be within the allowable range of the solenoid valve.
