| Place of Origin: | China |
| Brand Name: | FESTO |

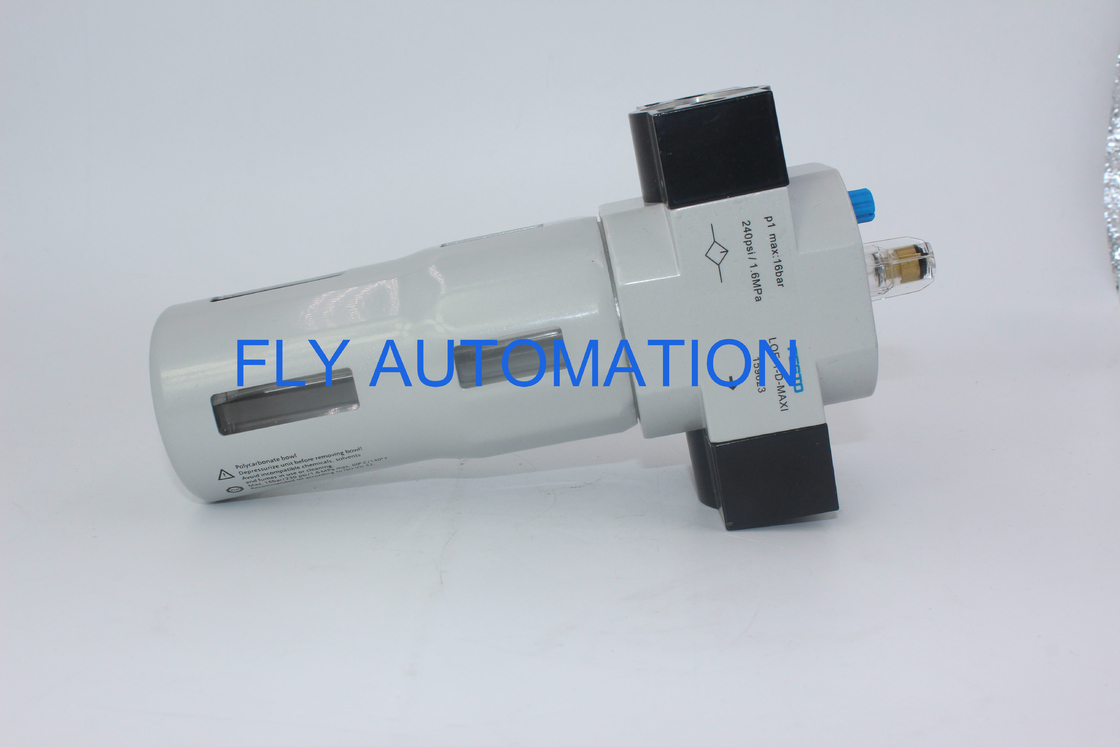

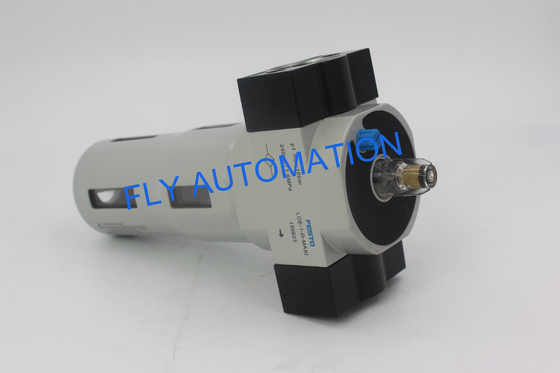

| Model Number: | LOE-1-D-MAXI |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | EXW USD40-50 |
| Packaging Details: | plastic bag, carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 7000 pcs per week |
| Specifications: | LOE-1-D-MAXI | Order No: | 159623 |
|---|---|---|---|
| Brand: | FESTO | Max. Oil Capacity: | 190 Cm³ |
| Symbol: | '00991532 | Material Bowl: | PC |
| High Light: | PC Material Festo Lubricator,Festo Lubricator LOE-1-D-MAXI |
||
About product
1.The proportional lubricator adds a precisely adjustable amount of oil to the compressed air.
2.The pressure drop that occurs when air flows through a Venturi nozzle is used to feed oil from the container to the drip cap.
3.From here, the oil drips into the air duct directly behind the proportional valve, where it is atomised.
4.The amount of oil mist is proportional to the compressed air flow rate.
Product Technical Data
| Size | Maxi |
| Series | D |
| Design | Proportional standard mist lubricator |
| Max. oil capacity | 190 cm³ |
| Bowl guard | Metal bowl guard |
| Symbol | 00991532 |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10°C-60°C |
| Media temperature | -10°C-60°C |
| Ambient temperature | -10°C-60°C |
| Product weight | 1200 g |
| Type of mounting | With accessories |
| Pneumatic connection, port 1 | G1 |
| Pneumatic connection, port 2 | G1 |
| Note on materials | RoHS-compliant |
| Material bowl | PC |
There are so many models.Welcome to enquiry !
