| Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
 |
| Place of Origin: | China |
| Brand Name: | FESTO |
| Model Number: | QS-4 |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | EXW USD1-2 |
| Packaging Details: | plastic bag, carton |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000 pcs per week |
| Specifications: | QS-4 | Brand: | FESTO |
|---|---|---|---|
| Order No: | 153031 | Weight: | 5g |
| LABS (PWIS) Conformity: | VDMA24364-B1/B2-L | Pneumatic Connection: | For Tubing Outer Diameter Of 4 Mm |

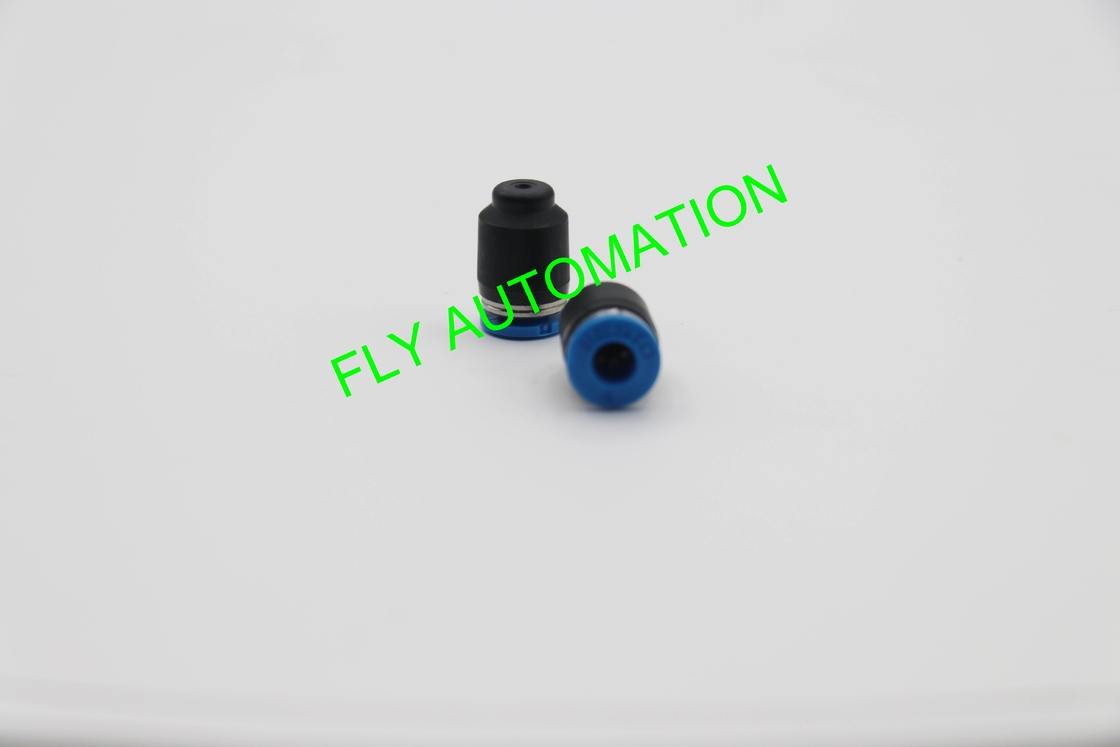

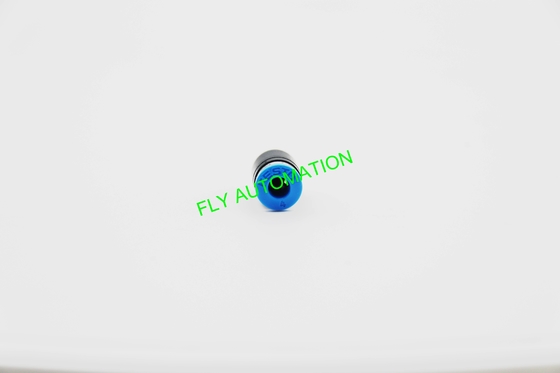

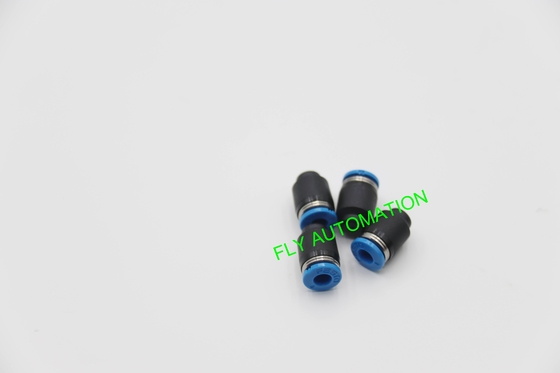

| High Light: | QS-4 Push In Connector,153031 Pneumatic Tube Fittings,NBR Seal Push In Connector |
||
About product
1.Wide selection of push-in fittings for pneumatic applications with a temperature range up to 80°C and a pressure range up to 14 bar.
2.Joints with different thread specifications are often used between pipelines to complete the connection.
Product Technical Data
| Size | Standard |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Product weight | 4.7 g |
| Pneumatic connection, port 1 | For tubing outer diameter of 4 mm |
| Pneumatic connection, port 2 | For tubing outside diameter of 4 mm |
| Colour of release ring | Blue |
| Note on materials | RoHS-compliant |
| Material housing | PBT |
| Material release ring | POM |
| Material tubing seal | NBR |
| Material tubing clamp component | High-alloy stainless steel |
General technical data
There are many specifications of connectors, price and delivery time. Welcome to enquiry.
Contact Person: Jaren
Tel: 0086-15257858856
Fax: 86-152-57858856
